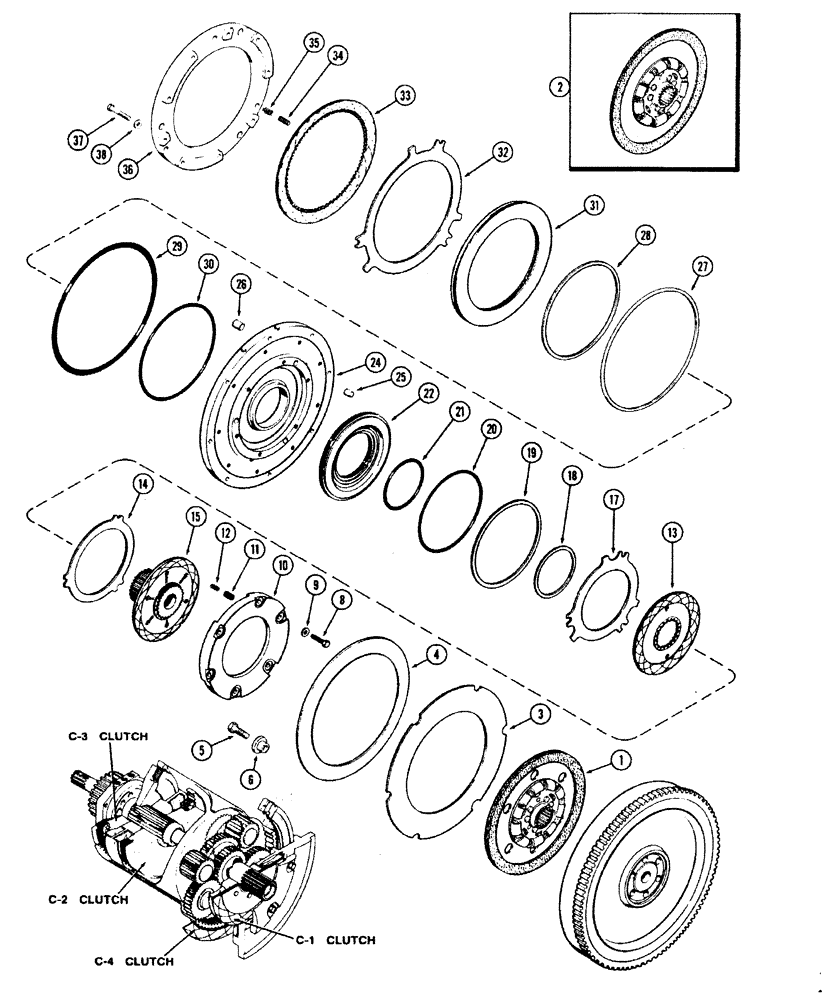

Запчасти Case IH 1070 (0238) - CLUTCH, C-1 AND C-4, POWER SHIFT, 1ST USED TRANSMISSION SERIAL NUMBER 10063614 (06) - POWER TRAIN

1

A153079

SWITCH

PLATE ASSY. - 12" driven member, torque limiter w/1-7/8" I.D. spline (1st used trac. ser. no. 8725656) (Replaces A65422)

1шт.

If the clutch disc shows signs of slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced

1шт.

2

A58388

PLATE

ASSY. - 12" driven member, torque limiter w/1-1/8" I.D. spline (used prior to trac. ser. no. 8725656)

1шт.

3

A138704

PLATE

- pressure, torque limiter, (Replaces A58036)

1шт.

If the clutch disc shows signs of slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced

1шт.

4

A61000

SPRING

- Belleville, torque limiter

1шт.

If the clutch disc shows signs of slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced

1шт.

5

113-401

BOLT

- 1/2 x 1-3/4" N.C. hex

6шт.

6

A151076

RETAINER

- clutch spring, torque limiter (Replaces A59133 & A140214)

6шт.

8

26-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 8

- 3/8 x 1-5/8" N.C. hex

6шт.

9

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 13/32 x 13/16 x 5/64" (Replaces A59025)

6шт.

10

A150128

PLATE

- reaction

1шт.

11

A62606

SPRING

- return, 9/16" dia., 1-3/32" free length (C-1 clutch)

3шт.

12

A62607

SPRING

- return, 23/64" dia., 1-3/32" free length (C-1 clutch)

3шт.

13

A142536

PLATE

- clutch, sintered (Replaces A62613, A75971 & A77131)

1шт.

14

A65525

PLATE

- (C-1 clutch) w/3 ears (Replaces A62610)

1шт.

15

A150136

GEAR

ASSY. - sun (Incl. plate & snap rings) (Replaces A62858, A65419 & A144154)

1шт.

17

A65524

PLATE

- (C-1 clutch) w/6 ears (Replaces A58392)

1шт.

18

A146683

RING

SEAL - internal (C-1 clutch) (See A46286 kit, Fig. 254)

1шт.

19

A146682

RING

SEAL - external (C-1 clutch) (See A46286 kit, Fig. 254)

1шт.

20

A150753

O-RING,7.84" ID x 0.107"

- piston O.D. (C-1 clutch) 7-3/4 x 7-1/4 x 3/32" (See A46286 kit, Fig. 254)

1шт.

21

A150754

O-RING,4.718" ID x 0.107"

- piston I.D. (C-1 clutch) 4-11/16 x 4-1/4 x 3/32" (See A46286 kit, Fig. 254)

1шт.

22

A146670

PISTON

- (C-1 clutch) (Replaces A58380)

1шт.

24

A62608

CARRIER

ASSY. - piston (C-1 & C-4 clutch), Includes: Ref. 25 and 26

1шт.

25

A62609

PIN,12.45mm OD x 27.43mm L

- roll, reaction plate (31/64 x 1-5/64") (C-1 clutch)

3шт.

26

A58059

PIN

- roll, reaction plate (31/64 x 3/4") (C-4 clutch)

3шт.

27

A146680

RING

SEAL - external (C-4 clutch) (See A46286 kit, Fig. 254)

1шт.

28

A146681

SEAL

SEAL - internal (C-4 clutch) (See A46286 kit, Fig. 254)

1шт.

29

A150751

O-RING,12.09" ID x 0.107"

- piston O.D. (C-4) 12-3/32 x 12-1/4 x 3/32" (See A46286 kit, Fig. 254)

1шт.

30

A150752

O-RING,9.206" ID x 0.107" OD

- piston I.D. (C-4) 9-3/32 x 9-1/4 x 3/32" (See A46286 kit, Fig. 254)

1шт.

31

A146671

PISTON

- (C-4 clutch)

1шт.

32

A58056

PLATE

- steel (C-4 clutch)

1шт.

3

A67128

PLATE

- sintered (C-4 clutch) (Replaces A62563)

1шт.

34

A60596

SPRING

- return, 23/64" dia., 3/4" free length (C-4 clutch)

3шт.

35

A58391

SPRING

- return, 9/16" dia., 3/4" free length (C-4 clutch)

3шт.

36

A58394

PLATE

- reaction (C-4 clutch)

1шт.

37

113-244

X

BOLT - 3/8 x 2-1/2" N.C. hex

9шт.

38

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 13/32 x 13/16 x 5/64" (Replaces A59025)

9шт.
