Запчасти Case IH 1070 (0234) - CLUTCH CONTROLS, POWER SHIFT (06) - POWER TRAIN

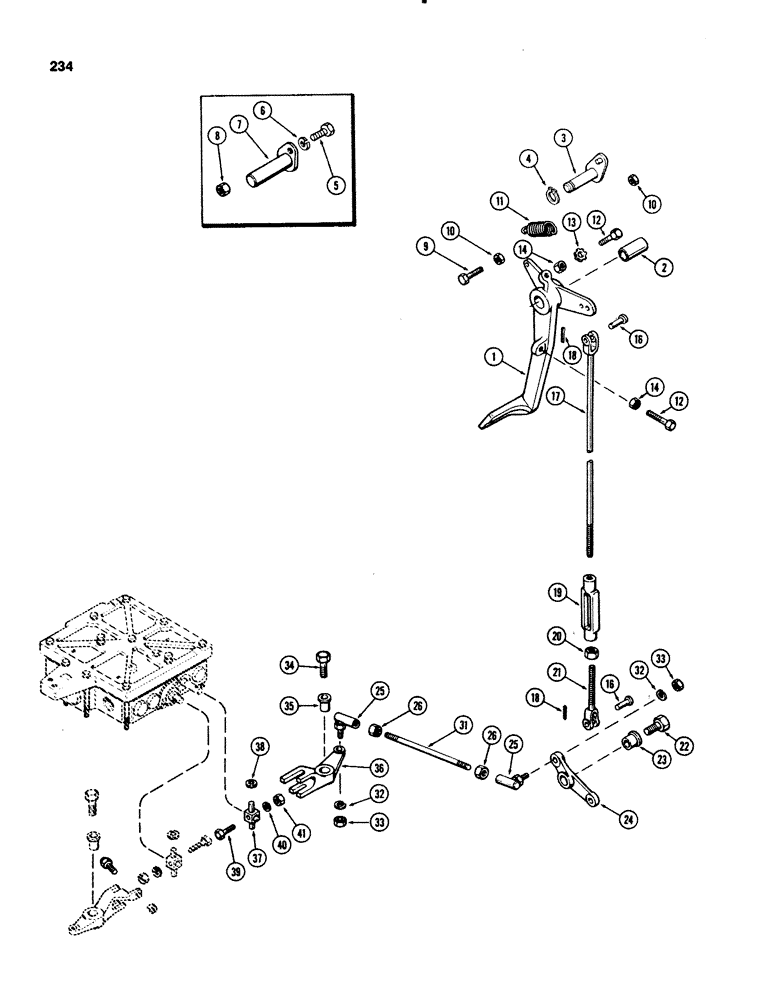

Схема запчастей Case IH 1070 - (0234) - CLUTCH CONTROLS, POWER SHIFT (06) - POWER TRAIN
26
6
5
37
24
34
23
18
32
14
12
25
13
36
25
31
3
38
16
32
12
33
39
17
14
40
10
1
9
16
20
26
33
10
2
19
41
35
7
21
22
11
4
8
18

Артикул

Название

Примечание

Количество

1

A60300

PEDAL

ASSY. - foot clutch, Includes: Ref. 2

1шт.

2

A59475

BUSHING

- clutch pedal

1шт.

3

A143472

SHAFT

- pivot, clutch pedal

1шт.

4

A33531

SNAP RING,#75, Ext

Ring, Snap, , pivot shaft #75, Ext

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

6

92-5

LOCK WASHER,5/16"

1шт.

7

A60305

SHAFT

- pivot, foot clutch pedal (Order 1-A143472 & 1-A33531)

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

10

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

2шт.

11

A137396

SPRING

- tension, clutch return (Replaces A63361)

1шт.

12

A59472

BOLT

- stop, clutch pedal

2шт.

13

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

14

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex., jam

2шт.

16

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Upper & lower links 3/8" x 1.060"

2шт.

17

A60310

LINK

- upper, clutch adjusting

1шт.

18

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

19

A60303

TURNBUCKLE

- clutch adjusting links, 3/8"

1шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

21

A60313

LINK

- lower, clutch adjusting

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

23

A59772

BUSHING

- clutch operating lever

1шт.

24

A59177

LEVER

- clutch operating

1шт.

25

A60307

JOINT

BALL JOINT - clutch rod connecting

2шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.C. hex., jam

2шт.

31

A60304

ROD

- clutch, Serial Range: lever-spool

1шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.C. hex

2шт.

34

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

35

A59772

BUSHING

- spool lever

1шт.

36

A60308

LEVER

- clutch spool

1шт.

37

A59150

LINK

- clutch spool

1шт.

38

A59773

RING

- retaining, spool link

1шт.

39

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

41

25-104

NUT,1/4"-20, G5

1шт.

Выбрано товаров: 36
