Запчасти Case IH 1070 (0230) - FRONT END WEIGHT ADAPTER (05) - STEERING

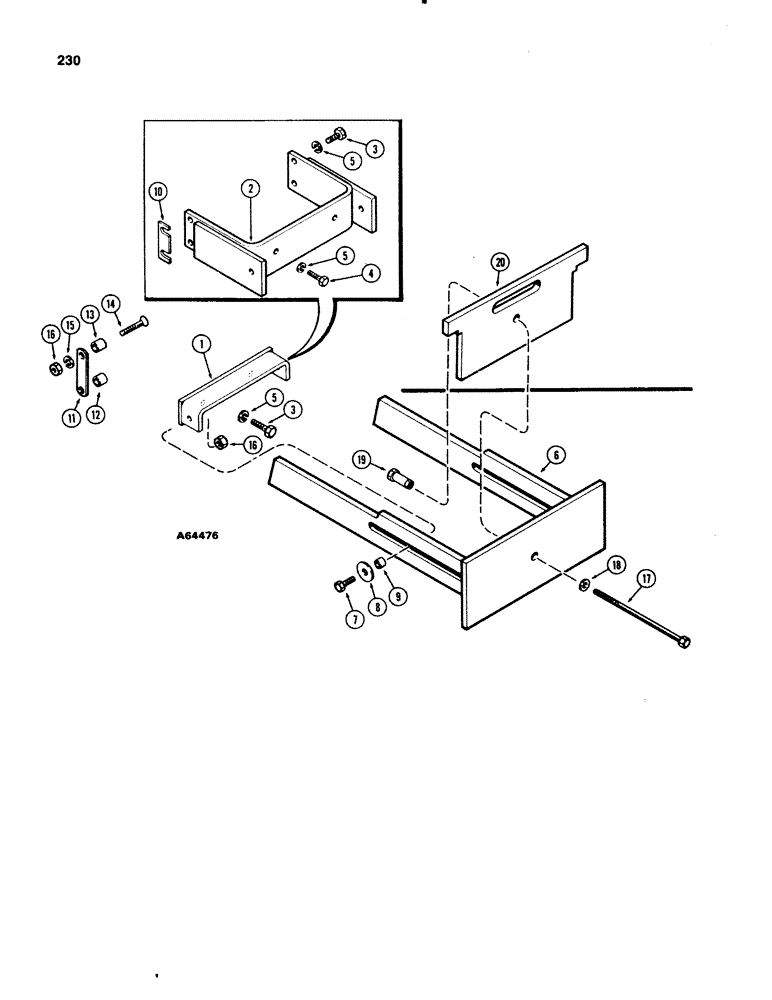

Схема запчастей Case IH 1070 - (0230) - FRONT END WEIGHT ADAPTER (05) - STEERING
16
13
5
7
14
4
2
1
5
3
3
16
6
5
18
9
11
20
12
8
19
15
17
10

Артикул

Название

Примечание

Количество

A64476

ADAPTER KIT - front end wrapper (Machine Item), Includes: Ref. 1 - 19

1шт.

1

A64944

BRACE

FRAME - weight adapter (Replaces A64475)

1шт.

2

A64475

FRAME

- weight adapter (Order A64944)

1шт.

3

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

4

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

6

A61331

FRAME - weight carrier

1шт.

7

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4 x 2-3/4" NC hex

2шт.

8

A61334

WASHER - step, (17/32 x 1-1/2 x 1/4")

2шт.

9

A61567

SPACER

- frame roller, (13/16 x 1-1/8 x 13/16") (Replaces A62109)

2шт.

10

A62597

SHIM - adapter (Used w/A64475 only)

1шт.

11

A61336

STRAP

- weight frame clamp

2шт.

12

A61567

SPACER

- strap, lower (13/16 x 1-1/8 x 13/16")

2шт.

13

A61566

SPACER - strap, upper (13/16 x 1-1/8 x 1-9/16")

2шт.

14

118-505

PLOW BOLT,3/4"-10 x 4", G5

BOLT - 3/4 x 4" NC, plow head

4шт.

15

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

16

25-1012

NUT,3/4"-10, G5

6шт.

17

A61342

BOLT - 1/2 x 5" NC hex (for 1 thru 7 weights)

1шт.

17

A61343

BOLT - 1/2 x 12" NC hex (for 8 thru 14 weights)

1шт.

18

A61341

WASHER

- 17/32 x 1-1/2 x 1/4"

1шт.

19

A61338

NUT

- tube, weight bolt

1шт.

20

A61345

WEIGHT - front end (75 lbs each) (Machine Item)

1шт.

Выбрано товаров: 22
