Запчасти Case IH 1070 (0224) - FRONT WHEELS, WITH 8 BOLT HUB (05) - STEERING

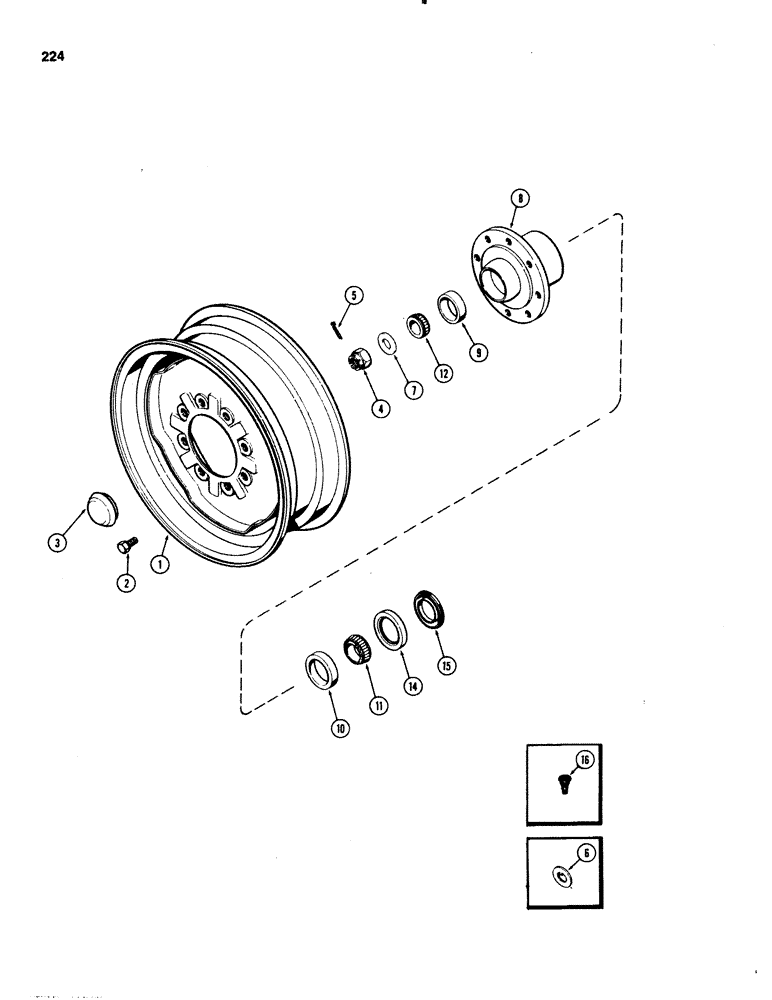

Схема запчастей Case IH 1070 - (0224) - FRONT WHEELS, WITH 8 BOLT HUB (05) - STEERING
16
6
11
8
7
10
4
3
1
15
5
2
14
12
9

Артикул

Название

Примечание

Количество

1

A61574

WHEEL

- front, 1-13/15" offset (takes 9.50 x 20 tire) (Replaces A60015)

2шт.

2

A62567

WHEEL BOLT

BOLT - 5/8" - 18 x 1-3/8" special

16шт.

3

A29425

CAP

- hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - 1-1/8" NF hex, slotted

2шт.

5

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

6

A26789

BEARING WASHER

WASHER - spindle (w/tongue) (for spindle w/slot)

2шт.

7

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- plain, spindle

2шт.

8

A51157

HUB

- front wheel

2шт.

9

A27631

CUP

- outer bearing (2-7/8" OD)

2шт.

10

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing (3-17/64" OD)

2шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing (1-3/4" ID)

2шт.

12

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing (1-3/8" ID)

2шт.

A57250

OIL SEAL

KIT - oil seal, Includes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

SEAL - oil, outer (Order A57250)

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - oil, inner (Order A57250)

1шт.

16

A38261

VALVE

- rim, tubeless tire

1шт.

Выбрано товаров: 16
