Запчасти Case IH 1070 (0220) - FRONT AXLE TIE RODS, 53 INCH TO 73 INCH TREAD, USED PRIOR TO 8693001 (05) - STEERING

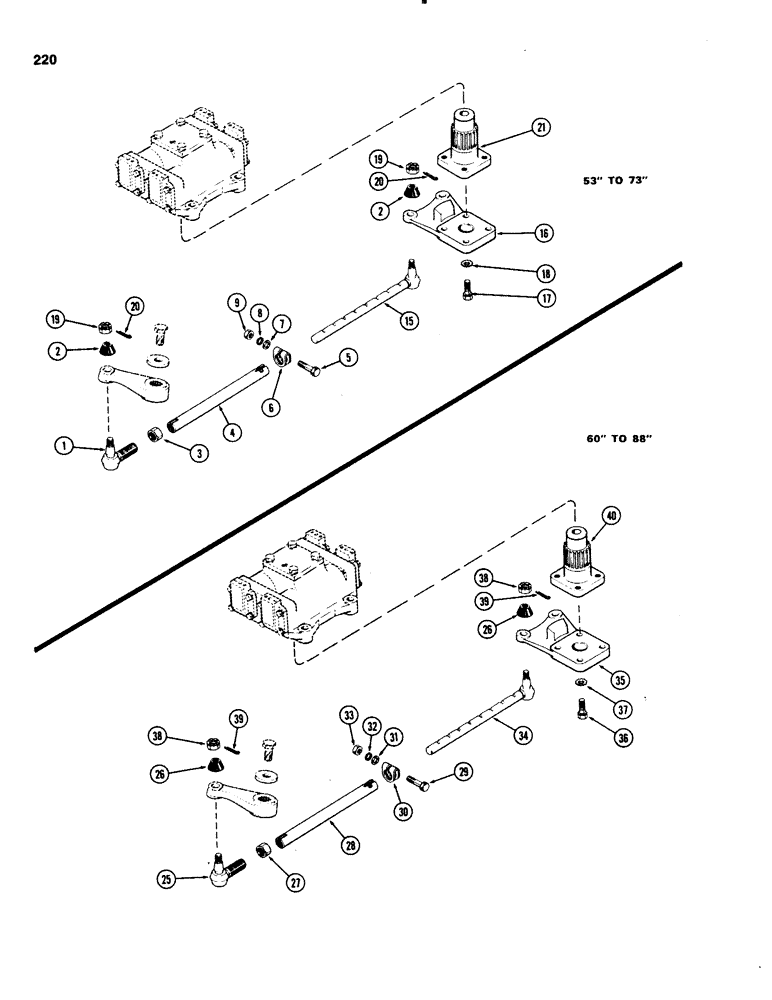

Схема запчастей Case IH 1070 - (0220) - FRONT AXLE TIE RODS, 53 INCH TO 73 INCH TREAD, USED PRIOR TO 8693001 (05) - STEERING
19
20
8
33
2
26
38
27
3
20
37
4
26
16
40
21
15
5
29
19
36
35
39
1
9
7
39
26
6
30
31
17
2
18
25
34
38
32

Артикул

Название

Примечание

Количество

1

A41512

ROD

END - tie rod (Order A44762)

2шт.

2

A41515

SEAL

- end, tie rod

4шт.

3

A41511

NUT

- jam, 1" - 16 RH thread

2шт.

4

A59657

TUBE

- tie rod (14-11/16" long) (53" to 73" tread)

2шт.

5

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" NC hex

2шт.

6

A41561

CLAMP

- tie rod

2шт.

7

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

2шт.

15

A59656

ROD

- tie (6 notches) (53" to 73" tread)

2шт.

16

A59652

ARM

- center steering

1шт.

17

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

PIN - cotter, 1/8 x 1-1/8"

4шт.

18

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

19

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" NF hex, slotted

4шт.

20

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.

21

REF

INSTRUCTION

SPINDLE - upper (Part of actuator Fig. 206)

1шт.

25

A41512

ROD

END - tie rod (Order A44762) 60 INCH TO 88 INCH TREAD

2шт.

26

A41515

SEAL

- end, tie rod 60 INCH TO 88 INCH TREAD

4шт.

27

A41511

NUT

- 1" - 16" RH thread, jam 60 INCH TO 88 INCH TREAD

2шт.

28

A59659

TUBE

- tie rod (18-3/8" long) (60" to 88" tread)

2шт.

29

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" NC hex 60 INCH TO 88 INCH TREAD

2шт.

30

A41561

CLAMP

- tie rod 60 INCH TO 88 INCH TREAD

2шт.

31

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64"), 60" to 88" tread 1/2"

2шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 60" to 88" Tread 1/2"

2шт.

33

25-108

NUT,1/2"-13, G5

- 1/2" NC hex 60 INCH TO 88 INCH TREAD

2шт.

34

A143028

ROD

- tie (8 notches) (60" to 88" tread) (Replaces A59658 & A45380)

2шт.

35

A59652

ARM

- center steering 60 INCH TO 88 INCH TREAD

1шт.

36

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

60" to 88" tread Hex, 5/8"-18 x 1 3/4", G5

4шт.

37

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8", 60" to 88" tread

4шт.

38

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" NF hex, slotted 60 INCH TO 88 INCH TREAD

4шт.

39

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), (60" to 88" tread) 1/8" x 1 1/8"

4шт.

40

REF

INSTRUCTION

SPINDLE - upper (Part of actuator Fig. 206) 60 INCH TO 88 INCH TREAD

1шт.

Выбрано товаров: 32
