Запчасти Case IH 1070 (0218) - FRONT AXLE TIE RODS, 53" TO 73" TREAD, 1ST USED TRACTOR SERIAL NUMBER 8693001 (05) - STEERING

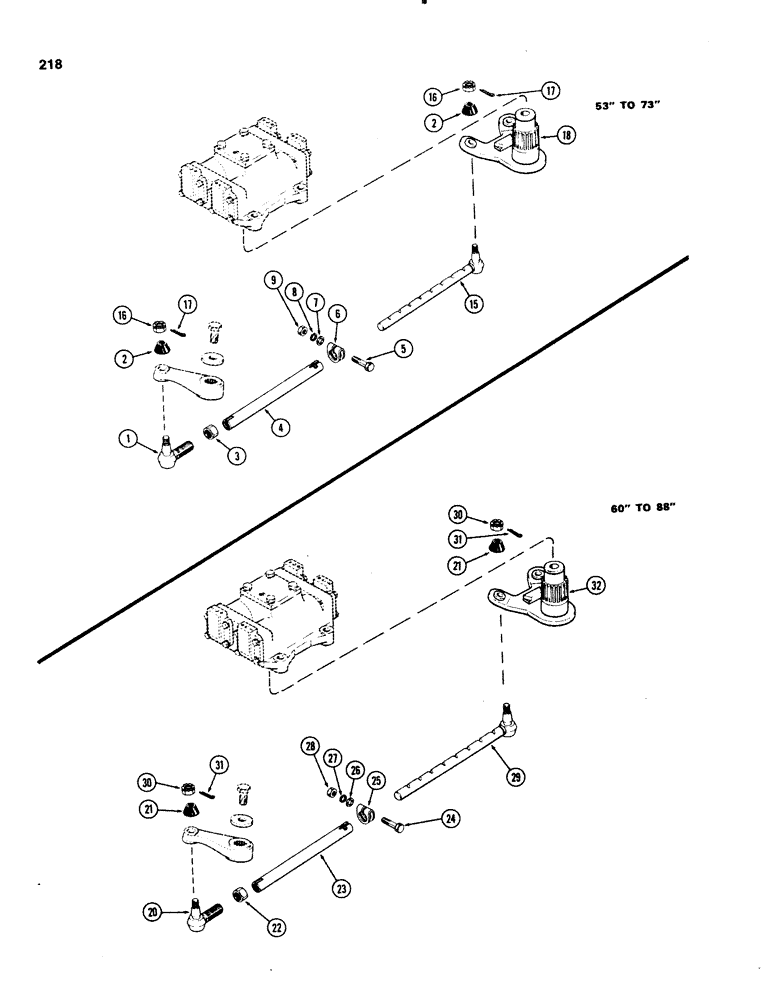

Схема запчастей Case IH 1070 - (0218) - FRONT AXLE TIE RODS, 53" TO 73" TREAD, 1ST USED TRACTOR SERIAL NUMBER 8693001 (05) - STEERING
23
17
5
26
24
2
25
8
17
21
30
32
31
15
16
30
28
20
22
7
31
16
21
18
4
27
3
2
6
29
1
9

Артикул

Название

Примечание

Количество

1

A44762

ROD

END - tie rod (Replaces A41512)

2шт.

2

A45102

BOOT

SEAL - end, tie rod (Replaces A41515)

4шт.

3

A41511

NUT

- 1" - 16 R.H. thread, jam

2шт.

4

A59657

TUBE

- tie rod (14-11/16" long) (53" to 73" tread)

2шт.

5

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex

2шт.

6

A41561

CLAMP

- tie rod

2шт.

7

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

15

A59656

ROD

- tie (6 notches) (53" to 73" tread)

2шт.

16

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex., sltd

4шт.

17

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.

18

A64507

STEERING ARM

ARM - center steering (Part of actuator Fig. 206)

1шт.

20

A44762

ROD

END - tie rod (Replaces A41512) 60'' TO 88'' TREAD

2шт.

21

A45102

BOOT

SEAL - end, tie rod (Replaces A41515) 60'' TO 88'' TREAD

4шт.

22

A41511

NUT

- 1" - 16 R.H. thread, jam 60'' TO 88'' TREAD

2шт.

23

A59659

TUBE

-tie rod (18-3/8" long) (60" to 88" tread)

2шт.

24

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex 60'' TO 88'' TREAD

2шт.

25

A41561

CLAMP

- tie rod 60'' TO 88'' TREAD

2шт.

26

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64"), 60" to 88" tread 1/2"

2шт.

27

92-8

LOCK WASHER,1/2"

60'' TO 88'' tread 1/2"

2шт.

28

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex 60'' TO 88'' TREAD

2шт.

29

A143028

ROD

- tie (8 notches) (60" to 88" tread) (Replaces A59658 & A45380)

2шт.

30

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex., sltd 60'' TO 88'' TREAD

4шт.

31

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), (60" to 88" tread) 1/8" x 1 1/8"

4шт.

32

A64507

STEERING ARM

ARM - center steering (Part of actuator Fig. 206) 60'' TO 88'' TREAD

1шт.

Выбрано товаров: 26
