Запчасти Case IH 1070 (0201A) - A60208 STEERING ACTUATOR, WITH DUAL FRONT WHEELS, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (05) - STEERING

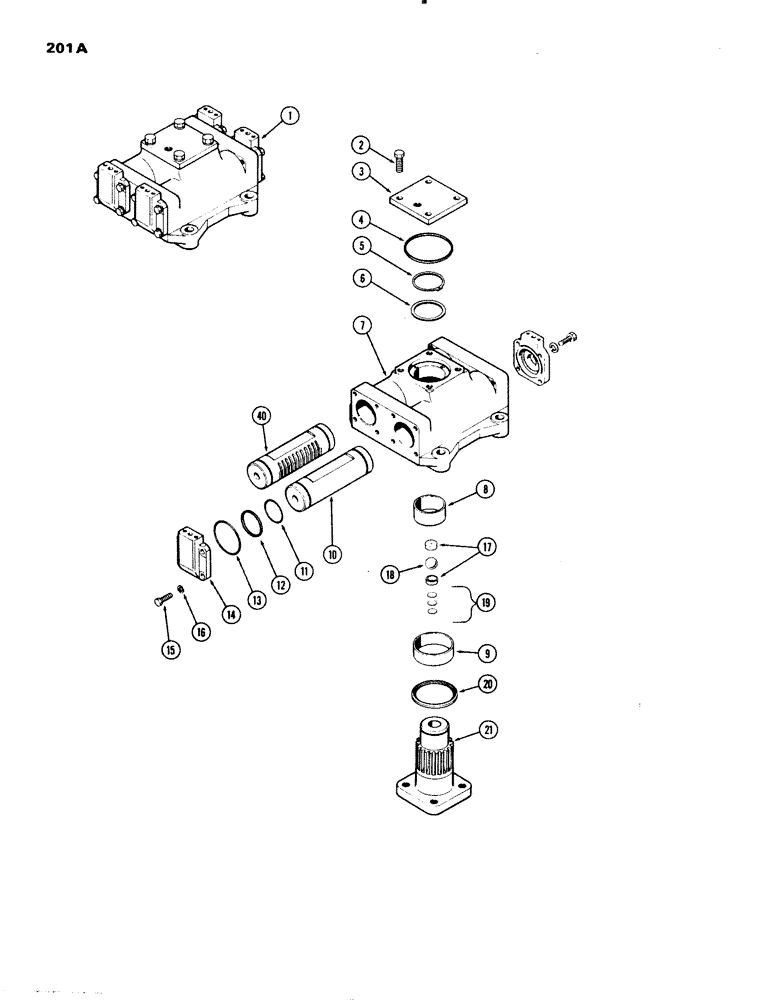

Схема запчастей Case IH 1070 - (0201A) - A60208 STEERING ACTUATOR, WITH DUAL FRONT WHEELS, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (05) - STEERING
1
17
7
14
5
11
2
3
9
13
15
10
4
18
40
16
8
212
20
12
19
6

Артикул

Название

Примечание

Количество

1

A60208

ACTUATOR

ASSY - steering, Includes: Ref. 2 - 21

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

3

A60218

COVER

- top

1шт.

4

A60219

SEALING RING

O-RING - 4 x 4-17/64 x 9/64"

1шт.

Included w/ SEAL KIT, A42399

1шт.

5

A60216

SNAP RING,#250, Ext

Ring, Snap, , washer #250, Ext

1шт.

6

A60215

WASHER

- thrust

1шт.

7

A64506

HOUSING ASSY - actuator, Includes: Ref. 8 and 9

1шт.

8

A60210

BUSHING

- top, 2-1/2 x 2-11/16 x 1-23/64"

1шт.

9

A60211

BUSHING

- bottom, 3-1/4 x 3-7/16 x 1-5/32"

1шт.

10

A64908

PISTON

- actuator (Replaces A59285)

2шт.

11

A60212

O-RING

- 1-15/16 x 2-1/8 x 3/32"

4шт.

Included w/ SEAL KIT, A42399

1шт.

12

A60213

RING

- piston seal

4шт.

Included w/ SEAL KIT, A42399

1шт.

13

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

- 2-7/8 x 3-1/8 x 1/8"

4шт.

14

A59533

COVER

- end

4шт.

15

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" NC hex

16шт.

16

92-6

LOCK WASHER,3/8"

16шт.

17

A60217

SEAT

- ball

2шт.

18

211-21

BALL

- 1" diameter steel

1шт.

19

A34849

SHIM,.0105" Thk

1шт.

19

A34390

SHIM,.0329" Thk

1шт.

19

A34391

SHIM,.0149" Thk

1шт.

20

A57658

OIL SEAL

- oil, 3-1/4 x 4-1/4 x 3/8"

1шт.

Included w/ SEAL KIT, A42399

1шт.

21

A60214

SPINDLE - upper

1шт.

On tractors with adjustable axles only, A64507 spindle can replace A60214 spindle & A59692 center steering arm (see Fig. 218)

1шт.

A42399

SEAL

KIT - seal, Includes: Ref. 4, 11, 12 and 20

1шт.

Выбрано товаров: 29
