Запчасти Case IH 1070 (0200) - A64504 STEERING ACTUATOR, WITH DUAL FRONT WHEEL, 1ST USED TRACTOR SERIAL NUMBER 8693001 (05) - STEERING

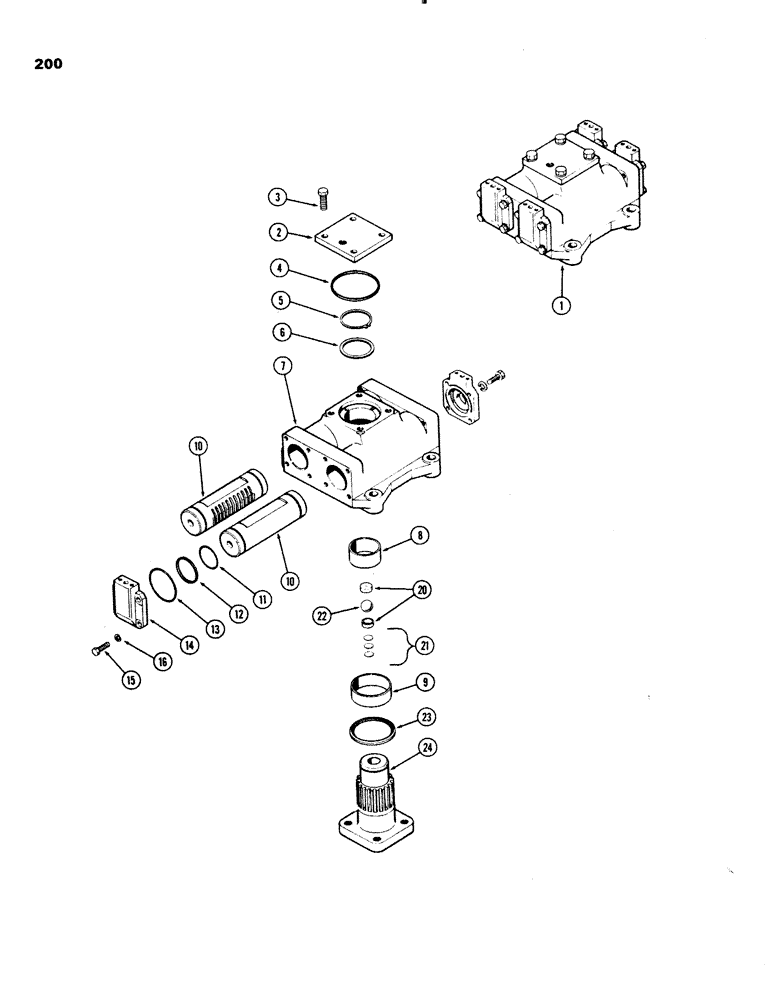

Схема запчастей Case IH 1070 - (0200) - A64504 STEERING ACTUATOR, WITH DUAL FRONT WHEEL, 1ST USED TRACTOR SERIAL NUMBER 8693001 (05) - STEERING
15
5
10
8
24
7
6
13
20
14
22
10
12
9
21
11
4
1
16
2
3
23

Артикул

Название

Примечание

Количество

1

A64504

ACTUATOR

ASSY - complete, Includes: Ref. 2 - 24

1шт.

2

A60218

COVER

- top, housing

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

A60219

SEALING RING

O-RING - cover seal (4 x 4-17/64 x 9/64")

1шт.

Included w/ SEAL KIT, A42399

1шт.

5

A60216

SNAP RING,#250, Ext

Ring, Snap, , spindle #250, Ext

1шт.

6

A60215

WASHER

- thrust, spindle

1шт.

7

A60209

HOUSING

ASSY - actuator, Includes: Ref. 8 and 9

1шт.

8

A60210

BUSHING

- top, 2-1/2 x 2-11/16 x 1-23/64"

1шт.

9

A60211

BUSHING

- bottom, 3-1/4 x 3-7/16 x 1-5/32"

1шт.

10

A64908

PISTON

- actuator (Replaces A59285)

2шт.

11

A60212

O-RING

- piston (1-5/16 x 2-1/8 x 3/32")

4шт.

12

A60213

RING

-seal, piston

4шт.

Included w/ SEAL KIT, A42399

1шт.

13

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

- cover seal (2-7/8 x 3-1/8 x 1/8")

4шт.

14

A59533

COVER

- end

4шт.

15

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" NC hex

16шт.

16

92-6

LOCK WASHER,3/8"

16шт.

20

A60217

SEAT

- ball, spindle

2шт.

21

A34849

SHIM,.0105" Thk

Ball seat .0105" Thk

1шт.

21

A34390

SHIM,.0329" Thk

Ball seat .0329" Thk

1шт.

21

A34391

SHIM,.0149" Thk

Ball seat .0149" Thk

1шт.

22

211-21

BALL

- steel, 1" dia.

1шт.

23

A57658

OIL SEAL

- oil, spindle (3-1/4 x 4-1/4 x 3/8")

1шт.

Included w/ SEAL KIT, A42399

1шт.

24

A60214

SPINDLE - steering arm

1шт.

A42399

SEAL

KIT - seal (replaces A42499), Includes: Ref. 4, 11 - 13 and 23

1шт.

Выбрано товаров: 27
