Запчасти Case IH 1070 (0196) - A60202 STEERING PUMP, USED PRIOR TO TRACTOR SERIAL NUMBERS 8693001 (05) - STEERING

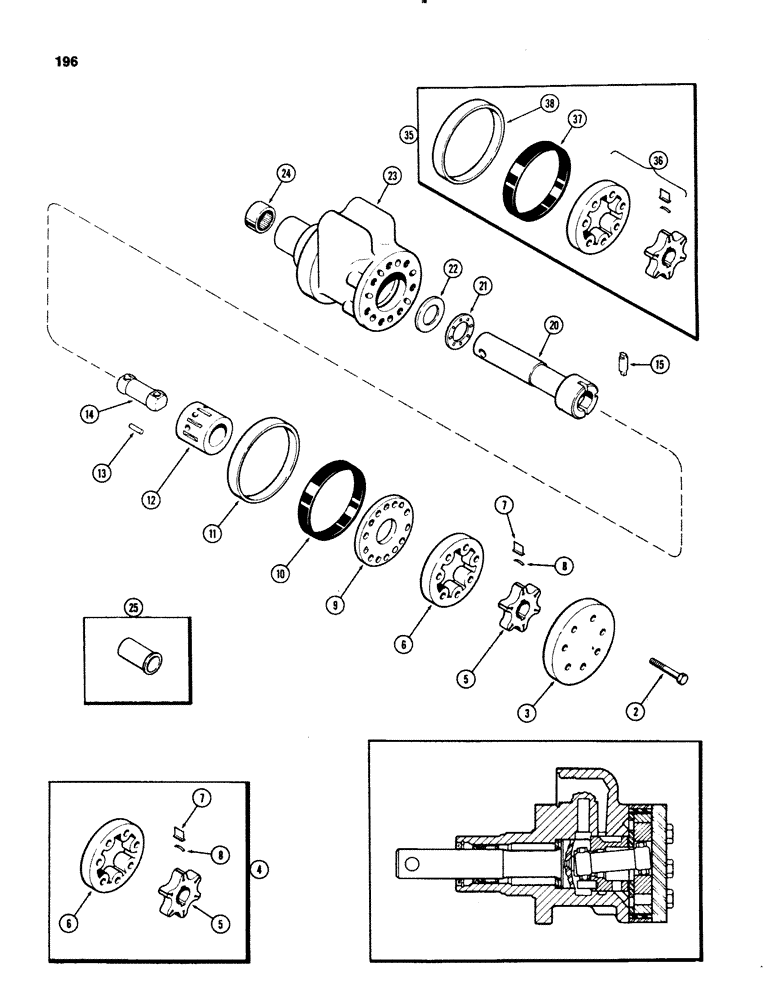

Схема запчастей Case IH 1070 - (0196) - A60202 STEERING PUMP, USED PRIOR TO TRACTOR SERIAL NUMBERS 8693001 (05) - STEERING
24
3
22
14
12
10
7
13
5
8
15
38
20
11
21
2
6
4
7
8
23
25
5
36
9
37
6
35

Артикул

Название

Примечание

Количество

A60202

PUMP ASSY. - steering, hand, Includes: Ref. 2 - 24

1шт.

2

28-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 8

- cover

7шт.

3

F19641

COVER - end

1шт.

4

A43545

ROTOR

SET - pump (Replaces A42214) (See Ref. 35), Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - pump, 1/2" wide

1шт.

6

NSS

NOT SOLD SEPARAT

STATOR - pump

1шт.

7

NSS

NOT SOLD SEPARAT

VANE - rotor

6шт.

8

A42219

SPRING

- vane sealing

6шт.

9

A42206

SPACER

- rotor

1шт.

10

F19640

SEAL

- rotor

1шт.

11

F19639

RETAINER

- seal, rotor

1шт.

12

NSS

NOT SOLD SEPARAT

COMMUTATOR - body

1шт.

13

F19631

PIN

- commutator

1шт.

14

F19635

LINK

- drive

1шт.

15

F19636

PIN

- link

2шт.

20

F12500

SHAFT - drive

1шт.

21

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle, shaft thrust

1шт.

22

F19634

BEARING WASHER

RACE - bearing

1шт.

23

A42213

BODY - pump, w/needle bearing

1шт.

24

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle, shaft to body

1шт.

35

A43153

CONVERSION KIT

KIT - pump conversion, reduced steering effort, Includes: Ref. 36 - 38

1шт.

36

A43155

ROTOR

ASSY. - spring & valve (7/16" wide rotor)

1шт.

37

A43157

SEAL

- rotor

1шт.

38

A43157

SEAL

RETAINER - seal

1шт.

Выбрано товаров: 24
