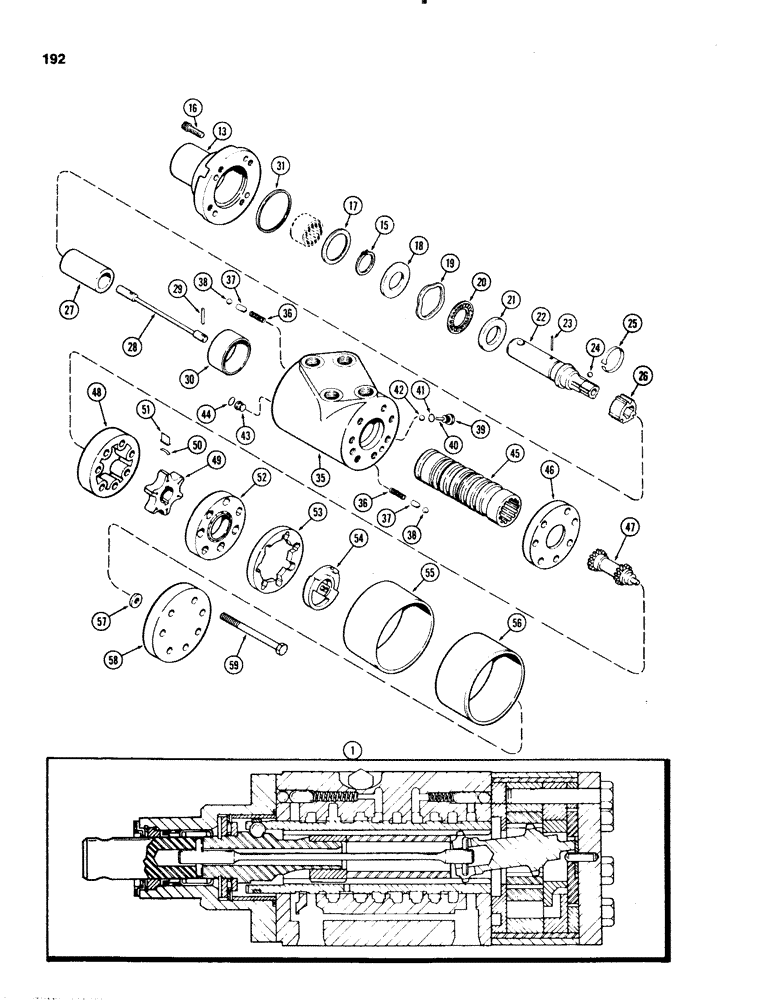

Запчасти Case IH 1070 (0192) - A66389 STEERING PUMP, USED TRACTOR SERIAL NUMBERS 8727973 TO 8780941 (05) - STEERING

1

A66389

HYDRAULIC STEERING

PUMP ASSY - hydrostatic steering (Order A141904), Includes: Ref. 13 - 59

1шт.

13

NSS

NOT SOLD SEPARAT

COVER ASSY. & SEALS (See Fig. 198)

1шт.

15

A43720

RING

- snap, bearing retainer

1шт.

16

A43567

BOLT

- upper cover

4шт.

17

A44435

SHIM

KIT - shim, cover needle bearing

1шт.

18

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust, bearing

1шт.

19

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - spring

1шт.

20

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust, end cover

1шт.

21

F19634

BEARING WASHER

WASHER - thrust bearing

1шт.

22

A43551

SHAFT

- input

1шт.

23

D53297

PIN

- torsion bar shaft

1шт.

24

211-9

BALL,5/16" Dia

- . 5/16" Dia

1шт.

25

A43560

SPRING

RETAINER - ball

1шт.

26

A43554

RING

- drive

1шт.

27

A43719

SPACER

- drive link

1шт.

28

A43718

BAR

T-BAR ASSY. - torsion (red tip), Includes: Ref. 29

1шт.

29

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

30

A43728

SPACER

- shaft pre-load spring

1шт.

31

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- end cover

1шт.

35

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

36

NSS

NOT SOLD SEPARAT

SPRING - check

2шт.

37

NSS

NOT SOLD SEPARAT

ROLLER - check spring

2шт.

38

211-8

BALL,9/32" Dia

3шт.

F82943

VALVE

KIT - relief plug, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

PLUG - relief

1шт.

40

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

41

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

42

211-7

BALL,1/4" Dia

1шт.

43

A43565

PLUG

- port, body

1шт.

44

A43729

O-RING

- plug

1шт.

45

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

46

A43569

BUSHING

PLATE - spacer

1шт.

47

A43568

LINK

- drive

1шт.

A45260

ROTOR

SET - (Replaces A43722) (Order A45188), Includes: Ref. 48 - 51

1шт.

48

NSS

NOT SOLD SEPARAT

STATOR

1шт.

49

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

50

A42219

SPRING

- vane

6шт.

51

NSS

NOT SOLD SEPARAT

VANE - pump

6шт.

52

A43573

MANIFOLD

- pump

1шт.

A43574

COMMUTATOR

ASSY, Includes: Ref. 53 and 54

1шт.

53

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

54

NSS

NOT SOLD SEPARAT

COMMUTATOR

1шт.

55

A45001

SEAL

- rotor (Replaces A43725)

1шт.

56

A45278

RETAINER

- rotor seal

1шт.

57

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - bearing, drive link

1шт.

58

A45182

COVER

- end, rotor

1шт.

59

A43727

BOLT

- end cover

7шт.
