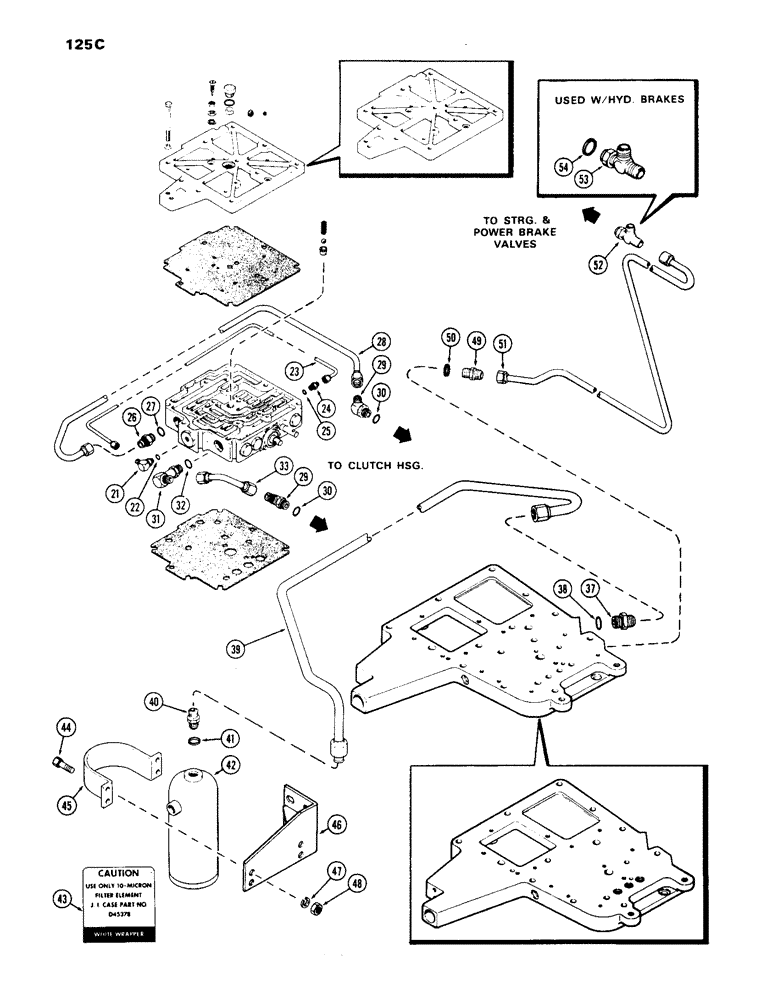

Запчасти Case IH 1070 (125C) - TRANSMISSION CONTROL VALVE, COVERS, GASKETS & TUBES, POWER SHIFT USED PRIOR TO TRANS SER.NO 2366001 (06) - POWER TRAIN

21

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY. 90 deg. adjustable, 1/4" tube O.D. x 7/16", Includes Ref. 22

1шт.

22

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 x 23/64 x 5/64"

1шт.

23

A60656

TUBE

pilot, trans. control valve reverse lock-out

1шт.

24

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR ASSY., 1/4" tube, 37 deg. flare w/ o-ring, Incl. Ref. 25

1шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 x 23/64 x 5/64"

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy, 1/2" tube O.D. x 3/4" P.T., Incl. Ref 27

1шт.

28

A60269

TUBE

trans. control valve to clutch hsg.

1шт.

29

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. 45 deg. adjustable, 1/2" tube, Incl. Ref 29

2шт.

31

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

ASSY., 1/2" tube, Includes Ref. 32

1шт.

33

A62101

TUBE

valve to clutch hsg., Replaces A61054

1шт.

37

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, 3/4" tube, Incl. Ref. 38 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 x 59/64 x 1/8"

1шт.

39

A60859

TUBE

hyd. oil filter to trans. control valve

1шт.

40

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, Incl. Ref. 41 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 x 59/64 x 1/8"

1шт.

42

A60766

SPROCKET

FILTER ASSY. 10 micron, white wrapper, See Figure 126

1шт.

43

321-1762

DECAL

warning, trans. oil filter, white wrapper, Replaces 321-1295

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

44

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8 x 1-1/2" N.C. hex.

2шт.

45

A60857

CLAMP hyd. oil filter to bracket, Order A65004

1шт.

46

A60854

BRACKET mounting, hyd. oil filter

1шт.

47

92-6

LOCK WASHER,3/8"

4шт.

48

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

4шт.

49

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy, 3/4" P.T., 1/2" tube, Incl. Ref 50

1шт.

51

A59923

TUBE tee junction to trans. cover

1шт.

52

218-594

TEE,3/4"-16, 37 Degree

junction, 1/2" tube, used w/ power brakes

1шт.

53

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY., used w/ hyd. brakes 1/2" tube, Includes Ref. 54

1шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32"

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

1шт.

50

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

1шт.
