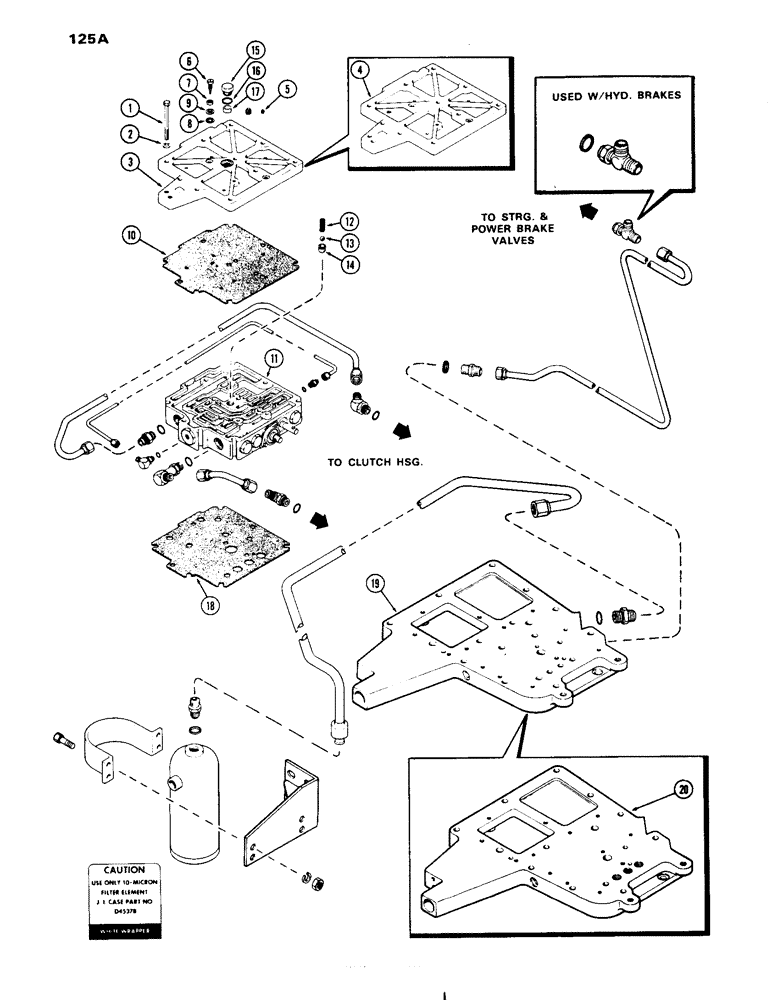

Запчасти Case IH 1070 (125A) - TRANSMISSION CONTROL VALVE, COVERS, GASKETS & TUBES, POWER SHIFT USED PRIOR TO TRANS. SN 2366001 (06) - POWER TRAIN

1

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

10шт.

2

92-6

LOCK WASHER,3/8"

10шт.

3

A62105

SPARE PART Control valve, 1st used trans. S/N 2338762

1шт.

4

A61695

COVER

Trans. control valve, used prior to trans. S/N 2338762, Replaces A59072, Order (1) A62105 and (1) A62107

1шт.

5

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

Pipe, valve cover

5шт.

6

A59073

NEEDLE

Retard orifice

2шт.

7

25-154

JAM NUT,Jam, 1/4"-28, G5

Hex

2шт.

8

A59074

SEAL

1/4" thread

2шт.

9

122-13

GROMMET

WASHER flat, 1/4" steel

2шт.

10

A62270

GASKET

Control valve to valve cover, Replaces A61035

1шт.

11

REF

INSTRUCTION

VALVE ASSY. trans. control, See Figure 128

1шт.

12

A61696

SPRING

Trans. control valve detent ball, Replaces A13544

1шт.

13

211-12

BALL,7/16 Dia

Detent

1шт.

14

A59062

SLEEVE

Valve body detent

1шт.

15

A62588

PLUG

Detent, Replaces A62106, Includes Ref. 16

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

A62107

SPACER

SPACER detent

1шт.

18

A62269

GASKET

Control valve to cover, Replaces A61034

1шт.

19

A61682

SPARE PART Trans. front top, 1st used trans. S/N 2388762

1шт.

20

A58244

SHIELD

COVER trans. front top, used prior to trans. S/N 2338762

1шт.
