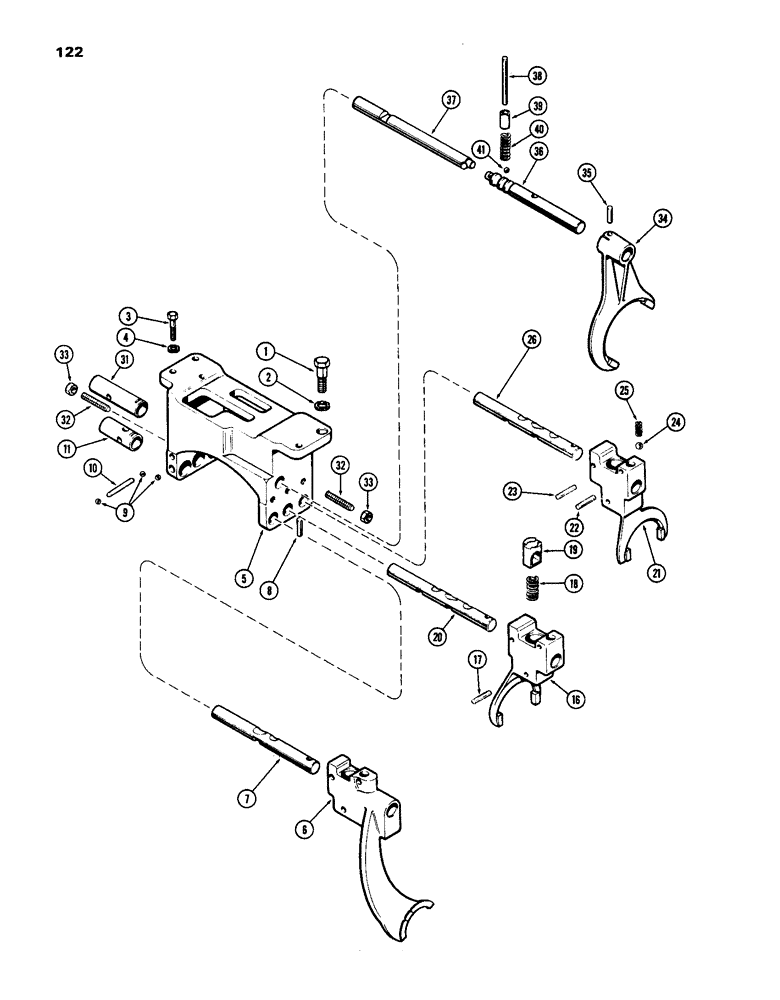

Запчасти Case IH 1070 (122) - GEAR SHIFT MECHANISM, RAILS AND FORKS, MECHANICAL SHIFT (06) - POWER TRAIN

1

A32042

STEP BOLT

BOLT dowel, shifter bracket to trans. case

1шт.

2

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3/8 x 1-1/2" N.C. hex.

2шт.

4

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

5

A62810

BRACKET

gear shift control, Replaces A60712

1шт.

6

A59104

FORK

reverse gear shift

1шт.

7

A59136

SHAFT

RAIL reverse gear shift fork

1шт.

8

138-2048

PIN,5/16" x 5/8", Coiled

rails to brkts. 5/16" x 5/8", Coiled

3шт.

9

211-28

BALL,13/32" Dia

., chrome steel, grade 3 13/32" Dia

4шт.

10

A59120

ROD

gear shift interlock

1шт.

11

A59119

TUBE

gear shift reverse interlock

1шт.

16

A59105

FORK

1st and 2nd gear shift

1шт.

17

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Holds spring in forks 3/16" x 1 1/4", Slotted

3шт.

18

A58492

SPRING

gear shift fork detent lock, 1-1/4" free length

3шт.

19

A58491

CLIP

LOCK detent, gear shift fork, Order A65961

3шт.

20

A59137

SHAFT

RAIL 1st and 2nd gear shift fork

1шт.

21

A59106

FORK

3rd and 4th gear shift

1шт.

22

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

3шт.

23

138-2002

PIN,3/16" x 1 1/4", Coiled

3шт.

24

211-14

BALL,9/16" Dia

detent, . 9/16" Dia

3шт.

25

A59588

SPRING

gear shift fork detent ball, 11/16" free length

3шт.

26

A59138

SHAFT

RAIL 3rd and 4th gear shift fork

1шт.

31

A59118

TUBE

gear shift interlock

2шт.

32

83-628

SET SCREW,Hex Soc, 3/8"-16 x 1 3/4"

SCREW set, 3/8 x 1-3/4" N.C. hex. socket headless

3шт.

32

83-632

SET SCREW,Hex Soc, 3/8"-16 x 2"

SCREW set, 3/8 x 2" N.C. hex. socket headless

3шт.

33

25-146

JAM NUT,Jam, 3/8"-16, G5

3/8" N.C. hex., jam

6шт.

34

A62249

FORK

range gear shift, Replaces A62248

1шт.

35

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Fork to shaft 1/4" x 1 1/2", Slotted

1шт.

36

A62248

SHAFT

RAIL range gear shift fork, Replaces A62249

1шт.

37

A59117

TUBE

SHAFT range

1шт.

38

A59116

ROD

neutral switch

1шт.

39

A59113

SPACER

range shift detent ball spring

1шт.

40

A33749

SPRING

detent ball, range gear shift, 1-9/32" free length

1шт.

41

211-13

BALL,1/2" Dia

- detent, range shift 1/2" Dia

1шт.
