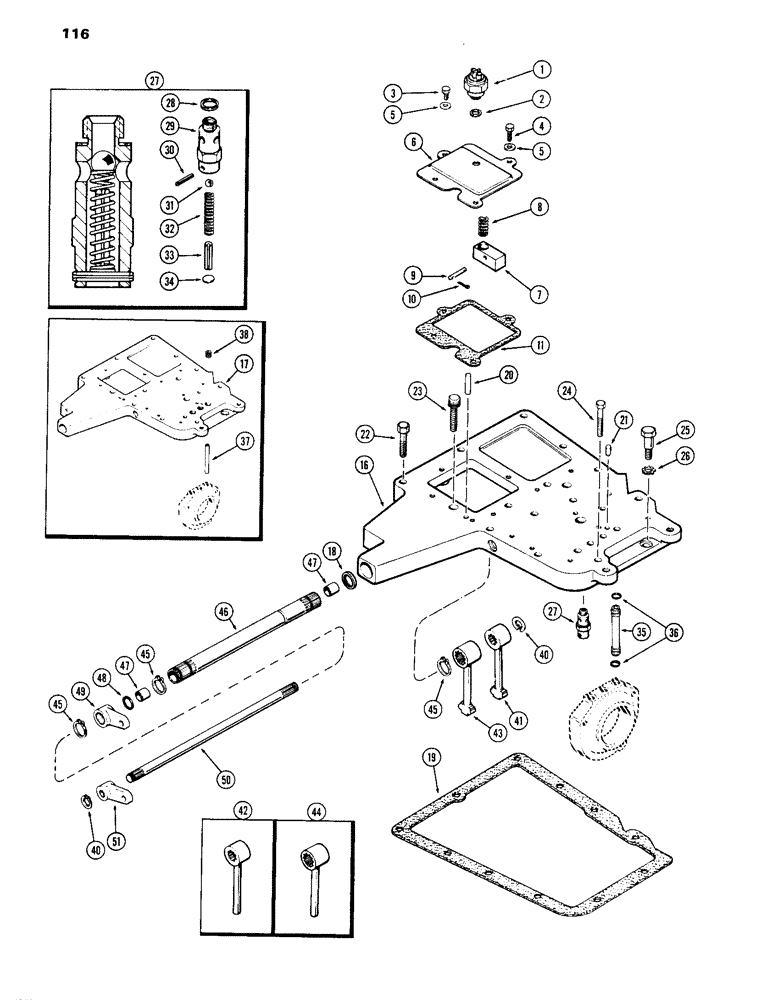

Запчасти Case IH 1070 (116) - RANGE SHIFT MECHANISM, COVERS AND RELIEF VALVE, POWER SHIFT (06) - POWER TRAIN

1

A20990

SWITCH

- safety, neutral start

1шт.

2

G49402

SHIM,.010" Thk

Neutral start switch (19/32 x 1 x .010") .010" Thk

1шт.

3

113-217

PREV TORQUE BOLT,Locking, 3/8"-16 x 1", G5, Full Thd

BOLT, Locking, 3/8"-16 x 1", G5, Full Thd

1шт.

4

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

5

95-6

WASHER,3/8"

7/16 x 1 x 5/64"

4шт.

6

A60832

COVER

ASSY. gear shift lever and neutral switch, Includes Ref. 7 - 10

1шт.

7

A60836

LEVER

neutral switch

1шт.

8

A60837

SPRING

neutral switch, 1-35/64" free length

1шт.

9

A61030

PIN

pivot, neutral switch

1шт.

10

132-3

COTTER PIN,1/16" x 3/8"

Pin, Split (Cotter), , Lever to cover 1/16" x 3/8"

1шт.

11

A59115

GASKET

cover, gear shift lever

1шт.

16

A61682

COVER ASSY. trans., front top w/ seal, 1st used trans. serial no. 2338762

1шт.

17

A58244

SHIELD

COVER ASSY. trans., front top w/ seal, used prior to trans. serial no. 2338762, Includes Ref. 18

1шт.

18

A28211

OIL SEAL

oil, external range shift shaft, 1 x 1-1/4 x 1/8"

1шт.

19

A62114

GASKET,0.79mm Thk

trans. top front cover, Replaces A58941

1шт.

20

A58950

PIN

dowel, external range shift lever shaft to cover, 3/8 x 1-3/8"

1шт.

21

D24005

PIN

dowel, trans. top front cover to valve body, Replaces A59091, 3/16 x 1/2"

1шт.

22

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2" N.C. hex.

8шт.

23

166-91

12 PT SCREW,Flg, 1/2" - 13 x 2 1/2, Gr 8

BOLT, 1/2 x 2-1/2" N.C. ferry cap

1шт.

24

113-439

SCREW,Locking, 1/2"-13 x 2 1/2", G5

BOLT, 1/2 x 2-1/2" N.C. hex., nylock insert

1шт.

25

A60891

STEP BOLT

BOLT dowel, nylock insert

1шт.

26

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

27

A60890

VALVE

ASSY. lube oil relief, Includes Ref. 28 - 34

1шт.

28

NS

NOT SERVICED

GASKET relief valve seat, no longer required

1шт.

29

NSS

NOT SOLD SEPARAT

BODY relief valve, Order A60890

1шт.

30

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

31

211-9

BALL,5/16" Dia

chrome steel, . 5/16" Dia

1шт.

32

A60889

SPRING

relief valve, 1-11/16" free length

1шт.

33

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

34

195-6

WASHER,#6

5/32 x 5/16 x 1/32"

1шт.

35

A61677

TUBE

oil, 1st used trans. ser. no. 2338762

3шт.

36

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Replaces A18414, 1st used trans. ser. no. 2338762

6шт.

37

A58102

TUBE oil, used prior to trans. ser. no. 2338762

3шт.

38

A58050

PLUG

oil tube, oil distributor cover, w/ nylok insert

3шт.

40

A59594

RING

snap, retaining, internal range shift shaft

2шт.

41

A61280

LEVER

range shift, 1st and 3rd, w/ 14 int. teeth, 1st used trans. ser. no. 2358807

1шт.

42

A59595

LEVER

range shift, 1st and 3rd, w/ 14 int. teeth, used prior to trans. ser. no. 2358807

1шт.

43

A61281

LEVER

range shift, 2nd and 4th, w/ 23 int. teeth, 1st used trans. ser. no. 2358807

1шт.

44

A58956

LEVER

range shift, 2nd and 4th, w/ 23 int. teeth, used prior to trans. ser. no. 2358807

1шт.

45

B18208

SNAP RING,#100, Ext

range shift lever to shaft #100, Ext

3шт.

46

A58245

SHAFT

ASSY. external range shift w/ bushings, Includes Ref. 47

1шт.

47

A57709

BUSHING

external range shift, lever shaft

2шт.

48

A58949

O-RING,0.614" ID x 0.754" OD

int. range shift lever shaft, 5/8 x 3/4 x 1/16"

3шт.

49

A64936

LEVER

range shift, 2nd and 4th, Replaces A60369

1шт.

50

A59591

SHAFT

lever, internal range shift

1шт.

51

A64935

LEVER

range shift, 1st and 3rd, Replaces A60363

1шт.
