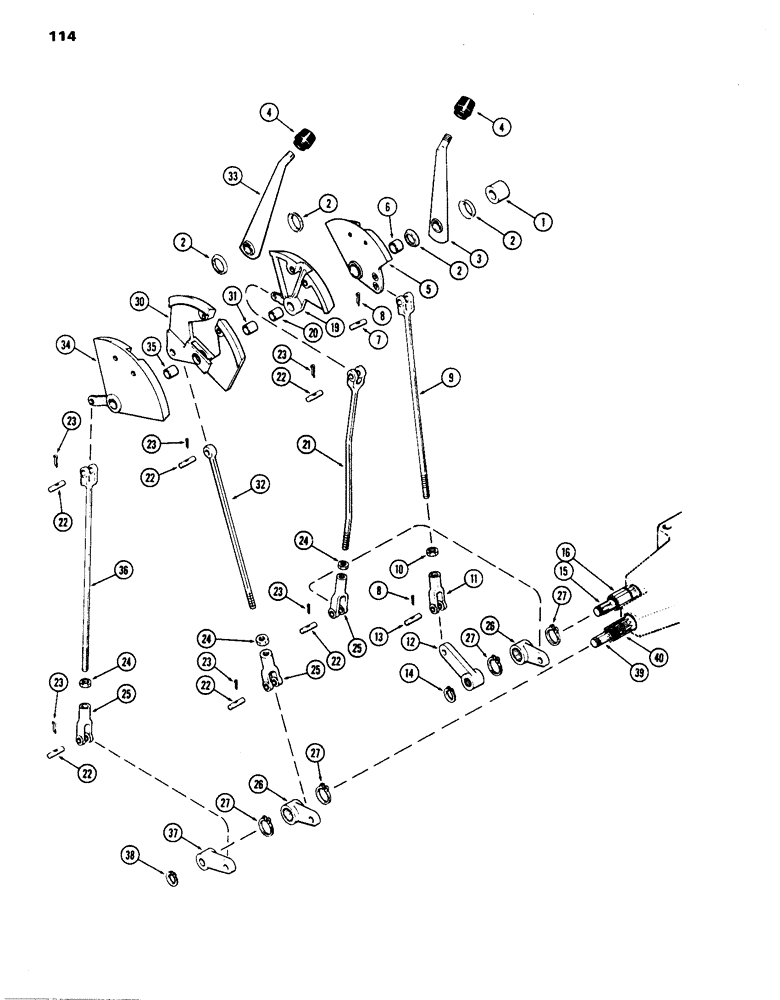

Запчасти Case IH 1070 (114) - GEAR AND RANGE SHIFT LINKAGE, MECHANICAL SHIFT (06) - POWER TRAIN

1

A59664

SPACER

range shift hand lever shaft

1шт.

2

A59662

WASHER

gear and range shift hand lever

4шт.

3

A59661

LEVER

hand, range shift, Order (1) A137806 and (1) A137815

1шт.

4

A62078

KNOB

gear and range shift hand lever, Replaces A23885

2шт.

5

A61862

QUADRANT

range shift hand lever, Replaces A59663, Includes Ref. 6

1шт.

6

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

quadrant

1шт.

7

A59258

PIN

range shift linkage

1шт.

8

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), , clevis pin 3/32" x 1 1/4"

2шт.

9

A59775

ROD

range shift, 17"

1шт.

10

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex.

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE range shift rod end, 3/8" N.F.

1шт.

12

A59666

LEVER

range shift

1шт.

13

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

14

A59594

RING

snap, retaining, range shift lever

1шт.

15

A59592

SHAFT

control lever, internal range shift, See Figure 120

1шт.

16

A59032

SHAFT

ASSY. external reverse shift lever

1шт.

19

A61874

QUADRANT

reverse gear shift, Replaces A60371, Includes Ref. 20

1шт.

20

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

quadrant

1шт.

21

A60358

ROD

reverse, gear shift

1шт.

22

A59258

PIN

gear shift linkage

6шт.

23

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), , gear shift linkage pin 3/32" x 1 1/4"

6шт.

24

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex.

3шт.

25

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE gear shift rods, 3/8"

3шт.

26

A64936

LEVER

reverse, 1st and 2nd, Replaces A60369

2шт.

27

B18208

SNAP RING,#100, Ext

reverse, 1st and 2nd gear shift #100, Ext

4шт.

30

A61869

QUADRANT

gear shift, 1st and 2nd, Replaces A60365, Includes Ref. 31

1шт.

31

A61871

BUSHING,15.95mm ID x 19.13mm OD x 6.48mm L

quadrant

1шт.

32

A60389

ROD

gear shift, 17", 1st and 2nd

1шт.

33

A60360

LEVER

gear shift, hand

1шт.

34

A61864

QUADRANT

gear shift, 3rd and 4th, Replaces A60361, Includes Ref. 35

1шт.

35

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

quadrant

1шт.

36

A59775

ROD

gear shift, 3rd and 4th

1шт.

37

A64935

LEVER

gear shift, 3rd and 4th, Replaces A60363

1шт.

38

A59594

RING

retaining, gear shift lever

1шт.

39

A59591

SHAFT

control lever, internal gear shift, See Figure 120

1шт.

40

A58245

SHAFT

ASSY. external gear shift lever

1шт.
