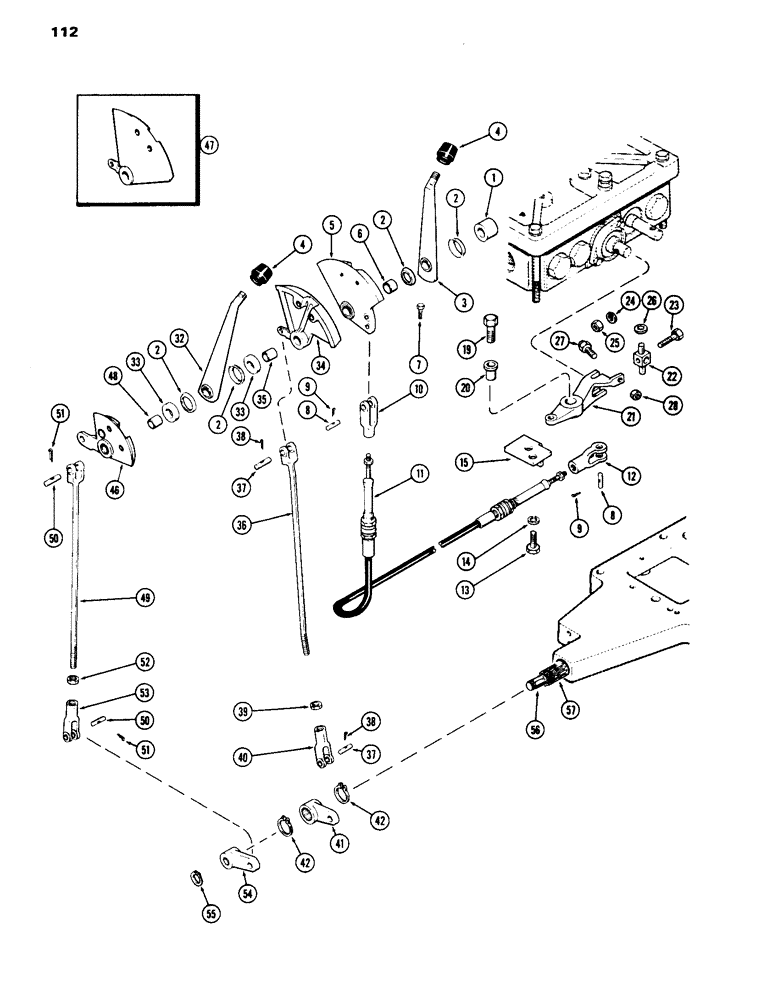

Запчасти Case IH 1070 (112) - GEAR AND RANGE SHIFT LINKAGE, POWER SHIFT (06) - POWER TRAIN

1

A59664

SPACER

power shift hand lever shaft

1шт.

2

A59662

WASHER

power and range shift hand lever

4шт.

3

A59661

LEVER

hand, power shift, Order (1) A137806 and (1) A137815

1шт.

4

A65699

KNOB

power and range shift hand lever, Replaces A23885 and A62078

2шт.

5

A61862

QUADRANT

power shift hand lever, Replaces A59663, Includes Ref. 6

1шт.

6

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

quadrant

1шт.

7

A59463

BOLT

control lever stop

2шт.

8

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Power shift yoke 3/8" x 1.060"

2шт.

9

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", clevis, Serial Range: pin-yoke

2шт.

10

A60661

YOKE

power shift cable, upper

1шт.

11

A60660

CABLE

power shift console control, 29"

1шт.

12

A60663

YOKE

power shift cable, lower

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

A60662

BRACKET

cable, power shift

1шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1/2 x 1-1/4" N.C. hex.

1шт.

20

A59772

BUSHING

power shift spool, operating lever

1шт.

21

A59771

LEVER

operating, power shift spool

1шт.

22

A59150

LINK

power shift spool operating

1шт.

23

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

25-104

NUT,1/4"-20, G5

1шт.

26

A59773

RING

retaining, power shift spool operating link

1шт.

27

A59774

ADJUSTMENT SCREW,5/16" - 18 x 1 3/8", Mild Steel

SCREW adjusting, power shift spool

1шт.

28

25-145

JAM NUT,Jam, 5/16"-18, G5

5/16" N.C. hex., jam

1шт.

32

A60360

LEVER

hand, range shift

1шт.

33

A60367

SPACER

range shift quadrant, 41/64 x 1-1/4 x 1/4"

2шт.

34

A61872

QUADRANT

range shift, 2nd and 4th, Replaces A60366, Includes Ref. 35

1шт.

35

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

quadrant

1шт.

36

A60359

ROD

range shift, 2nd and 4th

1шт.

37

A59258

PIN

range shift linkage

2шт.

38

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

39

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex.

1шт.

40

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE range shift rod, 3/8"

1шт.

41

A64936

LEVER

range shift, 2nd and 4th, Replaces A60369

1шт.

42

B18208

SNAP RING,#100, Ext

range shift lever, 1" dia. shaft #100, Ext

2шт.

46

A64811

QUADRANT

ASSY. 1st and 3rd, 1st used trac. ser. no. 8701503

1шт.

47

A61867

QUADRANT

1st and 3rd, Replaces A60362, used prior to trac. ser. no. 8701503, Order A64811, Includes Ref. 48

1шт.

48

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

quadrant

1шт.

49

A59775

ROD

gear shift, 1st and 3rd

1шт.

50

A59258

PIN

gear shift linkage

2шт.

51

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

52

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex.

1шт.

53

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE range shift rod, 3/8"

1шт.

54

A64935

LEVER

gear shift, 1st and 3rd

1шт.

55

A59594

RING

snap, retaining, gear shift lever

1шт.

56

A59591

SHAFT

lever, internal gear shift

1шт.

57

A58245

SHAFT

ASSY. external gear shift, See Figure 120

1шт.
