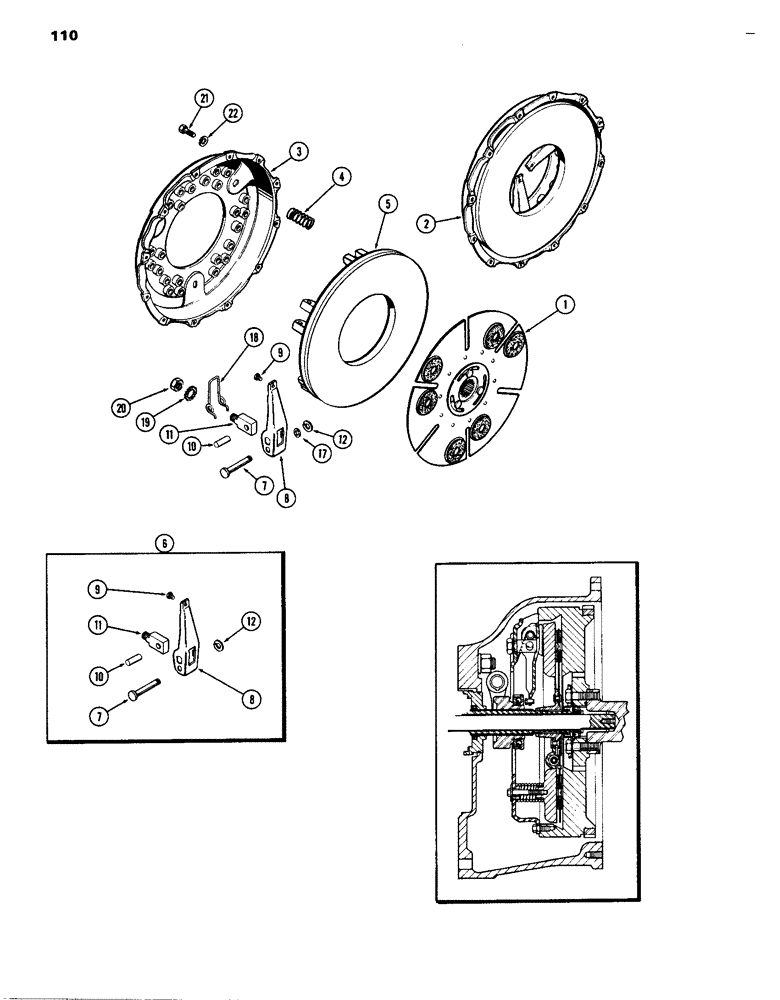

Запчасти Case IH 1070 (110) - CLUTCH, MECHANICAL SHIFT (06) - POWER TRAIN

1

A57425

CLUTCH DISC

CLUTCH DISK PLATE ASSY. drive clutch, w/ facings, 15"

1шт.

1

AR57425

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 15 in., 16Tooth hub, 6 button assembly,

1шт.

1

AC57425

CORE-CLUTCH DISC

Return Part Number

1шт.

2

A34459

COVER ASSY

COVER ASSY. clutch, 15", Includes Ref. 3 - 20

1шт.

2

AR34459

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate, 15 in,

1шт.

2

AC34459

CORE-CLUTCH PLATE

Return Part Number

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE back, Order A34459

1шт.

4

A42470

CLUTCH

SPRING clutch pressure, set of 12

1шт.

5

A25113

PLATE

PLATE pressure

1шт.

6

A40809

KIT

KIT lever, clutch release, Includes Ref. 7 - 12

1шт.

7

A40811

SPARE PART PIN clevis, torsion spring

3шт.

8

NSS

NOT SOLD SEPARAT

LEVER ASSY. clutch release, Order A40809, Includes Ref. 9

3шт.

9

A25117

ADJUSTMENT SCREW,3/8" - 24 x 17/32"

SCREW lever adjusting

1шт.

10

A25118

AXLE PIN

PIN lever pivot block

3шт.

11

A25119

BLOCK

BLOCK lever pivot

3шт.

12

A40810

RING, SNAP

RING SNAP RING retainer

3шт.

17

A25121

WASHER

WASHER clevis pin

3шт.

18

A25120

SPRING

SPRING torsion, anti-rattle

3шт.

19

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

3шт.

20

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT, 5/8" N.F. hex., jam

3шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

22

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

12шт.
