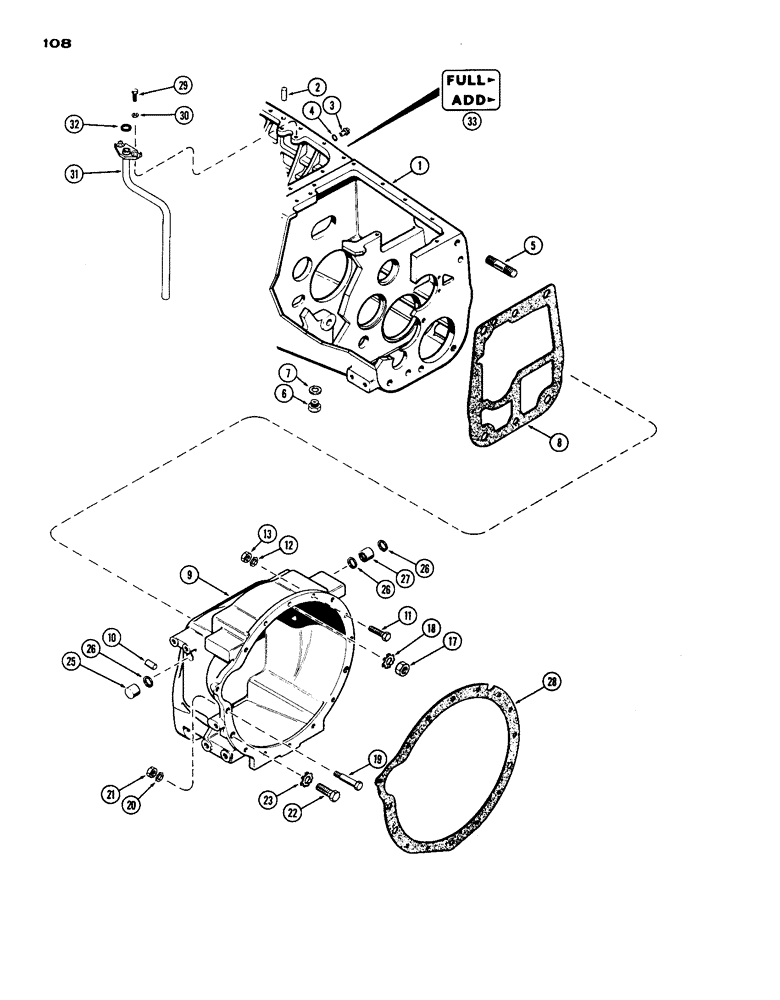

Запчасти Case IH 1070 (108) - CLUTCH RELEASE SYSTEM, MECHANICAL SHIFT (06) - POWER TRAIN

1

A58972

HOUSING transmission

1шт.

2

A7077

DOWEL

PIN dowel, trans. housing to rear top cover, 1-3/8 x 1/2"

2шт.

3

A58420

GAUGE

ASSY. oil sight, glass, w/ o-ring, Includes Ref. 4

2шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

sight glass

1шт.

5

A7073

STUD

trans. housing to clutch housing, 7/8 N.F. x 4"

4шт.

6

A14280

PLUG

drain and fill, trans. housing, 3/4"

3шт.

7

A58608

GASKET

drain plug, trans., 49/64 x 1 x 5/64"

3шт.

8

A58973

GASKET

clutch hsg. to trans. hsg.

1шт.

9

A58169

HOUSING

clutch, Order A62485

1шт.

10

A28269

PIN

dowel, clutch hsg. to trans. hsg., 3/4 x 1-1/4"

2шт.

11

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Eng. to clutch housing Hex, 1/2"-13 x 1 5/8", G5

5шт.

11

113-465

BOLT

hex. hd., eng. to clutch hsg., 1/2 x 2" N.C., grade 5S

4шт.

11

113-466

BOLT

hex. hd., eng. to clutch hsg., 1/2 x 2-1/4" N.C., grade 5S

2шт.

12

A34650

LOCK WASHER

lock, 1/2" external type, heavy duty

11шт.

13

25-168

NUT,1/2"-13, G5, Hvy

hex., 1/2" N.C. heavy

1шт.

17

25-1114

NUT,7/8"-14, G5

hex., 7/8" N.F.

4шт.

18

A57961

LOCK WASHER

lock, 7/8" external type, heavy duty

4шт.

19

A61040

STEP BOLT

BOLT dowel, eng. to clutch hsg., 1/2 x 3" N.C. hex.

1шт.

19

A61041

STEP BOLT

BOLT dowel, eng. to clutch hsg., 1/2 x 2-3/16" N.C. hex.

1шт.

20

A34650

LOCK WASHER

lock, 1/2" external type, heavy duty

2шт.

21

25-108

NUT,1/2"-13, G5

hex., 1/2" N.C.

2шт.

22

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Eng. to clutch hsg. Hex, 3/4"-10 x 2 1/4", G5

2шт.

23

A34651

LOCK WASHER

lock, 3/4" external type, heavy duty

2шт.

25

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

BEARING needle, clutch throwout shaft, closed end

1шт.

26

A28211

OIL SEAL

oil, clutch throwout shaft, 1 x 1-1/4 x 1/8"

3шт.

27

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING needle, clutch throwout shaft, open end

1шт.

28

A58139

GASKET

clutch, Serial Range: hsg.-engine

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

A58371

TUBE

hyd. fluid return

1шт.

32

A32343

SEAL

hyd. fluid return tube, 47/64 x 1-13/64 x 13/64"

1шт.

33

321-1642

DECAL

trans. oil level, 1st used trac. ser. no. 8656479

1шт.
