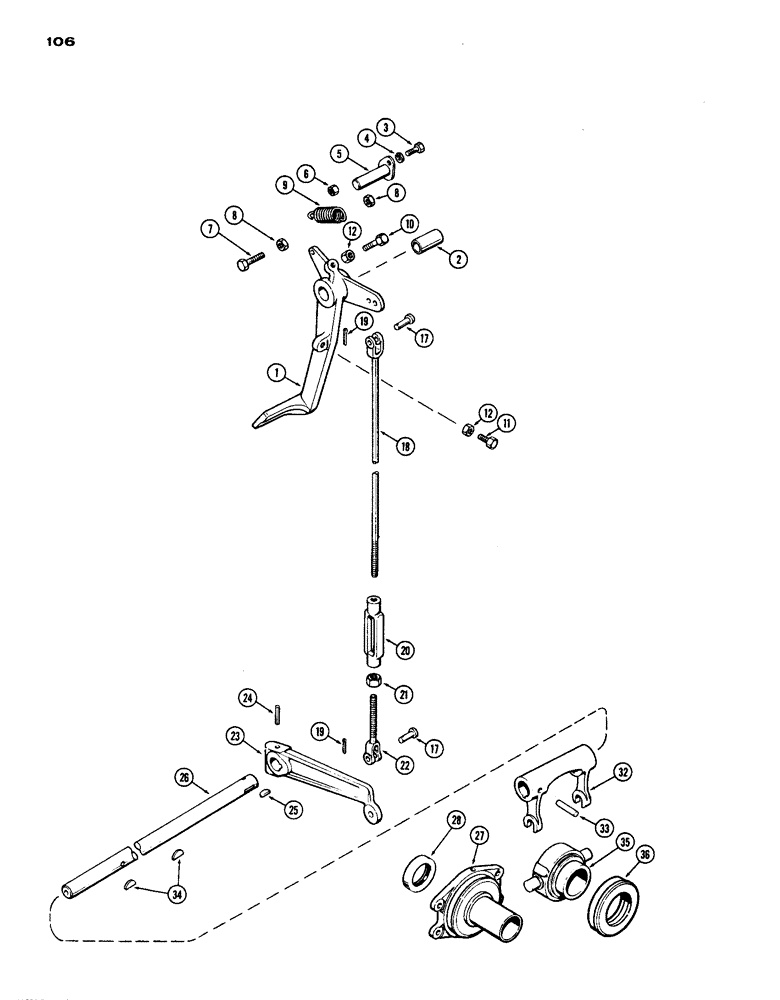

Запчасти Case IH 1070 (106) - CLUTCH RELEASE SYSTEM, MECHANICAL SHIFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A60300
PEDAL
ASSY. foot clutch, Includes Ref. 2
1шт.
2
A59475
BUSHING
clutch pedal
1шт.
3
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Clutch pedal pivot shaft to firewall Hex, 5/16"-18 x 1", G5, Full Thd
1шт.
4
92-5
LOCK WASHER,5/16"
1шт.
5
A60305
SHAFT
pivot, clutch pedal
1шт.
6
9635082
NUT,5/16" - 18, Gr 5
hex., 5/16" N.C.
1шт.
7
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
Spring anchor bolt Hex, 3/8"-16 x 1 3/4", G5
1шт.
8
25-146
JAM NUT,Jam, 3/8"-16, G5
hex., 3/8" N.C. jam
2шт.
9
A59470
SPRING
tension, clutch return
1шт.
10
A59472
BOLT
stop, clutch pedal
1шт.
11
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Clutch pedal stop Hex, 5/16"-18 x 1", G5, Full Thd
1шт.
12
25-145
JAM NUT,Jam, 5/16"-18, G5
hex., 5/16" N.C. jam
2шт.
17
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, , Upper & lower links 3/8" x 1.060"
2шт.
18
A60312
LINK
upper, clutch adjusting, Order A60310
1шт.
19
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
20
A60303
TURNBUCKLE
3/8", clutch adjusting links
1шт.
21
25-106
NUT,3/8"-16, G5
hex., lower link, 3/8" N.C.
1шт.
22
A60313
LINK
lower, clutch adjusting
1шт.
23
A59191
LEVER
foot clutch release
1шт.
24
138-160
LOCK PIN,5/16" x 2", Slotted
Pin, , clutch release lever 5/16" x 2", Slotted
1шт.
25
126-24
WOODRUFF KEY,#15, 1/4" x 1"
Clutch release lever #15, 1/4" x 1"
1шт.
26
A58979
SHAFT clutch release
1шт.
27
A57698
CARRIER
ASSY. range drive shaft bearing, Includes Ref. 28
1шт.
28
A60076
OIL SEAL
oil, helix lip type, range drive shaft
1шт.
32
A58980
YOKE
clutch release shaft
1шт.
33
138-158
LOCK PIN,5/16" x 1 5/8", Slotted
Pin, , clutch release yoke 5/16" x 1 5/8", Slotted
1шт.
34
126-24
WOODRUFF KEY,#15, 1/4" x 1"
Clutch release shaft #15, 1/4" x 1"
2шт.
35
A57997
CARRIER
ASSY. clutch throwout bearing, Includes Ref. 36
1шт.
36
A58982
BALL BEARING,2.5" ID x 4.062" OD x 0.885"
BEARING clutch release
1шт.
Выбрано товаров: 29
