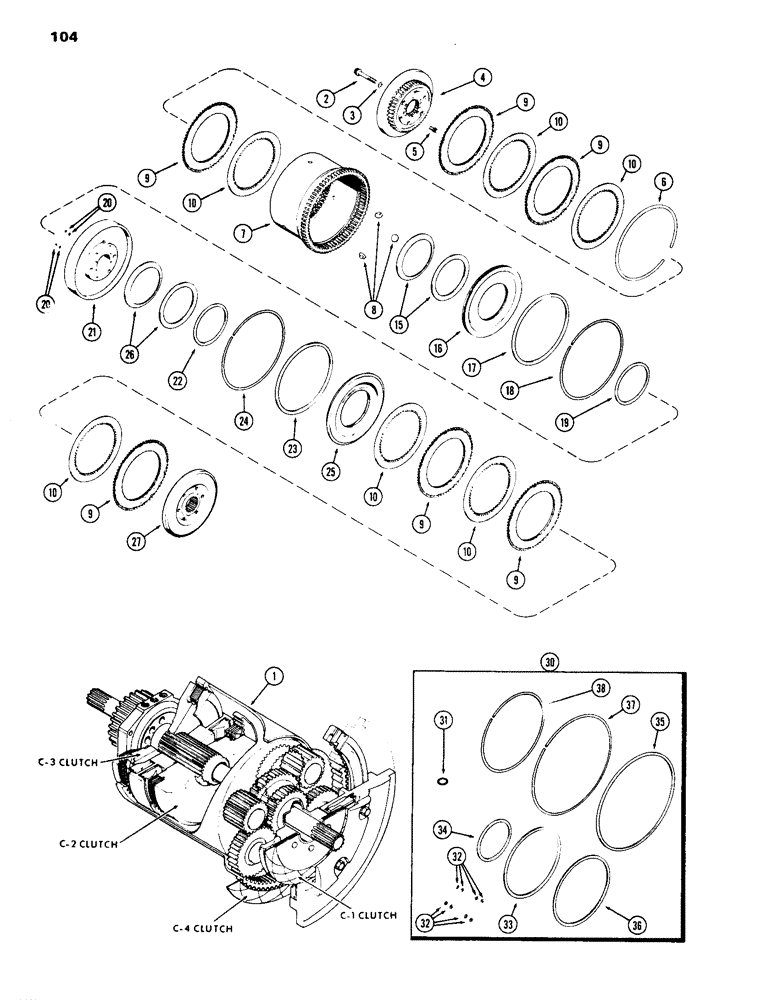

Запчасти Case IH 1070 (104) - C-2 AND C-3 CLUTCH PACK, POWER SHIFT (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

CLUTCH ASSY. powershift and planetary, Includes all Ref. on Figure 100 - 104, Includes Ref. 2 - 27

1шт.

2

A64403

SCREW,Ferry 3/8" - 16 x 2 1/2", Gr 8

ferry cap, clutch hubs, 3/8 x 2-1/2" N.C.

6шт.

3

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

clutch hub cap screw, 13/32 x 13/16 x 3/32"

6шт.

4

A58386

HUB

C3 clutch

1шт.

5

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

SCREW oil distributor hub to clutch hub, 1/4 x 3/4" N.C., 12 pt. flanged, C3 clutch

2шт.

6

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

snap, retaining plate to ring gear, C2 and C3 clutch

1шт.

7

A58412

GEAR

ring, planetary

1шт.

8

A58413

BUTTON

BEARING button, planetary ring gear

3шт.

9

A61981

PLATE

sintered, C2 and C3 clutch, 99 ext. teeth, Replaces A58090

6шт.

10

A58089

PLATE

steel, C2 and C3 clutch, 72 int. teeth

6шт.

15

A58094

SPRING

return, belleville, C3 clutch, replace all four bellville springs if some are found to be defective

2шт.

16

A58380

PISTON

C3 clutch, Order A66392

1шт.

17

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

external, piston, 8" I.D., teflon lip, C3 clutch, also Order (1) A62642 wire, See A42886 seal kit, Ref. 30

1шт.

18

A62642

ELECTRICAL WIRE

WIRE seal lip, 25-1/2" long, 22 ga., See A42886 seal kit, Ref. 30

1шт.

19

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

internal, 4-1/2" I.D., teflon lip, C3 clutch, See A42886 seal kit, Ref. 30

1шт.

20

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING oil sealing, hub, 19/64 x 7/16 x 1/16", C2 and C3 clutch, See A42886 seal kit, Ref. 30

4шт.

21

A62121

CARRIER

piston, C2 and C3 clutch, Replaces A58379, Order A64487

1шт.

22

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

C2 clutch, See A42886 seal kit, Ref. 30

1шт.

23

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

external, 8" I.D., teflon lip, C2 clutch, also Order (1) A62642 wire, See A42886 seal kit, Ref. 30

1шт.

24

A62642

ELECTRICAL WIRE

WIRE seal lip, 25-1/2" long, 22 ga., See A42886 seal kit, Ref. 30

1шт.

25

A58380

PISTON

C2 clutch, Order A66392

1шт.

26

A58094

SPRING

return, belleville, C2 clutch, replace all four bellville springs if some are found to be defective

2шт.

27

A61295

HUB

C2 clutch

1шт.

30

A42886

SEAL KIT

seal, powershift clutch, Includes Ref. 31 - 38

1шт.

31

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

oil tube, distributor cover, Replaces A18414

6шт.

32

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING oil seal, C2 and C3 clutch

8шт.

33

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

external, C1, C2 and C3 piston

3шт.

34

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

internal, C1, C2 and C3 piston

3шт.

35

A58396

SEAL,318.39mm ID x 3.23mm Thk

external, C4 clutch

1шт.

36

A58397

SEAL,227.13mm ID x 3.23mm Thk

internal, C4 clutch

1шт.

37

A62643

ELECTRICAL WIRE

WIRE seal lip, use w/ A58396 seal

1шт.

38

A62642

ELECTRICAL WIRE

WIRE seal lip, use w/ A58381 seal

3шт.
