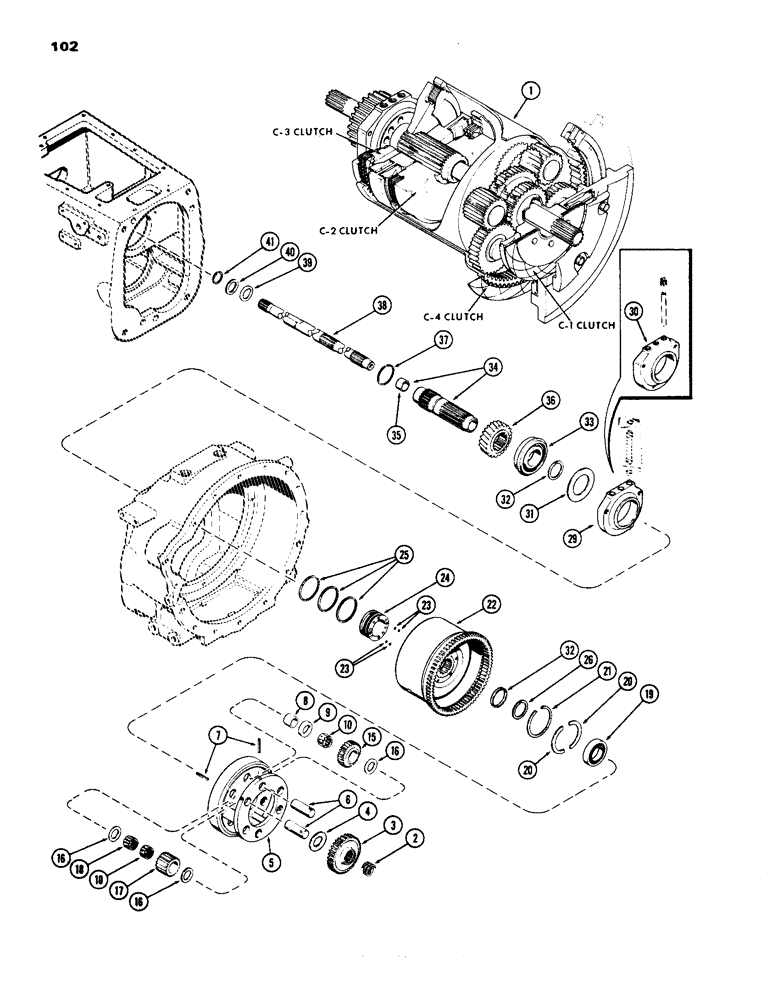

Запчасти Case IH 1070 (102) - PLANETARY AND OUTPUT SHAFT, POWER SHIFT (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

CLUTCH ASSY. powershift and planetary, Includes all Ref. on Figure 100 - 104, Includes Ref. 2 - 41

1шт.

2

A59933

SNAP RING,#118, 1.105", Ext, Spiral

RING snap, P.T.O. drive shaft

1шт.

3

A58399

GEAR

trans. and P.T.O. front drive shaft

1шт.

4

A58400

WASHER

thrust, trans. and P.T.O. front drive shaft gear

1шт.

NSS

NOT SOLD SEPARAT

CARRIER ASSY. planetary with gears, not illustrated, Includes Ref. 5 - 21

1шт.

5

A58066

CARRIER

planetary

1шт.

6

A58067

PIN,25.4mm OD x 69.6mm L

planetary gear, 1 x 2-3/4"

6шт.

7

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, , Planetary gear pin to carrier 3/16" x 3/4", Slotted

6шт.

8

58407

SPACER planetary narrow gear, 1 x 1-1/4 x 49/64"

3шт.

9

A58406

SPACER

WASHER thrust, planetary gear, 1 x 1-3/4 x 1"

3шт.

10

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING roller needle, planetary gear, 1 x 1-5/16 x 1"

6шт.

15

A58405

GEAR

planetary, narrow width, 36T

3шт.

16

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

thrust, planetary narrow gear, 1 x 1-3/4 x 1/32"

9шт.

17

A58408

GEAR

planetary, wide width, 24T

3шт.

18

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING needle, planetary wide gear, 1 x 1-1/32 x 3/4"

3шт.

19

A58080

BALL BEARING,1.7717" ID x 2.9528" OD x 0.6249"

BEARING ball, planetary output shaft, front

1шт.

20

A58081

CARRIER

RETAINER planetary carrier ball bearing

2шт.

21

G46143

RING

snap, planetary carrier bearing

1шт.

22

NSS

NOT SOLD SEPARAT

PACK clutch, C2 and C3 clutch, See Figure 104

1шт.

23

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING oil sealing, hub, 19/64 x 29/64 x 1/16", C2 and C3 clutch, See A42886 seal kit, Figure 104

4шт.

24

A58103

HUB

oil distributor

1шт.

25

A58384

RING

seal, oil distributor hub, If the oil distributor hub seal rings are found to be defective, replace all three rings

3шт.

26

A61296

SPACER

bearing, C2 clutch hub

1шт.

29

A61676

COVER ASSY

COVER oil distributor, See Figure 118 for oil tubes, 1st used trac. ser. no. 8650101

1шт.

30

A58383

COVER ASSY

COVER oil distributor, See Figure 118 for oil tubes, used prior to trac. ser. no. 8650101

1шт.

31

A64764

GUARD

SHIELD oil, planetary output shaft center ball bearing, Replaces A58101

1шт.

32

A27089

SNAP RING,2.36mm Thk, Ext

RING snap, external, planetary output shaft

2шт.

33

A58098

BALL BEARING,1.9685" ID x 4.58" OD x 1.063"

BEARING ball, oil shield

1шт.

34

A58459

SHAFT

ASSY. planetary output drive w/ bushing, Includes Ref. 35

1шт.

35

A58376

BUSHING

planetary output drive shaft

1шт.

36

A62128

GEAR

drive, pinion, Replaces A58099

1шт.

37

A58100

SNAP RING,#215, 2.026", Ext

RING snap, retaining, planetary output drive gear

1шт.

38

A59932

SHAFT

front drive, trans. and P.T.O.

1шт.

39

59934

WASHER thrust, planetary shaft

1шт.

40

A59935

BUSHING

SPACER thrust, 1-1/4 x 1-45/64 x 7/32"

1шт.

40

A59936

BUSHING

SPACER thrust, 1-1/4 x 1-45/64 x 15/64"

1шт.

40

A59937

BUSHING

SPACER thrust, 1-1/4 x 1-45/64 x 1/4"

1шт.

40

A59938

BUSHING

SPACER thrust, 1-1/4 x 1-45/64 x 17/64"

1шт.

41

A59939

RING

snap retaining, planetary shaft

1шт.
