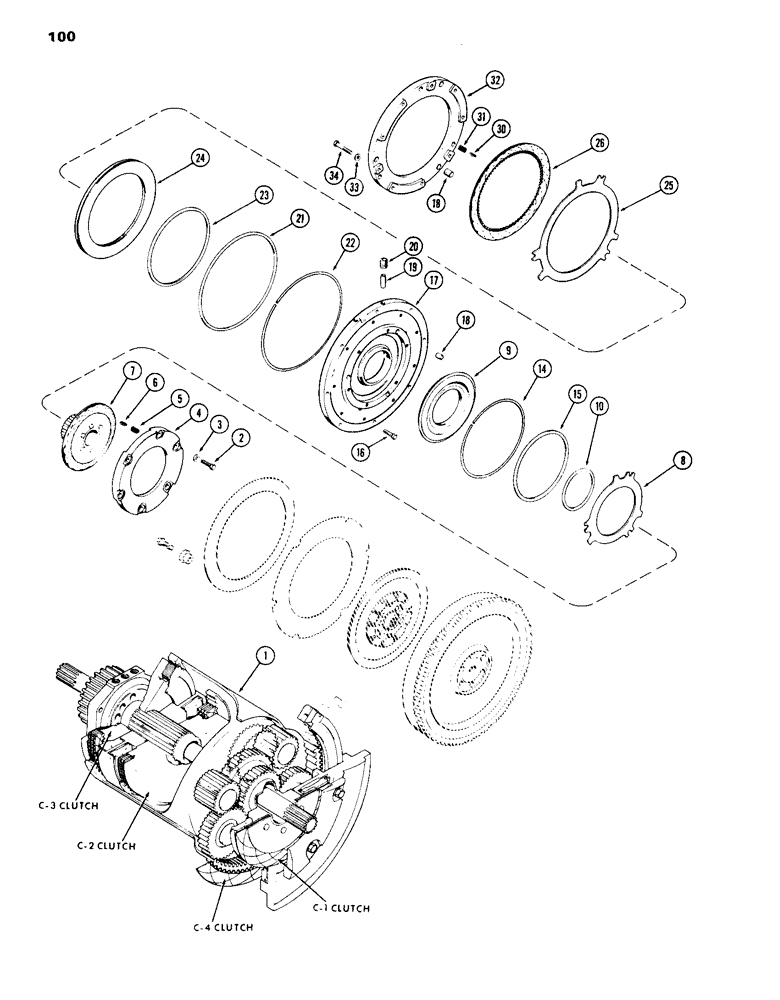

Запчасти Case IH 1070 (100) - C-1 AND C-4 CLUTCHES, POWER SHIFT (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

CLUTCH ASSY. powershift and planetary, Includes all Ref. on Figure 100 - 104, Includes Ref. 2 - 34

1шт.

2

113-245

X

BOLT, 3/8 x 1-1/2" N.C. hex., C1 clutch

6шт.

3

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

steel, 13/32 x 13/16 x 5/64"

6шт.

4

A58390

PLATE

reaction, C1 clutch

1шт.

5

A58391

SPRING

return, outer, C1 clutch, 3/4" free length, 17/32" O.D.

3шт.

6

A60596

SPRING

return, inner, C1 clutch, 3/4" free length, 23/64" O.D.

3шт.

7

A62418

LARGE PLATE

PLATE ASSY. sun gear and clutch, C1 clutch, Replaces A59050

1шт.

8

A58392

BRAKE DISC

PLATE steel, C1 clutch, Order A65524

1шт.

9

A58380

PISTON

C1 clutch, Order A66392

1шт.

10

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

internal, approx. 4-1/2" I.D., teflon lip, C1 clutch, See A42886 seal kit, Figure 104

1шт.

14

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

external, 8" I.D., teflon lip, C1 clutch, also Order (1) A62642 wire, See A42886 seal kit, Figure 104

1шт.

15

A62642

ELECTRICAL WIRE

WIRE seal lip, 25-1/2" long, 22 ga., See A42886 seal kit, Figure 104

1шт.

16

113-245

X

BOLT, 3/8 x 1-1/2" N.C. hex., C1 and C4 clutch

8шт.

17

A59051

CARRIER

ASSY. piston, w/ pins, C1 and C4 clutch, Includes Ref. 18

1шт.

18

A58059

PIN

reaction plate, C1 and C4 clutch

6шт.

Pins should protrude from Carrier Assy, Ref. 17, 1/4"

1шт.

19

A58049

TUBE

oil, piston, C1 and C4 clutch

2шт.

20

A58050

PLUG

piston oil tube, C1 and C4 clutch

2шт.

21

A58396

SEAL,318.39mm ID x 3.23mm Thk

external, 12-1/2" I.D., teflon lip, C4 clutch, also order (1) A62643 wire, See A42886 seal kit, Figure 104

1шт.

22

A62643

ELECTRICAL WIRE

WIRE seal lip, 38-3/4" long, 22 ga., See A42886 seal kit, Figure 104

1шт.

23

A58397

SEAL,227.13mm ID x 3.23mm Thk

internal, 9" I.D., teflon lip, C4 clutch, See A42886 seal kit, Figure 104

1шт.

24

A58395

PISTON

C4 clutch

1шт.

25

A58056

PLATE

steel, C4 clutch

1шт.

26

A58057

PLATE

sintered, C4 clutch

1шт.

30

A60596

SPRING

return, inner, C4 clutch, 3/4" free length, 23/64" O.D.

3шт.

31

A58391

SPRING

return, outer, C4 clutch, 3/4" free length, 17/32" O.D.

3шт.

32

A58394

PLATE

reaction, C4 clutch

1шт.

33

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

steel, 13/32 x 13/16 x 5/64"

9шт.

34

113-244

X

BOLT, 3/8 x 2-1/2" N.C. hex

9шт.
