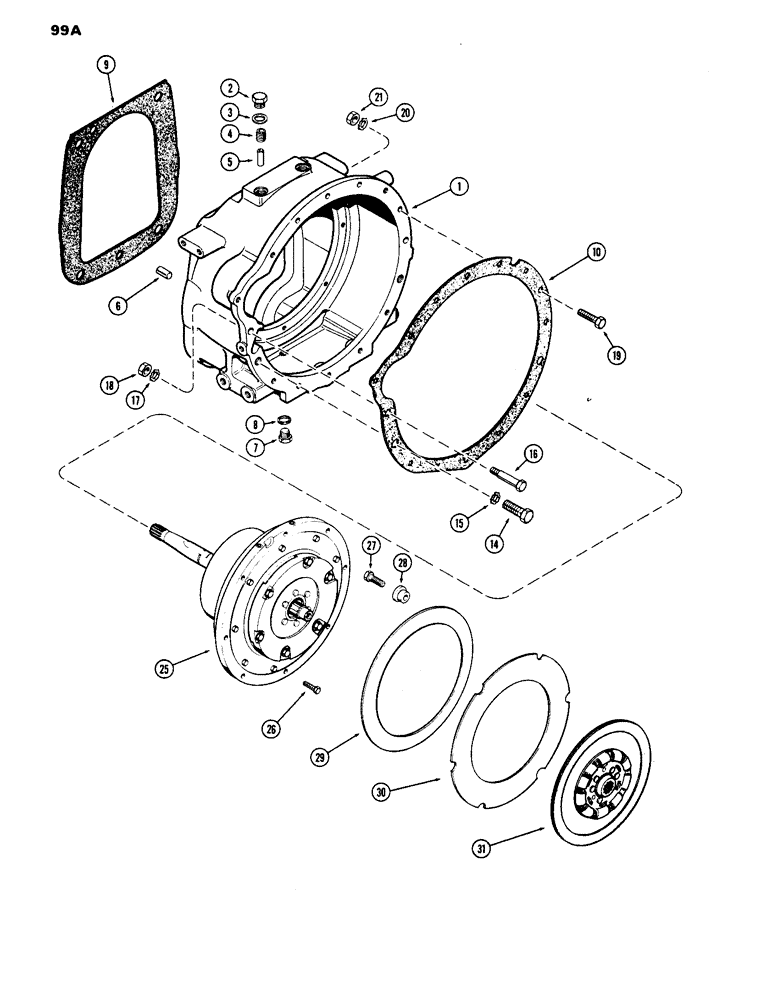

Запчасти Case IH 1070 (099A) - CLUTCH HOUSING & CLUTCH, POWER SHIFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A58137
HOUSING clutch
1шт.
2
214389
PLUG,3/4" - 16 ORB
Assy, Clutch hsg., Includes Ref. 3 Hex Hd, 3/4"-16 ORB
2шт.
3
A27410
O-RING,0.487" ID x 0.693" OD x 0.103"
1/2 x 11/16 x 3/32"
1шт.
4
A58050
PLUG
piston oil tube, C1 and C4 clutch
2шт.
5
A58049
TUBE
oil, piston, C1 and C4 clutch
1шт.
6
A28269
PIN
dowel, clutch hsg. to trans. hsg., 3/4 x 1-1/4"
2шт.
7
A14280
PLUG
drain, 3/4", clutch housing
2шт.
8
A58608
GASKET
drain plug, 3/4 x 1 x 5/64"
2шт.
9
A58138
GASKET
clutch hsg. to transmission hsg.
1шт.
10
A58139
GASKET
clutch, Serial Range: hsg.-engine
1шт.
14
13-1236
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5
2шт.
15
A34651
LOCK WASHER
shakeproof, 3/4" ext.
2шт.
16
A61040
STEP BOLT
BOLT dowel, 1/2 x 3" N.C. hex.
1шт.
16
A61041
STEP BOLT
BOLT dowel, 1/2 x 2-3/16" N.C. hex.
1шт.
17
A34650
LOCK WASHER
shakeproof, 1/2" ext.
2шт.
18
25-108
NUT,1/2"-13, G5
1/2" N.C. hex.
2шт.
19
13-826
BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5
5шт.
19
113-465
BOLT
1/2 x 2" N.C. hex.
4шт.
19
113-466
BOLT
1/2 x 2-1/4" N.C. hex.
2шт.
20
A34650
LOCK WASHER
shakeproof, 1/2" ext.
11шт.
21
25-168
NUT,1/2"-13, G5, Hvy
1/2" N.C. hex.
1шт.
25
NSS
NOT SOLD SEPARAT
CLUTCH ASSY. powershift and planetary, See Figures 100, 102, and 104
1шт.
26
113-245
X
BOLT, 3/8 x 1-1/2" N.C. hex
8шт.
27
113-401
BOLT
1/2 x 1-3/4" N.C. hex
6шт.
28
A59133
RETAINER
clutch spring, torque limiter
6шт.
29
A61000
SPRING
belleville, torque limiter, If driven plate A58388 is replaced it is recommended pressure plate A58036 and belleville spring A61000 also be replaced
1шт.
30
A58036
PLATE
pressure, torque limiter, If driven plate A58388 is replaced it is recommended pressure plate A58036 and belleville spring A61000 also be replaced
1шт.
31
A58388
PLATE
ASSY., 12" driven member, If driven plate A58388 is replaced it is recommended pressure plate A58036 and belleville spring A61000 also be replaced
1шт.
Выбрано товаров: 28
