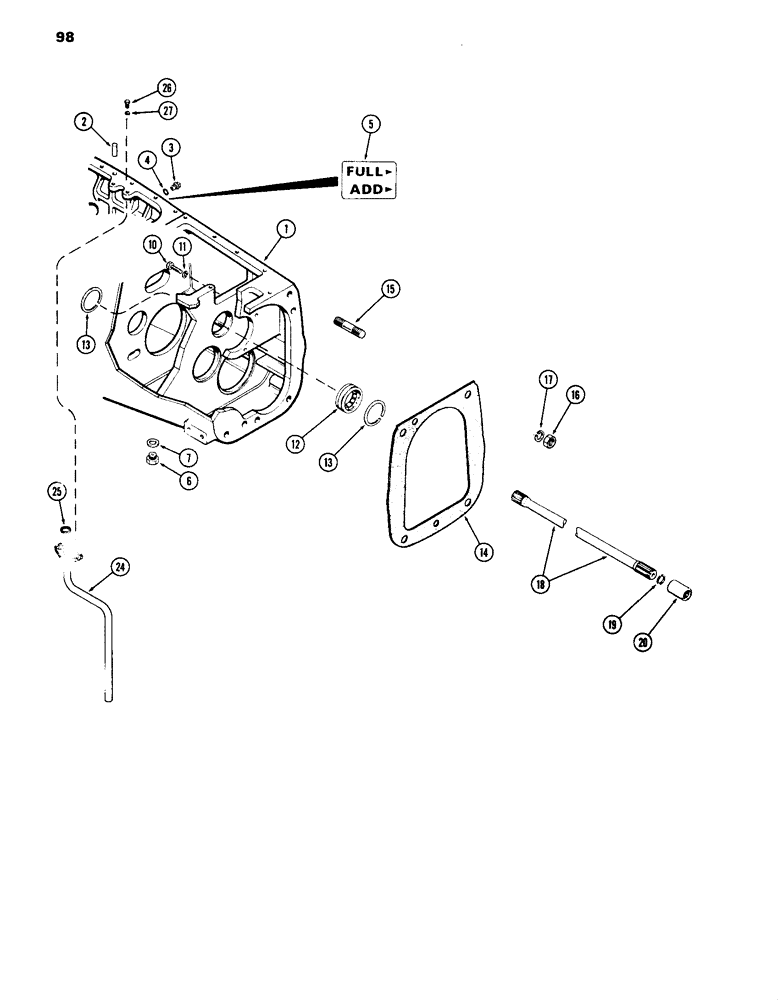

Запчасти Case IH 1070 (098) - TRANSMISSION HOUSING, POWER SHIFT (06) - POWER TRAIN

1

A61181

HOUSING trans., 1st used trac. ser. no. 8650101, See Figure 134 for bearing changes

1шт.

1

A58419

HOUSING trans., used prior to trac. ser. no. 8650101, See Figure 134 for bearing changes

1шт.

2

A7077

DOWEL

PIN dowel, trans. hsg. to top cover, 1/2 x 1-3/8"

2шт.

3

A58420

GAUGE

ASSY. oil sight, glass, Includes Ref. 4

2шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32"

1шт.

5

321-1642

DECAL

trans. oil level, 1st used trac. ser. no. 8656749

1шт.

6

A14280

PLUG

drain, transmission housing, 3/4"

3шт.

7

A58608

GASKET

drain plug, trans. hsg., 3/4 x 1 x 5/64"

3шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8 x 1-1/2" N.C. hex.

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

A32751

BEARING ASSY,43.96mm ID x 72mm OD x 26.99mm W

BEARING roller, planetary shaft, rear

1шт.

13

A28153

RING

snap, external, planetary shaft, rear bearing

2шт.

14

A58138

GASKET

clutch housing to trans. housing

1шт.

15

A7073

STUD

trans. housing to clutch housing, 7/8" N.F. x 4"

4шт.

16

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

17

25-1114

NUT,7/8"-14, G5

7/8" N.F. hex.

4шт.

18

A58414

SHAFT

drive, rear, P.T.O., See Figure 180

1шт.

19

A32441

RING, SNAP

RING snap, internal, drive shaft, rear, P.T.O.

1шт.

20

A37662

COUPLING, BREAK AWAY

COUPLING drive shaft, rear, P.T.O.

1шт.

24

A58371

TUBE

hyd. fluid return

1шт.

25

A32343

SEAL

hyd. fluid return tube, 47/64 x 1-13/64 x 13/64"

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.
