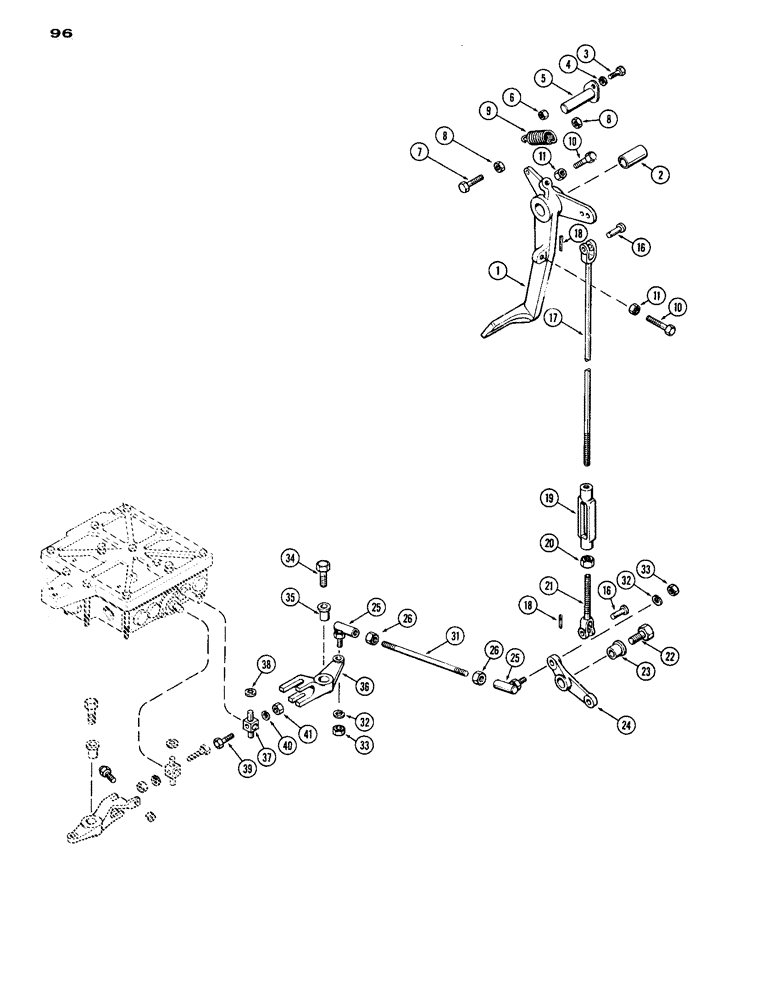

Запчасти Case IH 1070 (096) - CLUTCH CONTROLS, POWER SHIFT (06) - POWER TRAIN

1

A60300

PEDAL

ASSY. foot clutch, Includes Ref. 2

1шт.

2

A59475

BUSHING

clutch pedal

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Clutch pedal pivot shaft to firewall Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

4

92-5

LOCK WASHER,5/16"

1шт.

5

A60305

SHAFT

pivot, foot clutch pedal

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16" N.C.

1шт.

7

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Spring anchor Hex, 3/8"-16 x 1 3/4", G5

1шт.

8

25-146

JAM NUT,Jam, 3/8"-16, G5

hex., 3/8" N.C. jam

2шт.

9

A60302

SPRING

tension, clutch return, Order A137396

1шт.

10

A59472

BOLT

stop, clutch pedal

2шт.

11

25-145

JAM NUT,Jam, 5/16"-18, G5

hex., clutch pedal stop bolt, 5/16" N.C. jam

2шт.

16

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Upper & lower links 3/8" x 1.060"

2шт.

17

A60310

LINK

upper, clutch adjusting

1шт.

18

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", clevis pin

2шт.

19

A60303

TURNBUCKLE

3/8" clutch adjusting links

1шт.

20

25-106

NUT,3/8"-16, G5

hex., lower link, 3/8" N.C.

1шт.

21

A60313

LINK

lower, clutch adjusting

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Clutch oper. lever Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

23

A59772

BUSHING

clutch operating lever

1шт.

24

A59177

LEVER

clutch operating

1шт.

25

A60307

JOINT

ball, clutch operating lever to clutch rod to clutch spool lever

2шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

hex., 3/8" N.C. jam, clutch rod

2шт.

31

A60304

ROD

clutch, operating, Serial Range: lever-spool

1шт.

32

92-6

LOCK WASHER,3/8"

ball joint 3/8"

2шт.

33

25-156

JAM NUT,Jam, 3/8"-24, G5

hex., 3/8" N.C. jam, ball joint

2шт.

34

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Clutch spool oper. lever Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

35

A59772

BUSHING

clutch spool operating lever

1шт.

36

A60308

LEVER

operating, clutch spool

1шт.

37

A59150

LINK

operating, clutch spool

1шт.

38

A59773

RING

retaining, clutch spool operating link

1шт.

39

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Clutch spool oper. link Hex, 1/4"-20 x 1 1/4", G5

1шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

41

25-104

NUT,1/4"-20, G5

1шт.
