Запчасти Case IH 1070 (095A) - SIDE RAIL ATTACHMENT (05) - STEERING

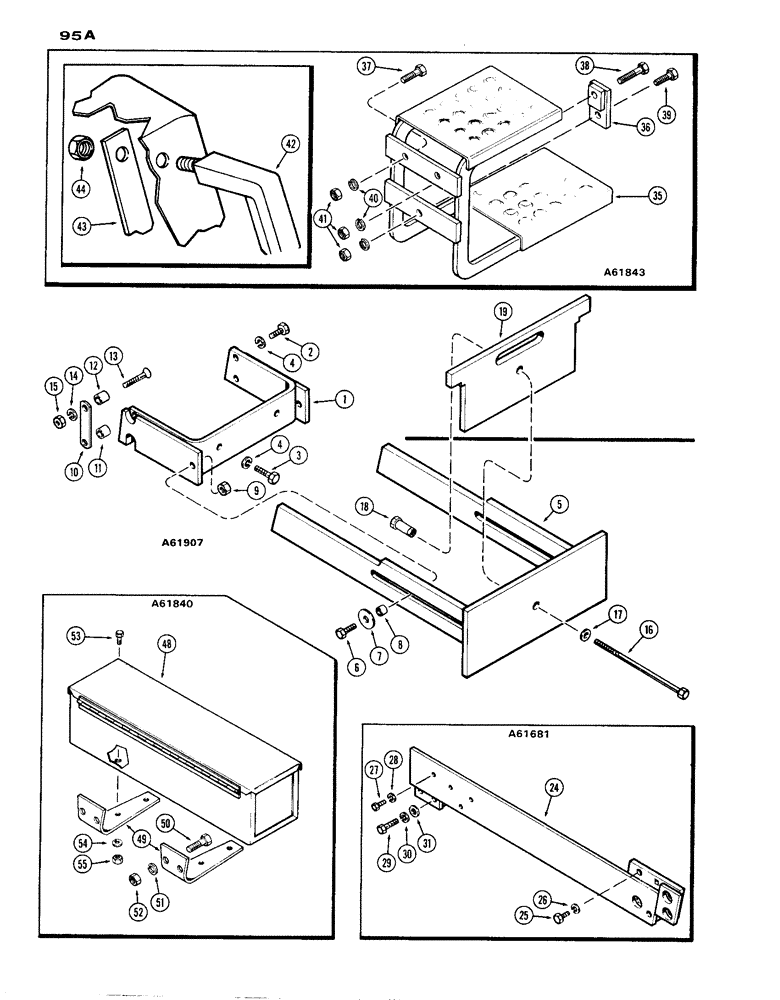

Схема запчастей Case IH 1070 - (095A) - SIDE RAIL ATTACHMENT (05) - STEERING
42
39
31
44
2
7
9
4
49
52
14
8
43
38
29
51
19
36
10
40
15
30
26
25
12
50
5
17
53
13
48
24
28
18
54
41
55
6
16
11
35
3
37
27
4
1

Артикул

Название

Примечание

Количество

A61907

KIT adapter, front end weight, machinery item, Includes Ref. 1 - 18

1шт.

1

A61321

FRAME

weight adapter, Order A64944

1шт.

2

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Adapter frame Hex, 3/4"-10 x 2", G5

4шт.

3

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

Adapter frame Hex, 3/4"-10 x 3 1/2", G5

2шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

5

A61331

FRAME weight carrier

1шт.

6

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

Carrier frame Hex, 3/4"-10 x 2 3/4", G5

2шт.

7

A61334

WASHER step, 17/32 x 1-1/2 x 1/4"

2шт.

8

A62109

SPACER

frame roller, 13/16 x 1-1/8 x 13/16"

2шт.

9

25-1012

NUT,3/4"-10, G5

2шт.

10

A61336

STRAP

weight frame clamp

2шт.

11

A62109

SPACER

strap, lower, 13/16 x 1-1/8 x 13/16"

2шт.

12

A62110

SPACER strap, upper, 13/16 x 1-1/8 x 1-9/16"

2шт.

13

19-1264

PLOW BOLT

BOLT strap, 3/4 x 4" N.C., plow hd.

4шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

15

25-1012

NUT,3/4"-10, G5

4шт.

A61906

KIT hardware, front weight attachment, Includes Ref. 16, 17 and 18

1шт.

16

A61342

BOLT, 1/2 x 5" N.C. hex., for 1 thru 7 weights

1шт.

16

A61343

BOLT, 1/2 x 12" N.C. hex., for 8 thru 14 weights

1шт.

17

A61341

WASHER

weight bolt, 17/32 x 1-1/2 x 1/4"

1шт.

18

A61338

NUT

tube, weight bolt

1шт.

19

A61345

WEIGHT front end, 75 lbs. ea, machinery item

1шт.

A61681

KIT side rail, machinery item, Includes Ref. 24 - 31

1шт.

24

A61346

RAIL R.H. side

1шт.

24

A61347

RAIL L.H. side

1шт.

25

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Rail, front Hex, 3/4"-10 x 2", G5

8шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

27

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Rail, rear, upper Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Rail, rear, lower Hex, 5/8"-11 x 2 1/2", G5

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

195-2097

WASHER,15/16" x 1 3/4" x .083"

15/16 x 1-3/4 x 14 ga.

4шт.

A61843

ATTACHMENT mounting step, machinery item, Includes Ref. 35 - 44

1шт.

35

A61582

STEP R.H or L.H.

1шт.

36

A61585

ADAPTER mounting step

1шт.

37

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Step to rail Hex, 1/2"-13 x 2", G5

2шт.

38

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

adapter, 1/2 x 2-1/2" N.C. hex.

1шт.

39

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

adapter, 1/2 x 1-3/4" N.C. hex.

1шт.

40

92-8

LOCK WASHER,1/2"

4шт.

41

25-108

NUT,1/2"-13, G5

1/2" N.C. hex.

4шт.

42

A60530

HANDLE

hood and fender

2шт.

43

A59338

PLATE

handle, fender

1шт.

44

230-4216

LOCK NUT,3/8"-16, GA

NUT handle, 3/8" N.C. hex.

4шт.

A61840

BOX, TOOL

ATTACHMENT tool box, side mount, Includes Ref. 48 - 55

1шт.

48

A59844

BOX, TOOL

BOX ASSY. tool

1шт.

49

A61568

SUPPORT

tool box

2шт.

50

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

Support Hex, 1/2"-13 x 1 7/8", G5

4шт.

51

92-8

LOCK WASHER,1/2"

4шт.

52

25-108

NUT,1/2"-13, G5

1/2" N.C. hex.

4шт.

53

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

tool box, 5/16 x 7/8" N.C. hex.

4шт.

54

92-5

LOCK WASHER,5/16"

4шт.

55

131-4

LOCK NUT,5/16"-18, GB

NUT, 5/16" N.C. hex.

4шт.

Выбрано товаров: 52
