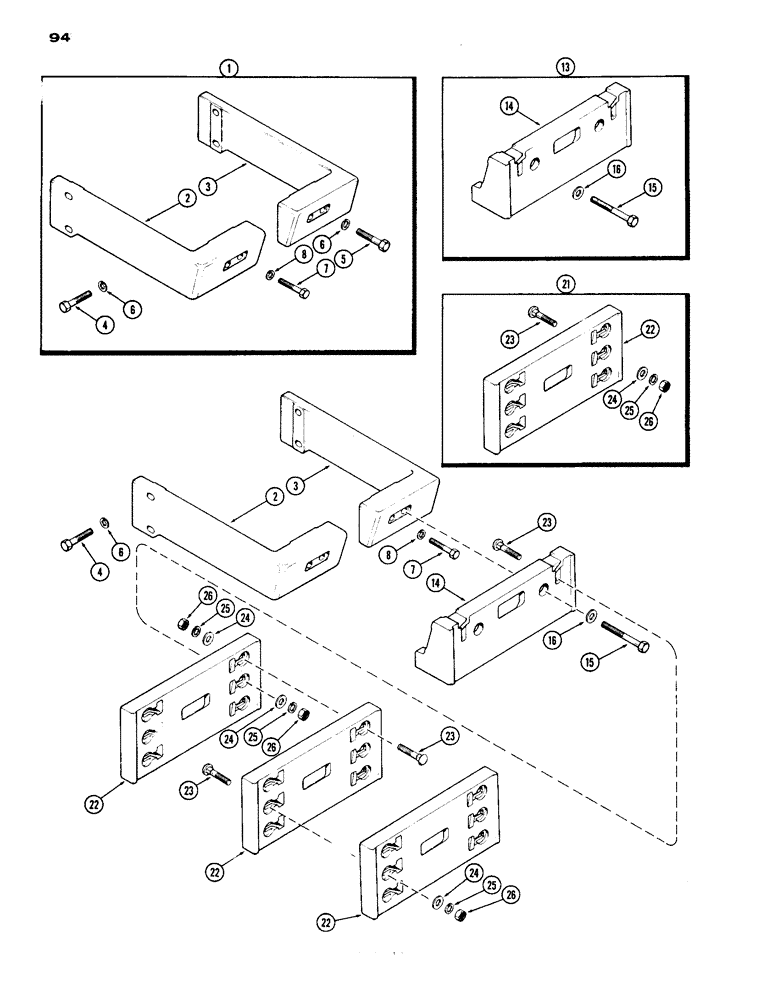

Запчасти Case IH 1070 (094) - FRONT END WEIGHTS (05) - STEERING

1

A60536M

KIT weight, front end wrapper, machinery item, Includes Ref. 2 - 8

1шт.

2

A59352M

WEIGHT wrapper, R.H., machinery item

1шт.

3

A59353M

WEIGHT wrapper, L.H., machinery item

1шт.

4

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

5

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

7

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

hex. hd., 5/8 x 4" N.C.

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

A60537M

KIT weight, adapter, front end wrapper, machinery item, used w/ A60536 weight kit, one adapter only per tractor, Includes Ref. 14, 15 and 16

1шт.

14

A59354M

ADAPTER wrapper weight, machinery item

1шт.

15

A59351

BOLT

hex. hd., adapter to front end, 3/4"-10 N.C. x 7"

2шт.

16

195-46

WASHER,3/4" x 1 3/4" x .148"

plain, 3/4"

2шт.

21

A60538M

KIT weight, additional, front end wrapper, used w/ A60537 weight kit, machine item, Includes Ref. 22 - 26

1шт.

22

A59355M

WEIGHT additional front end machinery item

1шт.

23

B90584

BOLT

3/4 x 4" N.C. round head, square neck

2шт.

24

195-46

WASHER,3/4" x 1 3/4" x .148"

plain, 3/4"

2шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

26

25-1012

NUT,3/4"-10, G5

2шт.
