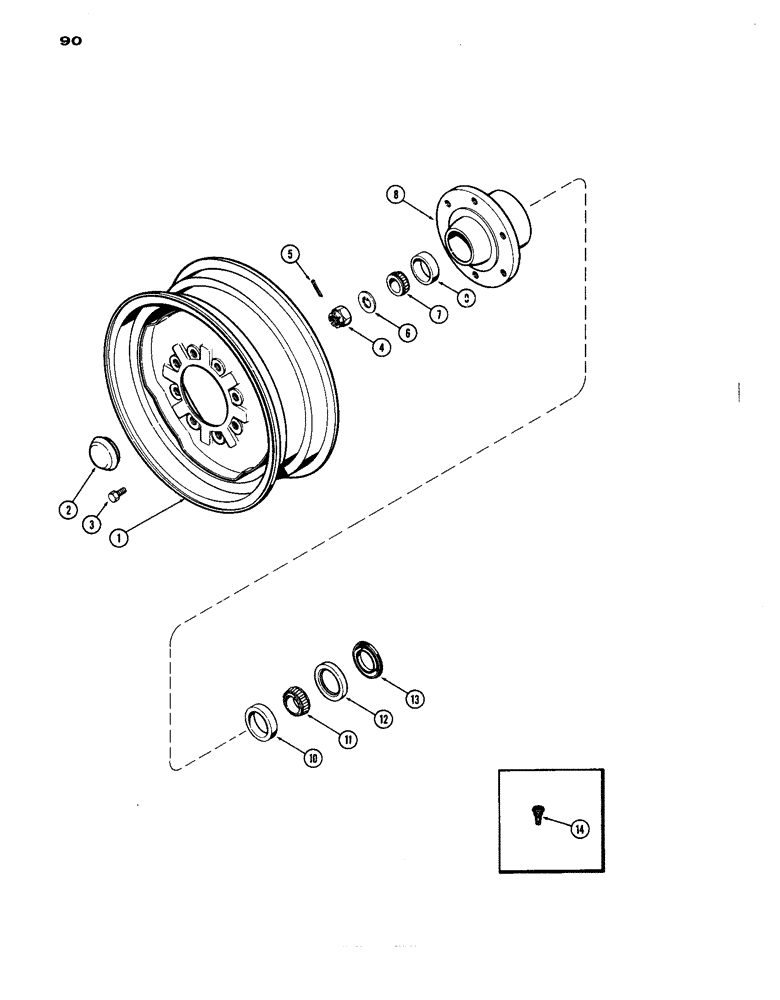

Запчасти Case IH 1070 (090) - FRONT WHEELS (05) - STEERING

1

A61574

WHEEL

front, takes 9.50 x 20 tire, 1-13/16" offset, Replaces A60015

2шт.

2

A29425

CAP

hub, front wheel

2шт.

3

B18264

WHEEL BOLT

BOLT wheel to hub, 9/16-18 x 1-3/32"

16шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT hex., 1-1/8" N.F., slotted

2шт.

5

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

6

A26789

BEARING WASHER

WASHER spindle, wheel

2шт.

7

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE bearing, outer, front wheel

2шт.

8

A57337

HUB ASSY.

front wheel

2шт.

9

A27631

CUP

front wheel outer bearing

1шт.

10

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP front wheel inner bearing

1шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE front wheel inner bearing

2шт.

A57250

OIL SEAL

KIT oil seal and retainer, not illustrated, Includes Ref. 12 and 13

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL oil, outer front wheel, Order A57250

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL oil retainer, inner, Order A57250

1шт.

14

A38261

VALVE

rim, tubeless tire

1шт.
