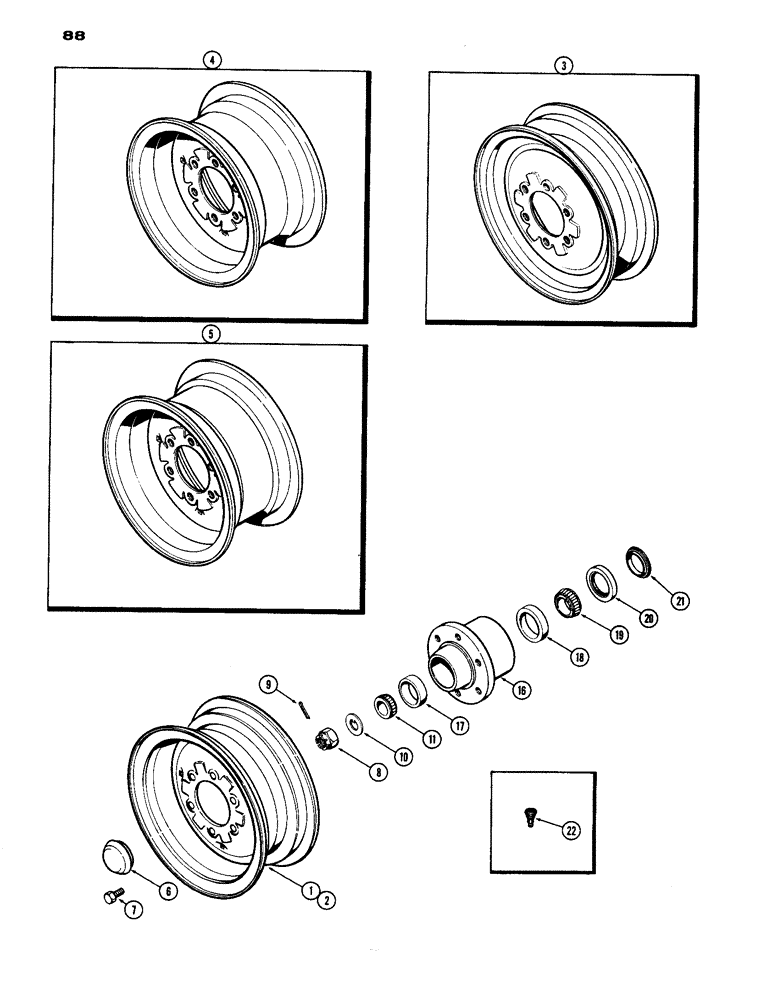

Запчасти Case IH 1070 (088) - FRONT WHEELS (05) - STEERING

1

G57007

WHEEL

front, 1-1/8" offset, takes 7.50 x 15 tire

2шт.

2

G57046

WHEEL ASSY.

WHEEL front, 2-1/4" offset, takes 7.50 x 16 tire

2шт.

3

A29050

WHEEL

front, 2-1/4" offset, takes 6.00 x 16 tire

2шт.

4

A60405

WHEEL

front, 1-1/8" offset, takes 10.00 x 16 tire

2шт.

5

A57879

RIM

WHEEL front, 1-1/8" offset, takes 11.00 x 15 tire

2шт.

6

A29425

CAP

hub, front wheel

2шт.

7

B18264

WHEEL BOLT

BOLT wheel to hub, 9/16"- 18 x 1-3/32"

12шт.

8

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT hex., wheel spindle, 1-1/8" N.F. thick, slotted

2шт.

9

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Wheel spindle 3/16" x 1 3/4"

2шт.

10

A26789

BEARING WASHER

WASHER front wheel spindle

2шт.

11

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE outer bearing, front wheel, 1-3/8" I.D.

2шт.

16

A57336

HUB

ASSY. front wheel

2шт.

17

A27631

CUP

front wheel outer bearing, 2-7/8" O.D.

1шт.

18

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP front wheel inner bearing, 3-17/64" O.D.

1шт.

19

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE front wheel inner bearing, 1-3/4" I.D.

2шт.

A57250

OIL SEAL

KIT oil seal and retainer, not illustrated, Includes Ref. 20 and 21

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL oil, outer, front wheel, Order A57250

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL oil, inner, front wheel, Order A57250

1шт.

22

A38261

VALVE

rim, tubeless tire

1шт.
