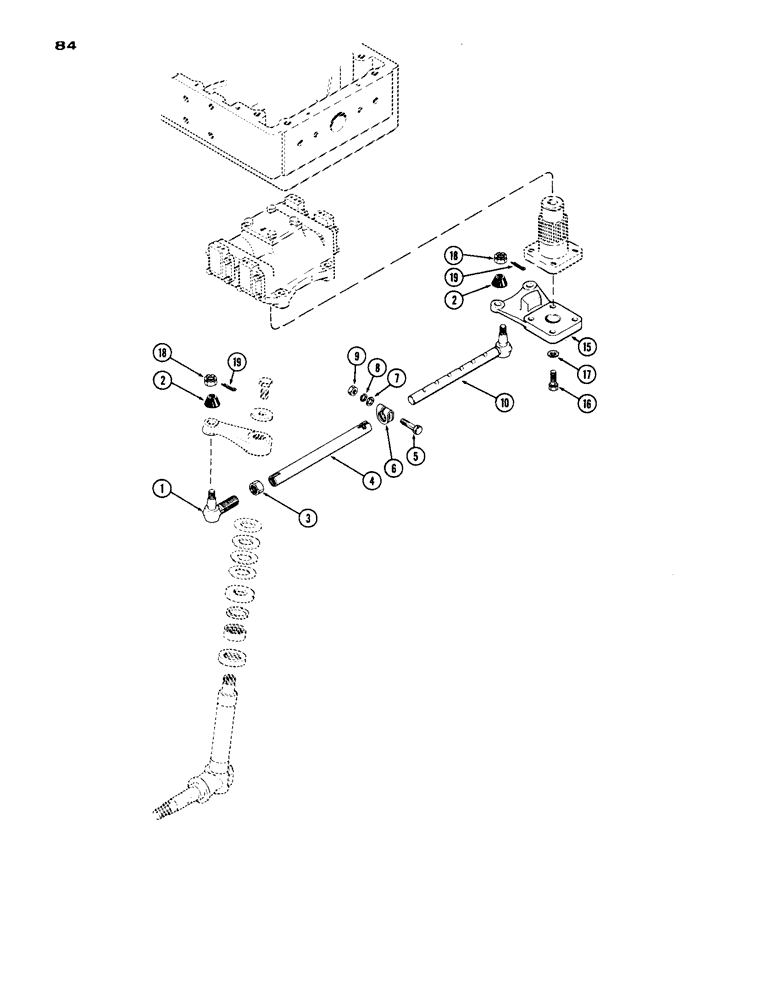

Запчасти Case IH 1070 (084) - TIE RODS, 53" TO 73" TREAD (05) - STEERING

1

A44762

ROD

END drag link, Replaces A41512

2шт.

2

A41515

SEAL

drag link end

4шт.

3

A41511

NUT

jam, 1"-16, R.H. thread

2шт.

4

A59657

TUBE

drag link, notched, 14-11/16" long

2шт.

5

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex. hd., clamp, 1/2 x 2-1/2" N.C.

2шт.

6

A41561

CLAMP

drag link

2шт.

7

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

hex., 1/2" N.C.

2шт.

10

A59656

ROD

LINK drag, 6 notches

2шт.

15

A59652

ARM

center steering

1шт.

16

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

4шт.

17

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

18

25-1310

SLOTTED NUT,5/8"-18, G5

NUT hex., 5/8" N.F., slotted

4шт.

19

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.
