Запчасти Case IH 1070 (080) - ADJUSTABLE FRONT AXLE, 53" TO 73" TREADS (05) - STEERING

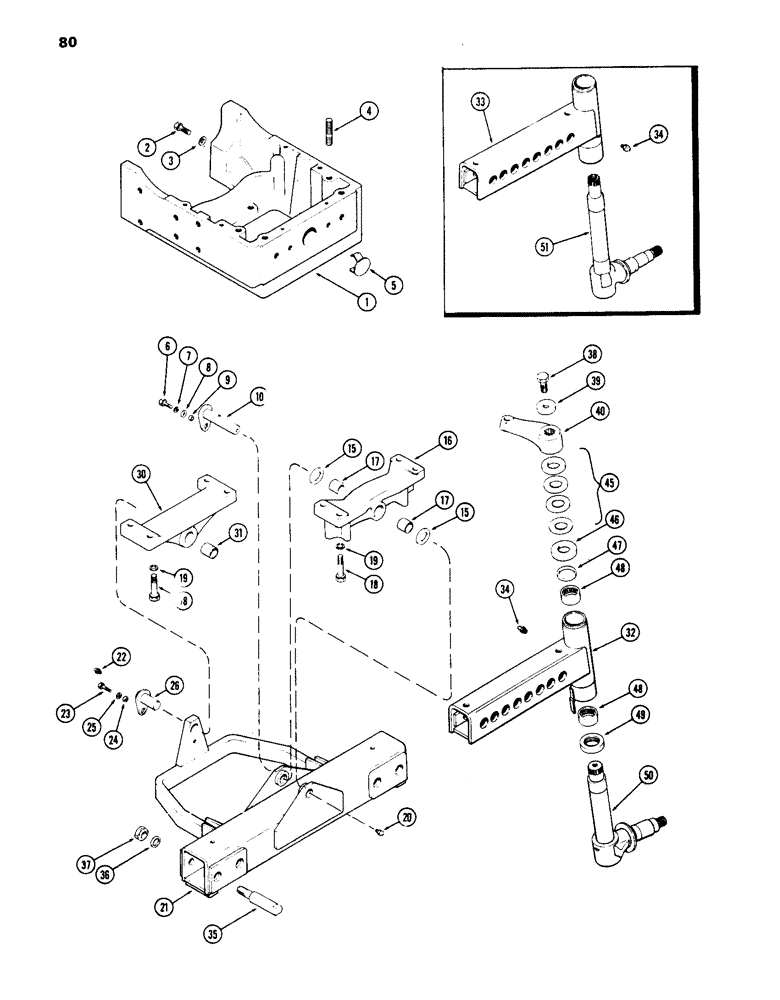

Схема запчастей Case IH 1070 - (080) - ADJUSTABLE FRONT AXLE, 53" TO 73" TREADS (05) - STEERING
35
9
15
5
32
17
30
50
26
6
37
49
15
3
17
33
46
36
40
48
7
4
22
31
48
47
19
34
18
18
25
21
38
16
39
20
45
8
23
10
2
34
1
19
51
24

Артикул

Название

Примечание

Количество

1

A59158

SUPPORT

front end axle

1шт.

2

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

3

A34651

LOCK WASHER

shakeproof, 3/4" ext

4шт.

4

A59423

STUD grille, 3/4 x 3-45/64", special

4шт.

5

A35216

COVER

PLUG, 2-1/4" dia., Replaces 205-69

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

195-25

WASHER,3/8"

13/32 x 13/16 x 5/64"

1шт.

9

A59660

SPACER

front axle pivot pin

1шт.

10

A60568

PIN,31.67mm OD x 158.5mm L

pivot, front axle

1шт.

15

B18131

WASHER,32.16mm ID x 55.63mm OD x 3.17mm Thk

thrust, front axle pivot pin

2шт.

16

A62028

PACKAGE, REPAIR

SUPPORT ASSY. front, axle pivot, Replaces A59612, Order A66039, Includes Ref. 17

1шт.

17

A59613

BUSHING,31.7mm ID x 38.18mm OD x 32mm L

1-1/4 x 1-1/2 x 1-1/4"

2шт.

18

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

8шт.

19

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, 1/8" P.T., straight

1шт.

21

A60585

AXLE ASSY. center section, Includes Ref. 22 - 26

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, 1/8" P.T., straight

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

24

A59660

SPACER

pivot pin, 13/32 x 9/16 x 9/32"

1шт.

25

195-25

WASHER,3/8"

13/32 x 13/16 x 5/64"

1шт.

26

A59628

PIN

pivot, rear support

1шт.

30

A59614

SUPPORT

ASSY. rear, axle pivot, Includes Ref. 31

1шт.

31

A59615

BUSHING,31.81mm ID x 38.2mm OD x 38.3mm L

1-1/4 x 1-1/2 x 1-1/2"

2шт.

32

A62314

AXLE

end section, R.H., 1st used trac. ser. no. 8675001

1шт.

32

A62315

AXLE end section, L.H., 1st used trac. ser. no. 8675001

1шт.

33

A59644

AXLE end section, R.H., used priot to trac. ser. no. 8675001

1шт.

33

A59645

AXLE end section, L.H., used prior to trac. ser. no. 8675001

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, front wheel king pin, 1/8" P.T., straight

2шт.

35

A64756

STEP BOLT

BOLT shoulder, end section to center section

4шт.

36

95-14

WASHER,7/8"

15/16 x 2-1/4 x 11/64"

4шт.

37

A59649

FASTENER

NUT two way lock, 7/8" N.C., Order A65435

4шт.

38

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

39

A65598

WASHER

front wheel spindle

2шт.

40

A57323

ARM

steering, front wheel, R.H.

1шт.

40

A57322

ARM

steering, front wheel, L.H.

1шт.

45

A24639

SHIM,.1345" Thk

Spindle (#10 gauge) .1345" Thk

1шт.

45

A24642

SHIM,.0598" Thk

Spindle (#16 gauge) .0598" Thk

1шт.

45

A24643

SHIM,.0359" Thk

Spindle (#20 gauge) .0359" Thk

1шт.

45

A24645

SHIM,.0149" Thk

Spindle (#28 gauge) .0149" Thk

1шт.

46

A7849

GUARD

SHIELD dust, spindle, upper

2шт.

47

A57273

OIL SEAL

oil, spindle, upper, 2 x 2-3/8 x 3/16"

2шт.

48

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING needle, spindle, lower and upper

4шт.

49

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING thrust, spindle, lower

2шт.

50

A62316

SPINDLE

front wheel, R.H. and L.H., 1st used trac. ser. no. 8675001, Order (1) A62915 and (1) A62918

2шт.

51

A59650

STEERING KNUCKLE

SPINDLE front wheel, R.H., used prior to trac. ser. no. 8675001

1шт.

51

A59651

STEERING KNUCKLE

SPINDLE front wheel, L.H., used prior to trac. ser. no. 8675001

1шт.

Выбрано товаров: 47
