Запчасти Case IH 1070 (079A) - A60207 STEERING VALVE (05) - STEERING

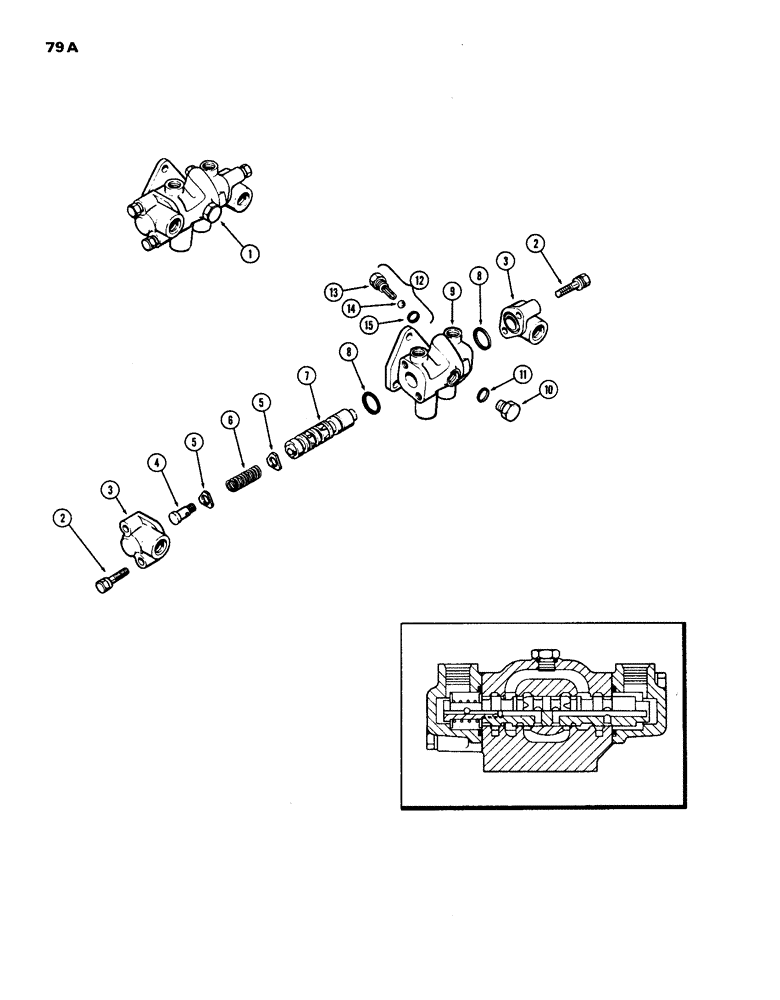

Схема запчастей Case IH 1070 - (079A) - A60207 STEERING VALVE (05) - STEERING
2
11
9
2
1
10
6
13
7
8
4
5
8
1
3
12
5
14
3

Артикул

Название

Примечание

Количество

1

A60207

VALVE

ASSY. steering, Includes Ref. 2 - 15

1шт.

2

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT, 3/8" N.C. thread w/ washer

4шт.

3

F19624

CAP

valve end

2шт.

4

F19623

SCREW,3/8" - 24 x 15/16"

centering, valve

1шт.

5

F19619

WASHER

centering, valve

2шт.

6

A42201

SPRING

centering, valve

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL valve, Order A60207

1шт.

8

F21003

O-RING,1.237" ID x 1.443" OD

1-1/4 x 1-29/64 x 7/64"

2шт.

9

NSS

NOT SOLD SEPARAT

BODY valve, Order A60207

1шт.

10

129998

PLUG,1/2" - 20 ORB

Assy. bleed, w/ O-ring, Valve body Hex Hd, 1/2"-20 ORB

1шт.

11

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

12

F82943

VALVE

KIT plug, o-ring, ball and roll pin, Includes Ref. 13, 14 and 15

1шт.

13

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

14

211-7

BALL,1/4" Dia

steel 1/4" Dia

1шт.

15

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

Выбрано товаров: 15
