Запчасти Case IH 1070 (078) - A64504 STEERING ACTUATOR, 1ST USED TRAC. SER. NO. 8693001 (05) - STEERING

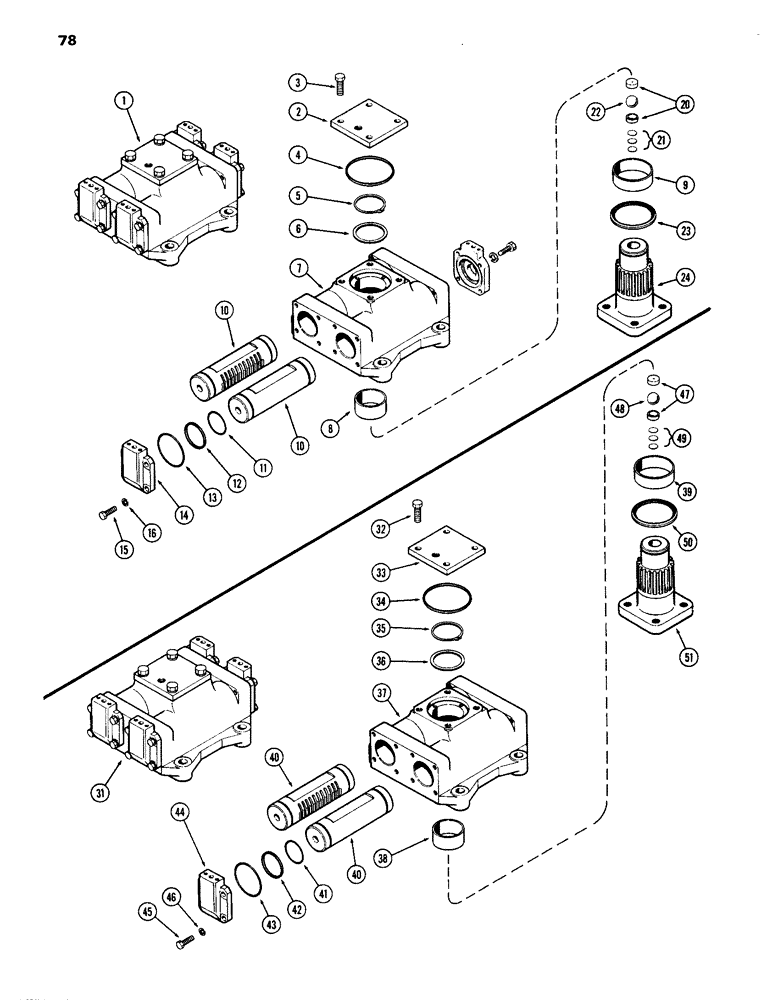

Схема запчастей Case IH 1070 - (078) - A64504 STEERING ACTUATOR, 1ST USED TRAC. SER. NO. 8693001 (05) - STEERING
4
50
8
16
41
38
44
6
2
34
32
23
11
24
22
12
21
40
46
51
5
49
10
13
14
31
43
10
9
7
1
42
36
37
3
15
35
47
39
33
48
20
40
45

Артикул

Название

Примечание

Количество

1

A64504

ACTUATOR

ASSY. complete, Includes Ref. 2 - 24

1шт.

2

A60218

COVER

top, housing

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

A60219

SEALING RING

O-RING cover seal, 4 x 4-17/64 x 9/64"

1шт.

Part of seal kit P/N A42399

1шт.

5

A60216

SNAP RING,#250, Ext

Ring, Snap, , spindle #250, Ext

1шт.

6

A60215

WASHER

thrust, spindle

1шт.

7

A60209

HOUSING

ASSY. actuator, Includes Ref. 8 and 9

1шт.

8

A60210

BUSHING

top, 2-1/2 x 2-11/16 x 1-23/64"

1шт.

9

A60211

BUSHING

bottom, 3-1/4 x 3-7/16 x 1-5/32"

1шт.

10

A64908

PISTON

actuator, Replaces A59285

2шт.

11

A60212

O-RING

piston, 1-5/16 x 2-1/8 x 3/32"

4шт.

Part of seal kit P/N A42399

1шт.

12

A60213

RING

seal, piston

4шт.

Part of seal kit P/N A42399

1шт.

13

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

cover seal, 2-7/8 x 3-1/8 x 1/8"

4шт.

Part of seal kit P/N A42399

1шт.

14

A59533

COVER

end

4шт.

15

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8 x 1-3/8" N.C. hex

16шт.

16

92-6

LOCK WASHER,3/8"

16шт.

20

A60217

SEAT

ball, spindle

2шт.

21

A34849

SHIM,.0105" Thk

Ball seat .0105" Thk

1шт.

21

A34390

SHIM,.0329" Thk

Ball seat .0329" Thk

1шт.

21

A34391

SHIM,.0149" Thk

Ball seat .0149" Thk

1шт.

22

211-21

BALL

steel, 1" dia.

1шт.

23

A57658

OIL SEAL

oil, spindle, 3-1/4 x 4-1/4 x 3/8"

1шт.

Part of seal kit P/N A42399

1шт.

24

A60214

SPINDLE steering arm

1шт.

A42399

SEAL

KIT seal, Includes Ref. 4, 11, 12, 13 and 23

1шт.

31

A60208

ACTUATOR

ASSY. steering, Includes Ref. 32 - 51, used prior to tractor ser. no. 8693001

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

33

A60218

COVER

steering actuator

1шт.

34

A60219

SEALING RING

O-RING, 4 x 4-17/64 x 9/64"

1шт.

Part of steering actuator seal kit P/N A42399

1шт.

35

A60216

SNAP RING,#250, Ext

Ring, Snap, , steering actuator #250, Ext

1шт.

36

A60215

WASHER

thrust

1шт.

37

A64506

HOUSING ASSY. steering actuator

1шт.

38

A60210

BUSHING

BISHING top, 2-1/2 x 2-11/16 x 1-23/64"

1шт.

39

A60211

BUSHING

bottom, 3-1/4 x 3-7/16 x 1-5/32"

1шт.

40

A64908

PISTON

steering actuator, Replaces A59285

2шт.

41

A60212

O-RING

1-15/16 x 2-1/8 x 3/32"

4шт.

Part of steering actuator seal kit P/N A42399

1шт.

42

A60213

RING

seal, steering actuator piston

4шт.

Part of steering actuator seal kit P/N A42399

1шт.

43

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

2-7/8 x 3-1/8 x 1/8"

4шт.

Part of steering actuator seal kit P/N A42399

1шт.

44

A59533

COVER

end steering actuator

4шт.

45

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8 x 1-3/8" N.C. hex.

16шт.

46

92-6

LOCK WASHER,3/8"

16шт.

47

A60217

SEAT

ball, steering actuator

2шт.

48

211-21

BALL

steel, 1" dia.

1шт.

49

A34849

SHIM,.0105" Thk

Steering actuator .0105" Thk

1шт.

49

A34390

SHIM,.0329" Thk

Steering actuator .0329" Thk

1шт.

49

A34391

SHIM,.0149" Thk

Steering actuator .0149" Thk

1шт.

50

A57658

OIL SEAL

oil, steering actuator, 3-1/4 x 4-1/4 x 3/8"

1шт.

Part of steering actuator seal kit P/N A42399

1шт.

51

A60214

SPINDLE upper, steering actuator

1шт.

A42399

SEAL

KIT seal, steering actuator, Includes Ref. 34, 41, 42, 43 and 50, used prior to tractor s/n 8693001

1шт.

Выбрано товаров: 58
