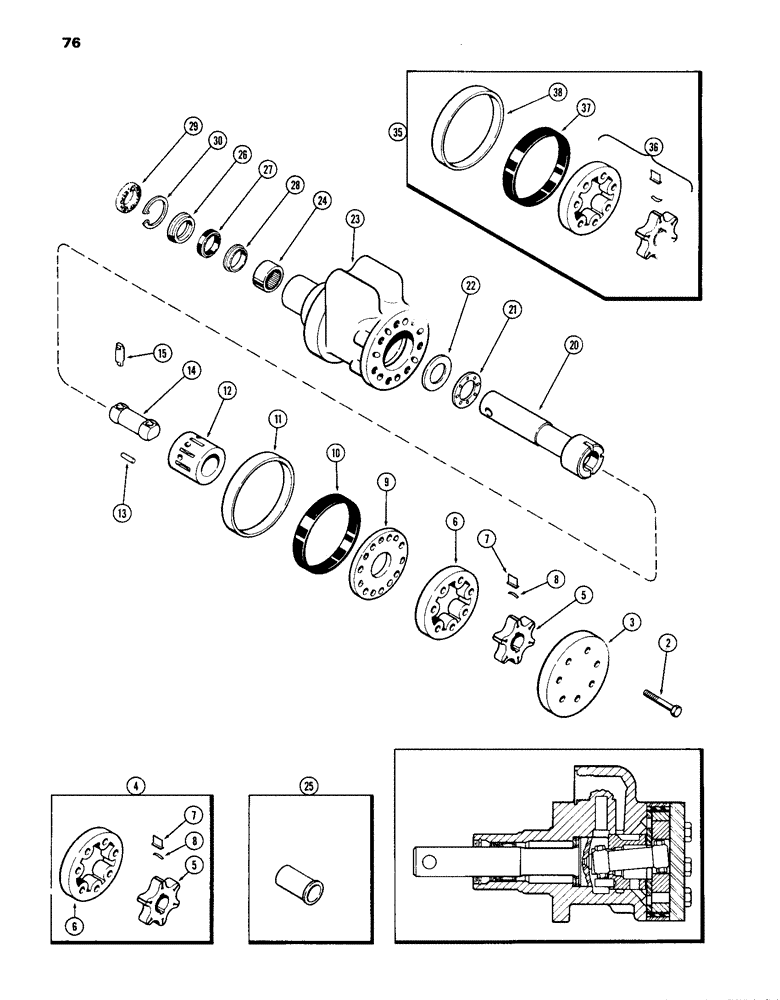

Запчасти Case IH 1070 (076) - STEERING HAND PUMP (05) - STEERING

A60202

PUMP ASSY. steering, hand pump, Includes Ref. 2 - 30

1шт.

2

F19642

BOLT pump end cover

7шт.

3

F19641

COVER pump end

1шт.

4

A43545

ROTOR

SET rotor, pump, Replaces A42214, See Ref. 35, Includes Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR pump

1шт.

6

NSS

NOT SOLD SEPARAT

STATOR pump

1шт.

7

NSS

NOT SOLD SEPARAT

VANE pump rotor

6шт.

8

A42219

SPRING

retainer, pump vane sealing

6шт.

9

A42206

SPACER

pump rotor

1шт.

10

F19640

SEAL

pump rotor

1шт.

11

F19639

RETAINER

seal, pump rotor

1шт.

12

NSS

NOT SOLD SEPARAT

COMMUTATOR pump body

1шт.

13

F19631

PIN

pump commutator

1шт.

14

F19635

LINK

pump drive

1шт.

15

F19636

PIN

pump link

2шт.

20

F12500

SHAFT pump drive

1шт.

21

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING needle thrust, pump shaft

1шт.

22

F19634

BEARING WASHER

RACE bearing thrust, pump shaft

1шт.

23

A42213

BODY pump with needle bearing

1шт.

24

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING needle, pump shaft to body

1шт.

A44582

REPAIR KIT

KIT seal, drive shaft, Replaces A40624, Order A45272, Includes Ref. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER spacer

1шт.

27

NSS

NOT SOLD SEPARAT

RING shaft seal

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

30

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, spacer washer

1шт.

35

A43153

CONVERSION KIT

KIT pump conversion, reduced steering effort, Includes Ref. 36, 37 and 38

1шт.

36

43155

ROTOR ASSY. spring and valve, 7/16" wide rotor

1шт.

37

A43157

SEAL

rotor

1шт.

38

A43156

RETAINER

seal

1шт.
