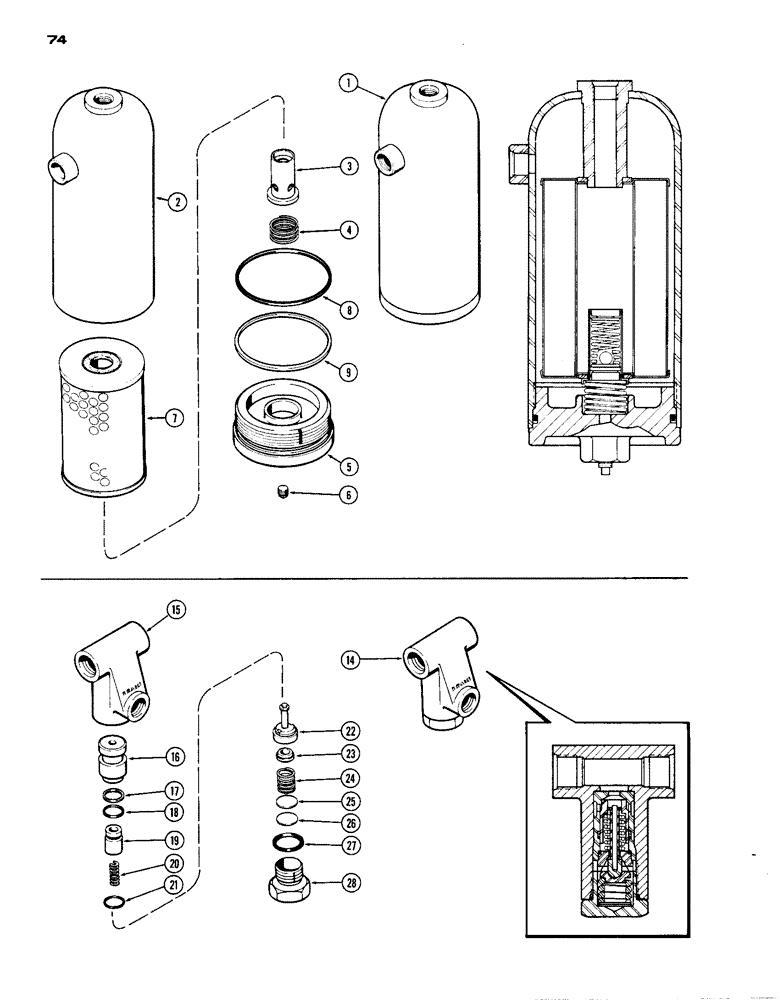

Запчасти Case IH 1070 (074) - G32017 OIL FILTER, STEERING-POWER BRAKE SYSTEM (05) - STEERING

1

G102707

OIL RESERVOIR

FILTER ASSY. steering, power brake system, 25 micron, Replaces A60721and G32017, Includes Ref. 2 - 9

1шт.

2

G32018

HYD TUBE,7.89" L

TUBE oil filter, Replaces A60727

1шт.

3

D37207

VALVE

ASSY. relief, oil filter

1шт.

4

31212

WASHER

SPRING retaining, oil filter

1шт.

5

A60765

CAP

end, oil filter

1шт.

6

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG pipe, 1/8" square head

1шт.

A61234

HYDRAULIC OIL FILTER

KIT filter element, oil, not illustrated, Includes Ref. 7, 8 and 9

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT oil filter, red color code, Order A61234

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

sealing, oil filter cap to body, 4 x 4-1/4 x 1/8"

1шт.

9

D27382

RING

back up, leather, filter, Serial Range: cap-body

1шт.

14

A59905

VALVE

ASSY. steering system relief, Includes Ref. 15 - 28

1шт.

15

NSS

NOT SOLD SEPARAT

BODY relief valve, Order A59905, steering system

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE relief valve, Order A59905, steering system

1шт.

17

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

back up, relief valve sleeve, A59905 steering system

1шт.

Part of steering system relief valve seal kit P/N A42888

1шт.

18

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

relief valve sleeve, 5/8 x 3/4 x 1/16", A59905 steering system

1шт.

Part of steering system relief valve seal kit P/N A42888

1шт.

19

A57553

PISTON

relief valve, A59905 steering system

1шт.

20

A34382

SPRING

pilot piston, 1" free length, A59905 steering system relief valve

1шт.

21

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

pilot piston, 5/8 x 3/4 x 1/16", A59905 steering system relief valve

1шт.

Part of steering system relief valve seal kit P/N A42888

1шт.

22

A57556

PISTON

ASSY. pilot, A59905 steering system relief valve

1шт.

23

A57558

RETAINER

pilot spring, A59905 steering system relief valve

1шт.

24

A34492

SPRING

relief valve, 23/32" free length, A59905 steering system

1шт.

25

A34391

SHIM,.0149" Thk

Relief spring, A59905 steering system valve .0149" Thk

1шт.

26

A34390

SHIM,.0329" Thk

Relief spring, A59905 steering system valve .0329" Thk

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

relief valve plug, 3/4 x 59/64 x 1/8", A59905 steering system

1шт.

Part of steering system relief valve seal kit P/N A42888

1шт.

28

A34392

PLUG

relief valve, A59905 steering system

1шт.

A42888

KIT

seal, steering system relief valve, Includes Ref. 17, 18, 21 and 27, not illustrated, A59905

1шт.
