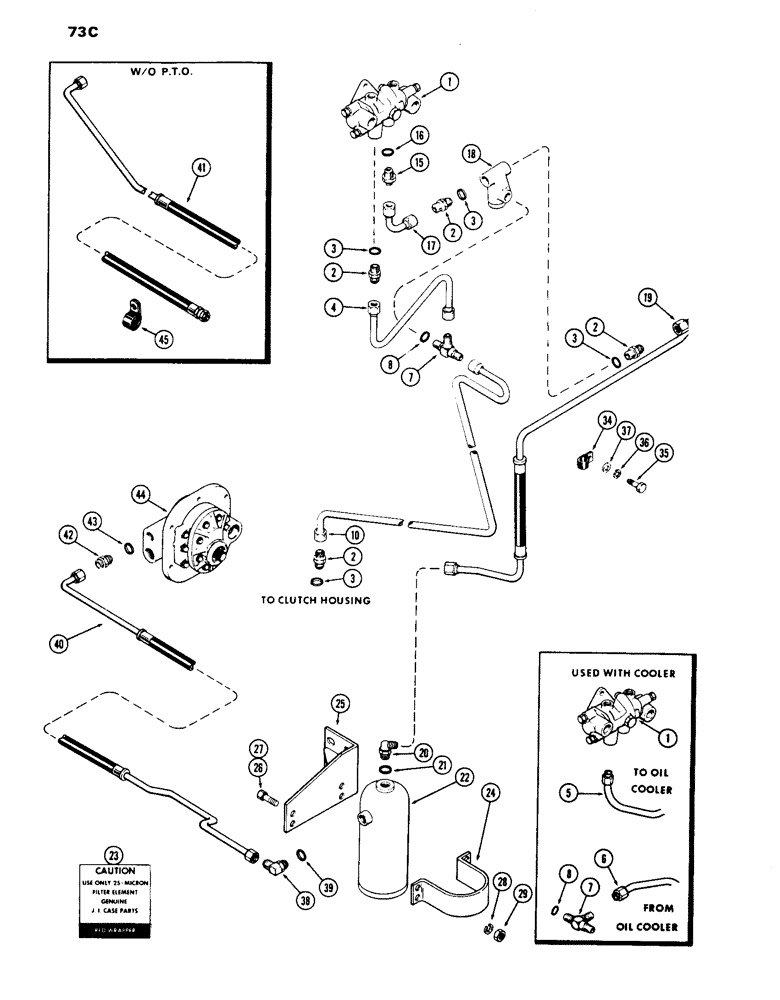

Запчасти Case IH 1070 (073C) - STEERING AND BRAKE VALVE SYSTEM, HYDRAULIC BRAKES WITH MECHANICAL SHIFT 1ST USED TRAC. SN 8675001 (05) - STEERING

1

A60207

VALVE

ASSY, steering, See Figure 079A

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ASSY, 3/4" P.T., 1/2" tube, Incl. Ref 3

4шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

A59928

SPARE PART Return, steering valve to tee, used w/o cooler

1шт.

5

A60402

SPARE PART Upper, cooler to steering valve, used w/ cooler

1шт.

6

A60403

SPARE PART Lower, cooler to tee, used w/ cooler

1шт.

7

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, adjustable, 3/4" P.T., 1/2" tube, Includes Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 5/8 x 3/4 x 3/32"

1шт.

10

A60976

SPARE PART Tee junction to clutch hsg.

1шт.

15

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ASSY, male, Includes Ref. 16

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

A59904

TUBE

Pressure, relief valve to steering valve

1шт.

18

A59905

VALVE

ASSY, steering system relief, See Figure 074

1шт.

19

A62368

TUBE ASSY.

Pressure, filter to steering system relief valve

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, Adjustable, Includes Ref. 21

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

G32017

FILTER

ASSY, steering, power brake system, 25 micron, See Figure 074, Replaces A60721

1шт.

23

321-1763

DECAL

Warning, oil filter, red wrapper

1шт.

24

A60857

SPARE PART Hydraulic oil filter to bracket, Order A65004

1шт.

25

A61781

BRACKET

Mounting, oil filter

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

25-106

NUT,3/8"-16, G5

Hex

4шт.

34

49833

CLAMP

Oil filter, Serial Range: tubes-firewall

1шт.

35

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

36

92-4

LOCK WASHER,1/4"

1шт.

37

95-4

WASHER,1/4"

WASHER, 5/16 x 3/4 x 1/16"

1шт.

38

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, Adjustable, Includes Ref. 38

1шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

40

A62371

TUBE ASSY.

Pump to filter, used w/ PTO

1шт.

41

A62123

SPARE PART Pump to filter, used w/ PTO

1шт.

42

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy, 1/2" tube, Incl. Ref 43

1шт.

43

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

44

REF

INSTRUCTION

PUMP ASSY, hydraulic dual, See Figure 202

1шт.

45

49836

CLAMP

Tube to brake hsg., used w/ A62123 tube

1шт.
