Запчасти Case IH 1070 (073A) - STEERING AND BRAKE VALVE SYSTEM, HYDRAULIC BRAKES WITH POWER SHIFT USED PRIOR TO TRAC. SN 8675001 (05) - STEERING

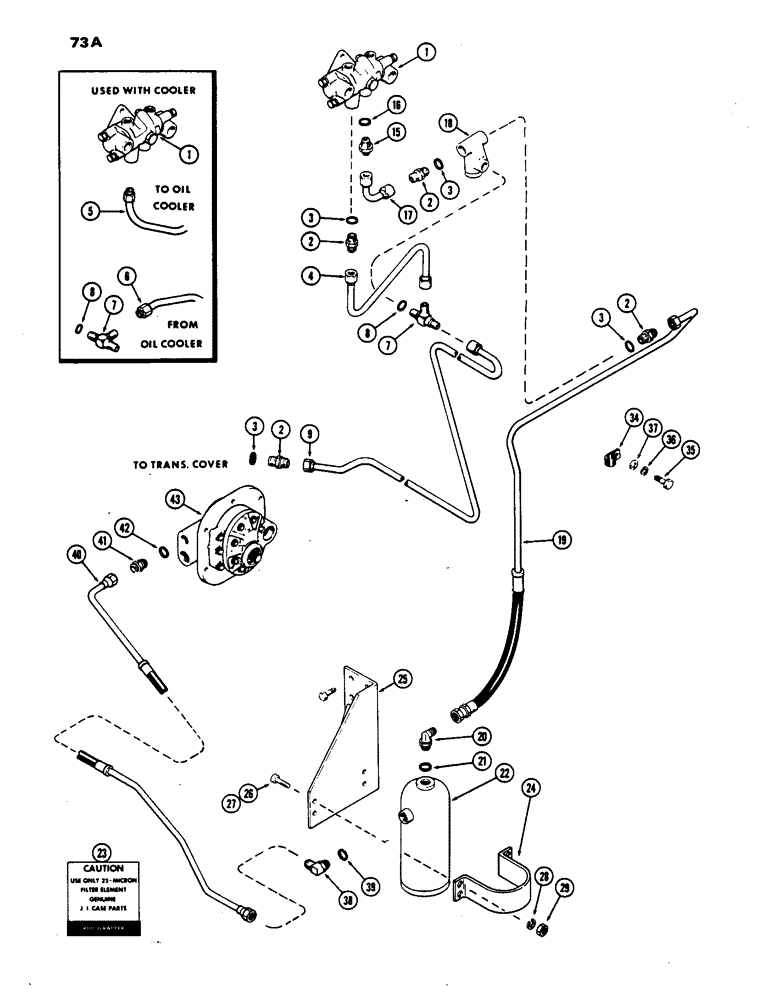

Схема запчастей Case IH 1070 - (073A) - STEERING AND BRAKE VALVE SYSTEM, HYDRAULIC BRAKES WITH POWER SHIFT USED PRIOR TO TRAC. SN 8675001 (05) - STEERING
3
2
7
29
27
39
20
15
35
19
22
5
23
8
16
25
8
43
26
2
2
1
28
4
42
3
7
2
24
6
9
18
1
3
38
36
21
41
37
17
3
40
34

Артикул

Название

Примечание

Количество

1

A60207

VALVE

ASSY, steering, See Figure 079A

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ASSY, 3/8" P.T., 1/2" tube, Incl. Ref 3

4шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

A59928

SPARE PART Return, steering valve to tee, used w/o cooler

1шт.

5

A60402

SPARE PART Upper, cooler to steering valve, used w/ cooler

1шт.

6

A60403

SPARE PART Lower, cooler to tee, used w/ cooler

1шт.

7

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, adjustable, 3/4" P.T., 1/2" tube, Includes Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 5/8 x 3/8 x 3/32"

1шт.

9

A60772

TUBE

Tee junction to trans. cover

1шт.

15

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ASSY, male, Includes Ref. 16

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

A59904

TUBE

Pressure, relief valve to steering valve

1шт.

18

A59905

VALVE

ASSY, steering system relief, See Figure 074

1шт.

19

A59903

SPARE PART Pressure, filter to steering system relief valve

1шт.

20

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, adjustable, Incl. Ref 21

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

G32017

FILTER

ASSY, steering, power valve system, 25 micron, See Figure 074, Replaces A60721

1шт.

23

321-1763

DECAL

Warning, oil filter, red wrapper

1шт.

24

A60857

SPARE PART Hydraulic oil filter to bracket, Order A65004

1шт.

25

A60854

SPARE PART Mounting, oil filter

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

25-106

NUT,3/8"-16, G5

Hex

4шт.

34

49833

CLAMP

Oil filter, Serial Range: tubes-firewall

1шт.

35

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

36

92-4

LOCK WASHER,1/4"

1шт.

37

95-4

WASHER,1/4"

WASHER, 5/16 x 3/4 x 1/16"

1шт.

38

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes Ref. 39

1шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

40

A61860

HOSE

TUBE, Serial Range: pump-filter

1шт.

41

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy, 1/2" tube, Incl. Ref 42

1шт.

42

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

43

REF

INSTRUCTION

PUMP ASSY, hydraulic dual, See Figure 202

1шт.

Выбрано товаров: 34
