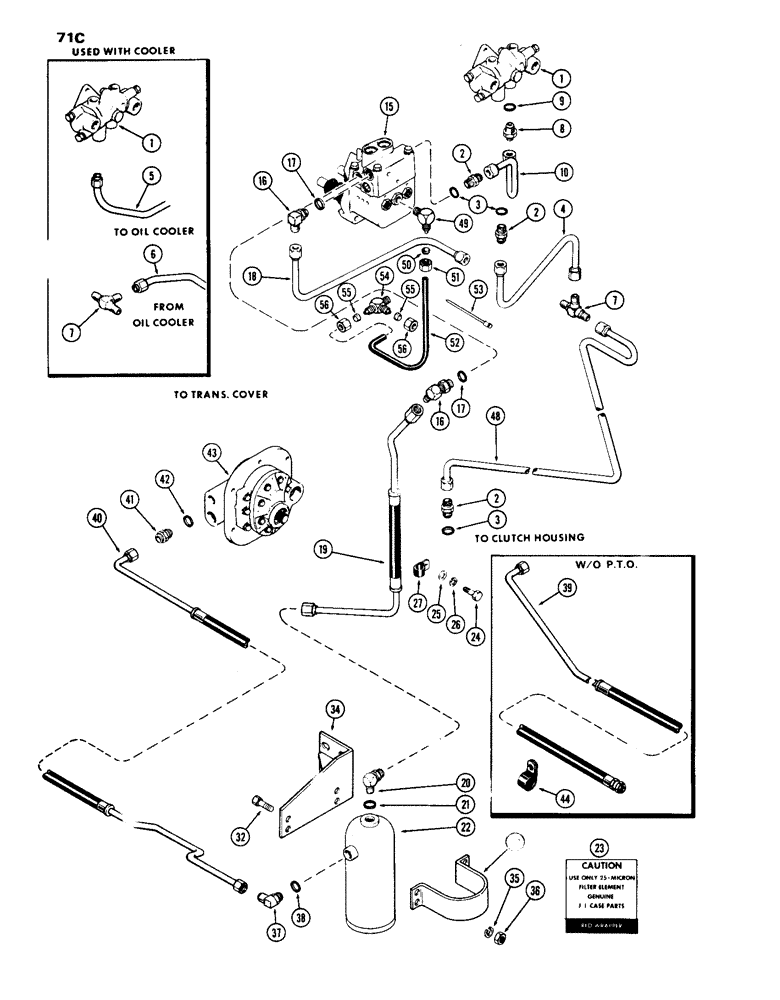

Запчасти Case IH 1070 (071C) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH MECHANICAL SHIFT, 1ST USED TRAC. SER. NO. 8675001 (05) - STEERING

1

A60207

VALVE

ASSY, steering, See Figure 079A

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ASSY, 3/4" P.T., 1/2" tube, Incl. Ref 3

3шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

A59928

SPARE PART Return, steering valve to tee, used w/o cooler

1шт.

5

A60402

SPARE PART Upper, cooler to steering valve, used w/ cooler

1шт.

6

A60403

SPARE PART Lower, cooler to tee, used w/ cooler

1шт.

7

218-594

TEE,3/4"-16, 37 Degree

Junction

1шт.

8

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ASSY, steering valve pressure inlet, Includes Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

A59918

TUBE

Pressure, power brake valve to steering valve

1шт.

15

REF

INSTRUCTION

VALVE ASSY. power brake, See Figure 150

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, Adjustable, Includes Ref. 17

2шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

A59919

SPARE PART Hydraulic return, power brake, Serial Range: valve-tee

1шт.

19

A62370

HOSE

TUBE pressure, filter to power brake valve

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, Adjustable, Includes Ref. 21

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

G32017

FILTER

ASSY, oil, steering and brake system, See Figure 074

1шт.

23

321-1763

DECAL

Warning, oil filter, red wrapper

1шт.

24

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

25

95-4

WASHER,1/4"

WASHER, 5/16 x 3/4 x 1/16"

1шт.

26

92-4

LOCK WASHER,1/4"

1шт.

27

49833

CLAMP

Oil filter, Serial Range: tubes-firewall

1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

33

A60857

SPARE PART Hydraulic oil filter bracket, Order A65004

1шт.

34

A61781

BRACKET

Mounting, oil filter

1шт.

35

92-6

LOCK WASHER,3/8"

4шт.

36

25-106

NUT,3/8"-16, G5

Hex

4шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, Adjustable, Includes Ref. 38

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

39

A62123

SPARE PART Pump to filter, used w/ PTO

1шт.

40

A62371

TUBE ASSY.

Pump to filter, used w/ PTO

1шт.

41

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy, 1/2" tube, Incl. Ref 42

1шт.

42

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

43

REF

INSTRUCTION

PUMP ASSY. hydraulic dual, See Figure 202

1шт.

44

49836

CLAMP

Tube, used w/o PTO

1шт.

48

A60976

SPARE PART Tee junction to clutch hsg

1шт.

49

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY, 1/4" P.T., 3/8" tube, Includes Ref. 50 and 51

1шт.

50

222-5186

SLEEVE,3/8" Tube

1шт.

51

222-5181

NUT,9/16"-24

For 3/8" tube

1шт.

52

A60770

TUBE

Brake valve, pressure relief, to trans. cover, nylon

1шт.

53

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Brake valve to trans. tube

1шт.

54

222-5120

TEE,7/16"-24 x 1/4" NPT Run

ASSY, reducing, 1/4" P.T., 3/8" tube, Includes Ref. 55 and 56

1шт.

55

222-5186

SLEEVE,3/8" Tube

2шт.

56

222-5181

NUT,9/16"-24

For 3/8" tube

2шт.
