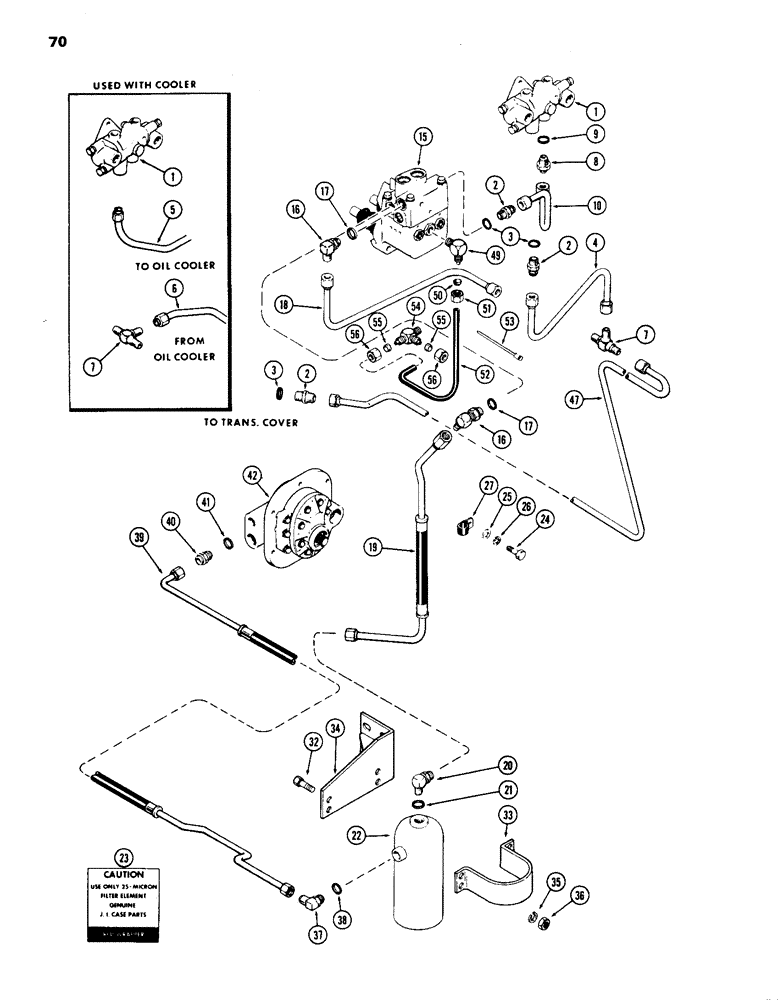

Запчасти Case IH 1070 (070) - STEERING & BRAKE VALVE SYSTEM, POWER BRAKES WITH POWER SHIFT 1ST USED TRAC SN. 8675001 (05) - STEERING

1

A60207

VALVE

ASSY, steering, See Figure 079A

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ASSY, 1/2" tube O.D. x 3/4" P.T., Incl. Ref 3

3шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

A59928

SPARE PART Return, str. valve to tee, used w/o cooler

1шт.

5

A60402

SPARE PART Upper, cooler to steering valve, used w/ cooler

1шт.

6

A60403

SPARE PART Lower, cooler to tee, used w/ cooler

1шт.

7

218-594

TEE,3/4"-16, 37 Degree

Junction, 37 deg. flared tube, 1/2" tube O.D.

1шт.

8

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ASSY, str. valve pressure inlet, Includes Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

A59918

TUBE

Pressure, power brake valve to str. valve

1шт.

15

REF

INSTRUCTION

VALVE ASSY. power brake, See Figure 150

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, Power inlet and sump ports, Includes Ref. 17

2шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

A59919

SPARE PART Hydraulic return, power brake, Serial Range: valve-tee

1шт.

19

A62370

HOSE

TUBE pressure, filter to power brake valve

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, Adjustable, Includes Ref. 21

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

G32017

FILTER

ASSY, oil, steering, power brake system, 25 micron, See Figure 74, Replaces A60721

1шт.

23

321-1763

DECAL

Warning, oil filter, red wrapper

1шт.

24

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

25

95-4

WASHER,1/4"

WASHER, 5/16 x 3/4 x 1/16"

1шт.

26

92-4

LOCK WASHER,1/4"

1шт.

27

49833

CLAMP

Oil filter, Serial Range: tubes-firewall

1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

33

A60857

SPARE PART Hyd. oil filter to bracket, Order A65004

1шт.

34

A61781

BRACKET

Hyd. oil filter, use platform supt. bolts

1шт.

35

92-6

LOCK WASHER,3/8"

4шт.

36

25-106

NUT,3/8"-16, G5

Hex

4шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, Adjustable, Includes Ref. 38

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

39

A62371

TUBE ASSY.

Hyd. pump to hyd. oil filter, Replaces A61079, A60861 and A61860

1шт.

40

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy, pump to tube, Incl. Ref 41

1шт.

41

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

42

REF

INSTRUCTION

PUMP ASSY, hydraulic dual, See Figure 202

1шт.

47

A60772

TUBE

Tee junction to trans. cover

1шт.

49

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY, 90 deg. brake valve pressure relief, Includes Ref. 50 and 51

1шт.

50

222-5186

SLEEVE,3/8" Tube

Nylon

1шт.

51

222-5181

NUT,9/16"-24

For nylon sleeve

1шт.

52

A60770

TUBE

Brake valve pressure relief, to trans. cover, nylon

1шт.

53

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Brake valve to trans. tube

1шт.

54

222-5120

TEE,7/16"-24 x 1/4" NPT Run

ASSY, reducing, trans. cover sump return, Includes Ref. 55 and 56

1шт.

55

222-5186

SLEEVE,3/8" Tube

Nylon

1шт.

56

222-5181

NUT,9/16"-24

For nylon sleeve

1шт.
