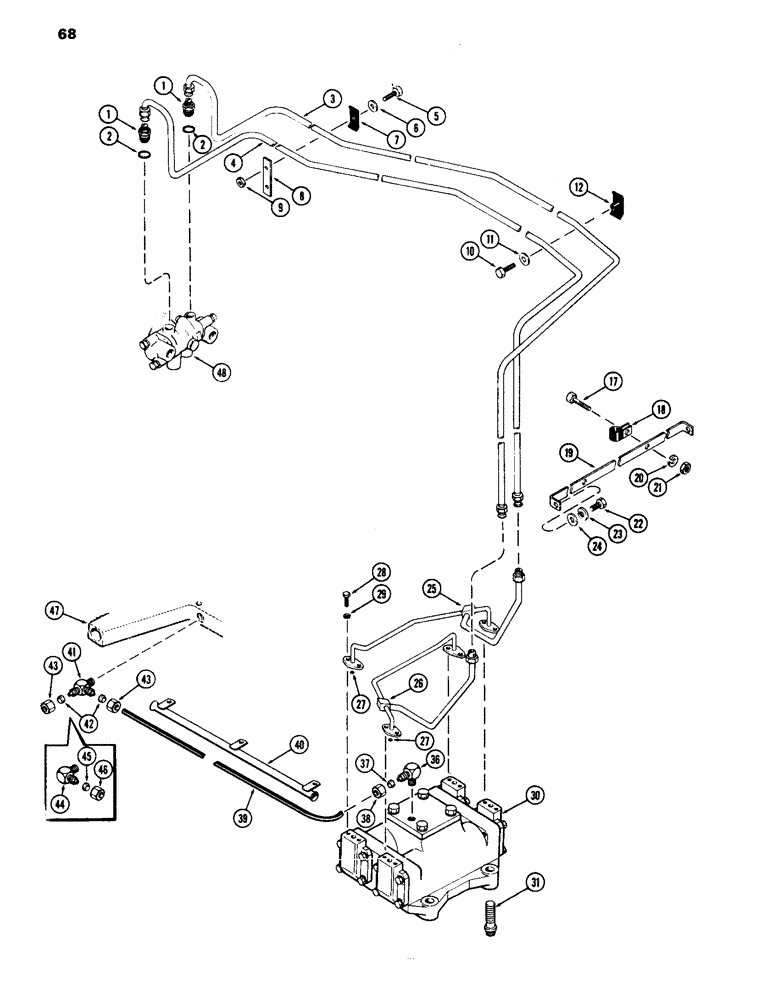

Запчасти Case IH 1070 (068) - HYDROSTATIC STEERING SYSTEM (05) - STEERING

1

A60705

SPARE PART Tube, steering valve to actuator tube, Order (1) A62210 and (1) A29884

1шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

3

A61732

TUBE

Steering valve to actuator, upper, Replaces A60706

1шт.

4

A61733

SPARE PART Steering valve to actuator, lower, Replaces A60707

1шт.

5

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

6

195-18

WASHER,1/4"

(9/32 x 5/8 x 1/16")

1шт.

7

A60224

CLAMP

Mounting, steering actuator and cooler tube

1шт.

8

A60223

SPARE PART Mounting, steering actuator and cooler tube

1шт.

9

25-104

NUT,1/4"-20, G5

1шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

11

195-18

WASHER,1/4"

(9/32 x 5/8 x 1/16")

1шт.

12

A60225

SPARE PART Mounting, actuator tube, 5/8" O.D.

1шт.

17

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Steering tube to support

2шт.

19

A61087

SUPPORT

Steering tube to grille mounting, Replaces A60242

1шт.

20

95-4

WASHER,1/4"

(5/16 x 3/4 x 1/16)

2шт.

21

25-104

NUT,1/4"-20, G5

2шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

WASHER, 1/8 x 5/16 x 1/32"

2шт.

25

A60229

TUBE

Steering, crossover, LH

1шт.

26

A60228

SPARE PART Steering, crossover, RH

1шт.

27

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

4шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

29

92-5

LOCK WASHER,5/16"

8шт.

30

REF

INSTRUCTION

ACTUATOR ASSY, hydrostatic steering, See Figure 078

1шт.

31

A62066

SCREW,Ferry 3/4" - 10 x 2 1/2", Alloy Steel

3/4 x 2-1/2" N.C. ferry cap

4шт.

36

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY, 90 deg. male, steering actuator pressure relief, 3/8" tube O.D. x 1/4" male P.T, Includes Ref. 37 and 38

1шт.

37

222-5186

SLEEVE,3/8" Tube

Nylon

1шт.

38

222-5181

NUT,9/16"-24

For nylon sleeve

1шт.

39

A60771

TUBE

Steering actuator to trans. cover, Nylon

1шт.

40

A59930

TUBE

Protector, steering actuator to trans. cover

1шт.

41

222-5120

TEE,7/16"-24 x 1/4" NPT Run

ASSY, reducing, trans. cover sump return, 3/8" tube O.D. x 1/4" male P.T., used only on tractors with power brakes, Includes Ref. 42 and 43

1шт.

42

222-5186

SLEEVE,3/8" Tube

Nylon

2шт.

43

222-5181

NUT,9/16"-24

For nylon sleeve

2шт.

44

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY, 90 deg. male, trans. cover sump return, 3/8" tube O.D. x 1/4" male P.T., used only on tractor with hydraulic brakes, Includes Ref. 45 and 46

1шт.

45

222-5186

SLEEVE,3/8" Tube

Nylon

1шт.

46

222-5181

NUT,9/16"-24

For nylon sleeve

1шт.

47

REF

INSTRUCTION

COVER ASSY. trans. front top, power shift, See Figure 118

1шт.

47

REF

INSTRUCTION

COVER ASSY. trans. front top, mechanical shift, See Figure 122

1шт.

48

A60207

VALVE

ASSY, steering, See Figure 079A

1шт.
