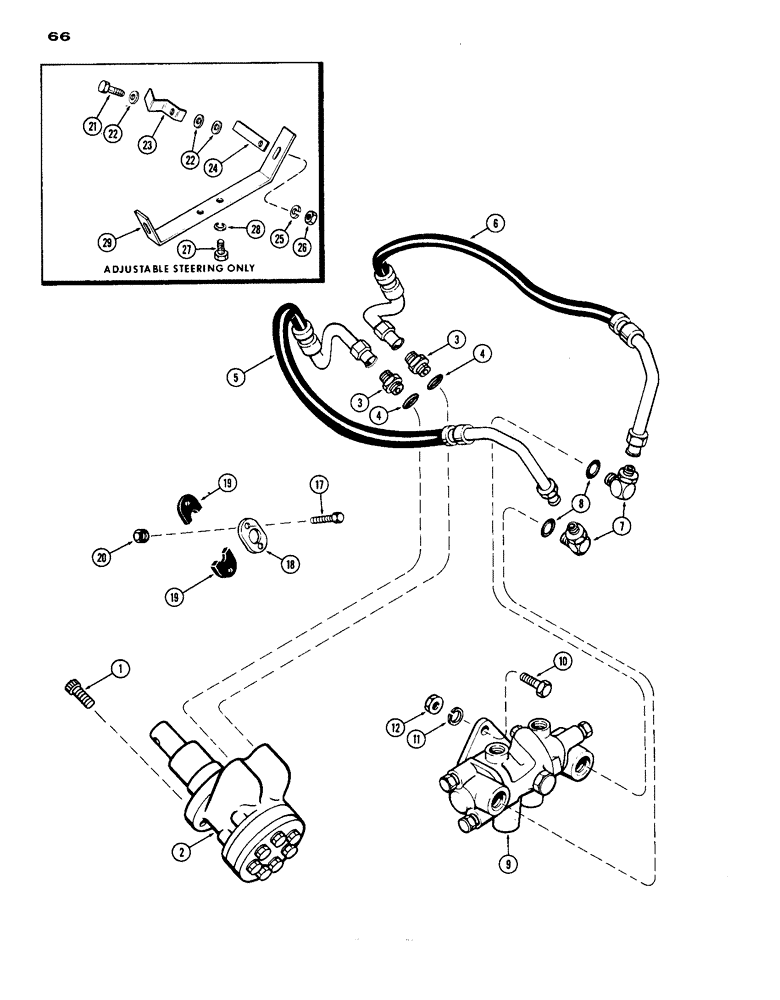

Запчасти Case IH 1070 (066) - HYDROSTATIC STEERING SYSTEM (05) - STEERING

1

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW, 5/16 x 1" N.C. ferry cap

4шт.

2

A60202

PUMP ASSY. hand, steering, See Figure 076

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy, w/ o-ring, hand pump to hose, 1/2" tube O.D. x 3/4", Incl. Ref 4

2шт.

5

A60200

HYD TUBE

HOSE hand pump to valve assy., R.H.

1шт.

6

A60201

HYD TUBE

HOSE hand pump to valve assy., L.H.

1шт.

7

222-1661

ELBOW

ASSY. 90 deg. adjustable, w/ o-ring, Includes Ref. 8

2шт.

9

A60207

VALVE

ASSY. control, hydrostatic steering, See Figure 079A

1шт.

10

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

3шт.

17

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

18

A60206

PLATE steering hose clamp, between bolt head and baffle

2шт.

19

A60205

CLAMP steering hoses, Neoprene

4шт.

20

25-104

NUT,1/4"-20, G5

4шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 1-1/4" N.C. hex.

2шт.

22

195-22

WASHER

3/8 x 3/4 x 1/16"

6шт.

23

A60203

CLAMP tilt steering hoses

2шт.

24

A60204

PLATE back up, tilt steering hoses clamp

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex.

2шт.

27

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

A59245

BAR mounting, tilt steering hoses and clamps

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

1шт.
