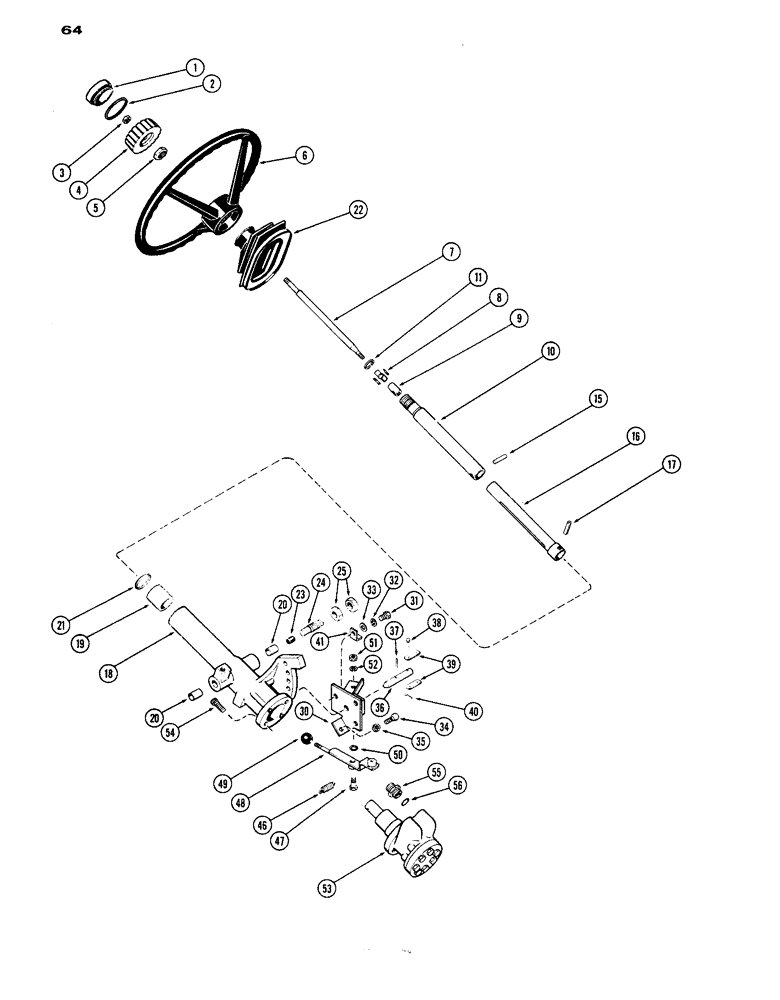

Запчасти Case IH 1070 (064) - ADJUSTABLE STEERING (05) - STEERING

1

A62210

PLUG

CAP steering wheel, w/ o-ring groove

1шт.

1

A61050

CAP

steering wheel, w/o o-ring groove, Order (1) A62210 and (1) A29884

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

21-/8 x 2-3/8 x 1/8", used w/ A62210 cap

1шт.

2

A61290

RING rubber, 2-7/32 x 2-1/2 x 5/32", used w/ A61050 cap

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

hex., lock knob to shaft, 3/8" N.C. jam

1шт.

4

A61293

KNOB

steering wheel lock, Replaces A59839

1шт.

5

A14567

JAM NUT

steering wheel to shaft, 13/16" N.F. thread

1шт.

6

A65544

STEERING WHEEL

(Replaces A61007)

1шт.

7

A61292

SHAFT

lock, telescoping, Replaces A59820

1шт.

8

A61212

WEDGE

lock, telescoping, Replaces A60895

4шт.

9

A59819

NUT

COLLAR lock wedge, 5/16"-18 N.C. tap

1шт.

10

A59812

SHAFT steering, outer

1шт.

11

A60896

RING, SNAP

RING snap, lock wedge retainer

1шт.

15

A59821

PIN

lock, thru inner shaft and guides in outer shaft

1шт.

16

A62182

SHAFT steering, inner, Replaces A59815

1шт.

17

138-173

LOCK PIN,3/8" x 1 3/8", Slotted

PIN, 3/8" x 1 3/8", Slotted

1шт.

A61737

COLUMN ASSY. steering, Replaces A59811, not illustrated, Includes Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

COLUMN steering, Order A61737

1шт.

19

A59808

BEARING

steering column

1шт.

20

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

steering column pivot stud

2шт.

21

A61736

WIPER SEAL

wiper, steering column

1шт.

22

A61910

BOOT

steering column

1шт.

23

A59842

BUMPER

SNUBBER steering column pivot

2шт.

24

A59163

STUD

pivot, steering column, 5/8" N.C. thread

2шт.

25

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex., steering column pivot stud, 5/8" N.C. jam

4шт.

30

A59822

SUPPORT tilt steering plunger

1шт.

31

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

3шт.

32

92-5

LOCK WASHER,5/16"

3шт.

33

95-5

WASHER,3/8" x 7/8" x .083"

3/8 x 7/8 x 5/64'

1шт.

34

113-129

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5, Full Thd

5/16 x 1-1/4" N.C. hex.

1шт.

35

25-145

JAM NUT,Jam, 5/16"-18, G5

5/16" N.C. hex. jam

1шт.

36

A61739

PLUNGER

tilt steering, Replaces A59824

1шт.

37

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Tilt steering plunger stop 1/8" x 1", Slotted

1шт.

38

A59843

PIN tilt steering plunger to lever link

2шт.

39

A59830

LINK tilt steering, Serial Range: plunger-lever

2шт.

40

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

41

A59835

CLIP tilt steering plunger tension spring

1шт.

46

A30707

SPRING

tension tilt strg. plunger, 2-3/16" free length

1шт.

47

A59831

BOLT pivot, tilt steering lever, 5/16" N.C. thread

1шт.

48

A60719

LEVER tilt steering

1шт.

49

A61683

BUTTON

KNOB tilt steering lever, Replaces L16708

1шт.

50

A59832

WASHER spring, 7/16 x 39/64 x 3/64"

1шт.

51

25-145

JAM NUT,Jam, 5/16"-18, G5

5/16" N.C. hex., jam

1шт.

52

92-5

LOCK WASHER,5/16"

1шт.

53

A60202

PUMP ASSY. hand, steering, See Figure 076

1шт.

54

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW, 5/16" x 1" N.C. cap

4шт.

55

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy w/ o-ring, hand pump to hose, 1/2" tube O.D. x 3/4"-16 thread, Incl. Ref 56

2шт.

56

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

1шт.
