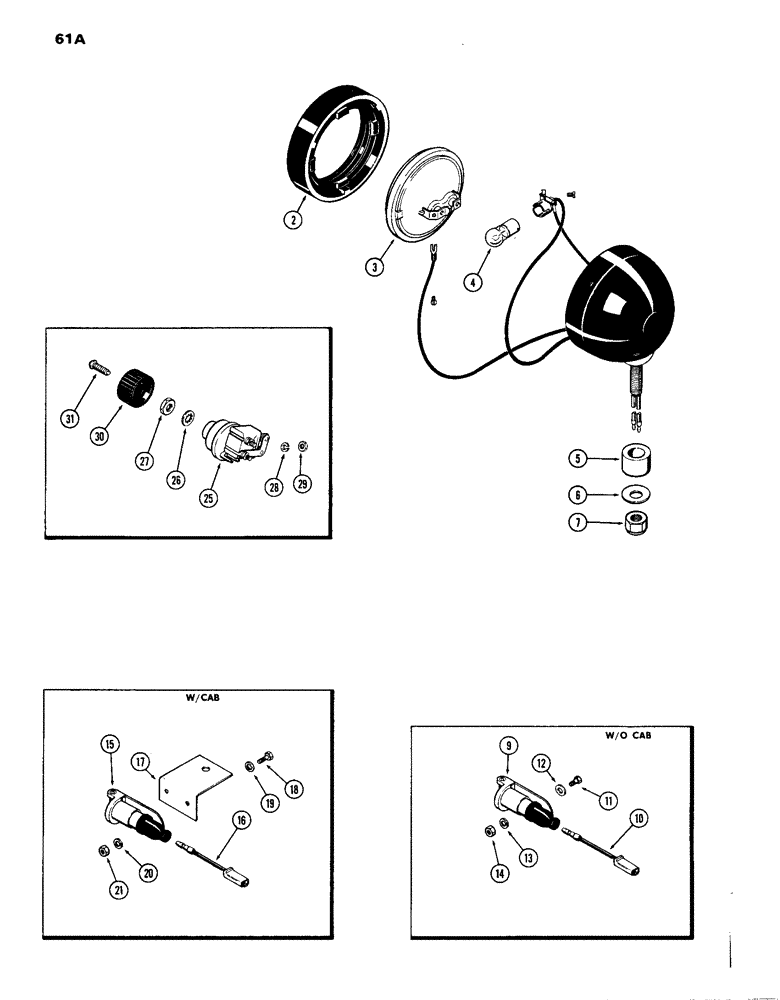

Запчасти Case IH 1070 (061A) - TAIL & WARNING LAMP (04) - ELECTRICAL SYSTEMS

A59703

LAMP

rear flood and tail, Includes Ref. 2 - 5

1шт.

2

A25213

RETAINER

sealed beam

1шт.

3

A42295

BULB

sealed beam

1шт.

4

B50223

BULB

lamp, tail

1шт.

5

D37048

BUSHING

pivot, lamp mounting

1шт.

6

D37049

WASHER

wave, tail lamp mtg.

1шт.

7

129-125

NUT,1/2"-20, G5

1шт.

A60512

SOCKET/RECEPTACLE

ATTACHMENT socket, rear auxiliary outlet, w/o cab, Includes Ref. 9 - 14

1шт.

9

A65059

SOCKET/RECEPTACLE

SOCKET rear auxiliary outlet, Replaces A8170

1шт.

10

A65060

ELECTRICAL WIRE

WIRE auxiliary outlet

1шт.

11

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

socket, no. 10 x 3/4" N.C. hex. mach

2шт.

12

195-513

WASHER,#10

7/32 x 1/8 x 18 ga.

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

14

129-17

NUT,Hex, #10 - 24

NUT, no. 10 N.C. hex

2шт.

A61680

SCREW

ATTACHMENT socket, w/ cab, Includes Ref. 15 - 21

1шт.

15

A65059

SOCKET/RECEPTACLE

SOCKET rear auxiliary outlet, Replaces A8170

1шт.

16

A65060

ELECTRICAL WIRE

WIRE auxiliary outlet

1шт.

17

A61679

BRACKET socket mounting

1шт.

18

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

no. 10 x 3/4" N.C. hex., mach.

2шт.

19

195-513

WASHER,#10

7/32 x 1/2 x 18 ga.

2шт.

20

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

21

129-17

NUT,Hex, #10 - 24

NUT, no. 10 N.C. hex.

2шт.

25

A59694

SWITCH

ASSY. light, Order A64499

1шт.

26

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER shakeproof, 5/8" int., light switch

1шт.

27

A20467

NUT

light switch lock

1шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Light switch #10

2шт.

29

129-37

NUT,#10-32

Light switch #10-32

2шт.

30

A59695

KNOB

light switch

1шт.

31

A59696

SCREW,#8 - 32 x 5/8"

light switch knob

1шт.
