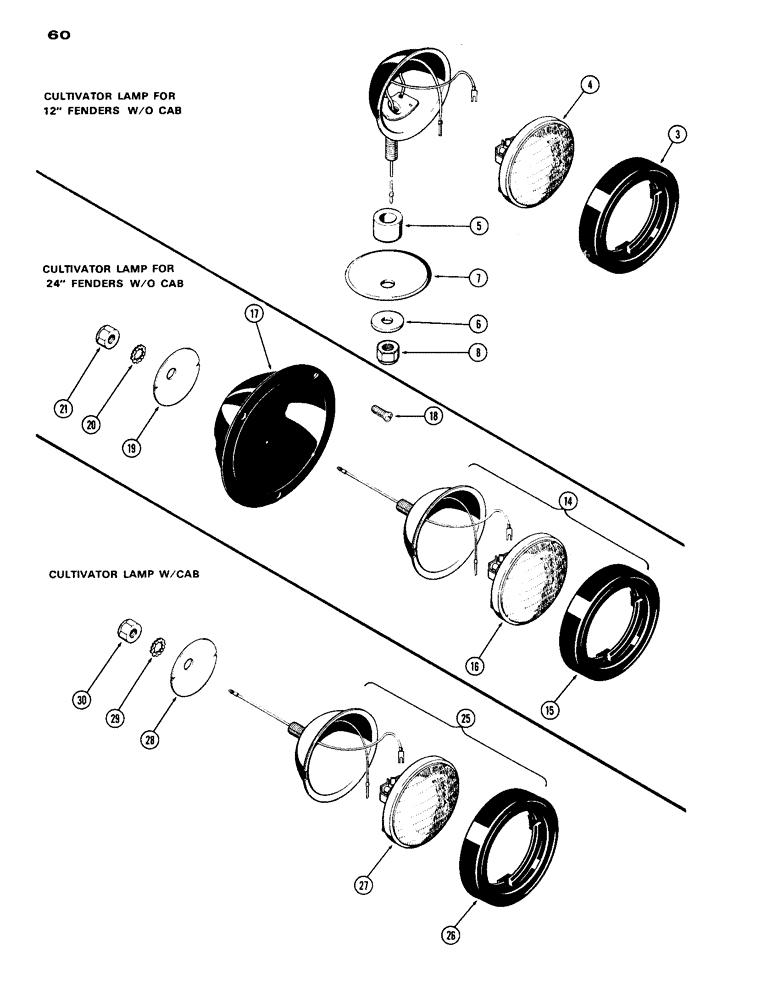

Запчасти Case IH 1070 (060) - LIGHTING EQUIPMENT, CULTIVATING LAMP, FOR 12" FENDER, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

A60510

LAMP

ATTACHMENT lamp, Includes Ref. 3 - 8

1шт.

A59724

HEADLAMP

LAMP front cultivator, Includes Ref. 3, 4 and 5

2шт.

3

A25213

RETAINER

sealed beam

1шт.

4

A42294

SEALED BEAM UNIT

BULB sealed beam

1шт.

5

D37048

BUSHING

lamp pivot

1шт.

6

D37049

WASHER

front cultivator mounting

2шт.

7

A59725

SPACER

BRACE front cultivator

2шт.

8

129-125

NUT,1/2"-20, G5

2шт.

A60511

LAMP

ATTACHMENT lamp, Includes Ref. 14 - 21, for 24" fender w/o cab

1шт.

14

A59723

LAMP

front cultivator, Includes Ref. 15 and 16

2шт.

15

A25213

RETAINER

sealed beam

1шт.

16

A42294

SEALED BEAM UNIT

BULB sealed beam

1шт.

17

A59698

BEZEL

cultivator lamp mtg., R.H.

1шт.

17

A59699

BEZEL

cultivator lamp mtg., L.H.

1шт.

18

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW, no. 10-24 x 1/2" oval hd.

6шт.

19

A59702

RETAINER

front cultivator lamp

2шт.

20

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

A61753

ATTACHMENT

lamp, Includes Ref. 25 - 30, w/ cab

1шт.

25

A59723

LAMP

front cultivator, Includes Ref. 26 and 27

2шт.

26

A25213

RETAINER

sealed beam

1шт.

27

A42294

SEALED BEAM UNIT

BULB sealed beam

1шт.

28

A59702

RETAINER

front cultivator lamp

2шт.

29

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

30

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
