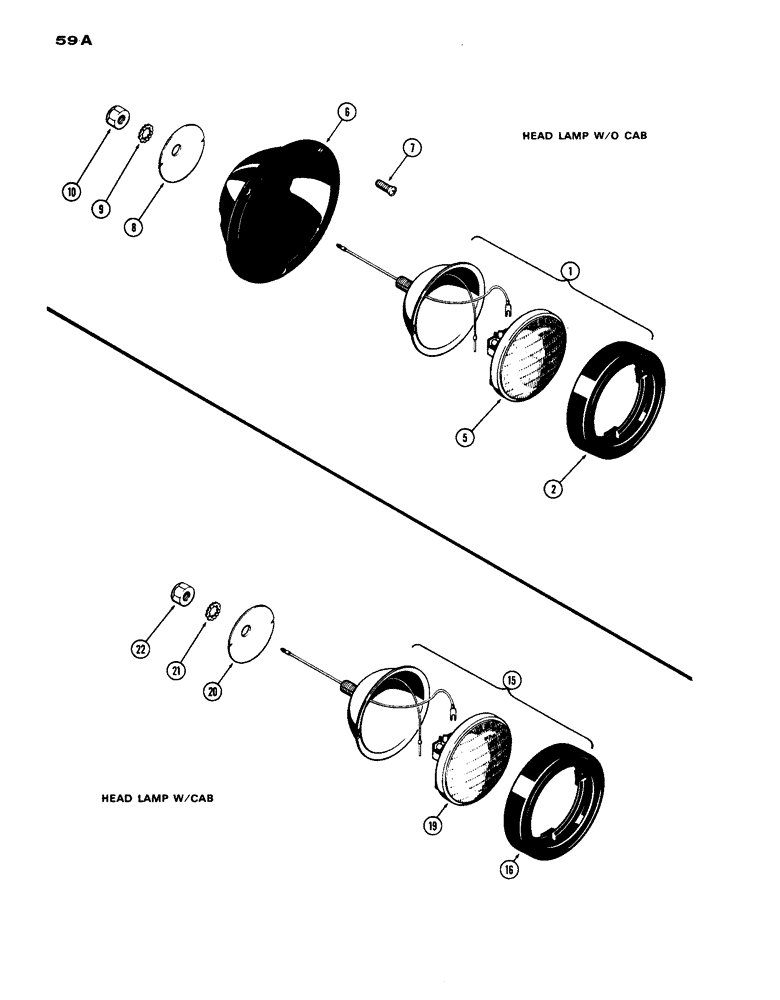

Запчасти Case IH 1070 (059A) - LIGHTING EQUIPMENT, HEAD LAMPS, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

A59701

LAMP

front head driving, Includes Ref. 2 and 5

2шт.

2

A25213

RETAINER

sealed beam

1шт.

5

A24572

LAMP

ASSY. w/ gasket, sealed beam unit

1шт.

6

A59698

BEZEL

front head lamp mtg., R.H.

1шт.

6

A59699

BEZEL

front head lamp mtg., L.H.

1шт.

7

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW, no. 10-24 x 1/2" self tapping

6шт.

8

A59702

RETAINER

front head lamp

2шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

15

A59701

LAMP

front head driving, Includes Ref. 16 and 19

2шт.

16

A25213

RETAINER

sealed beam

1шт.

19

A24572

LAMP

ASSY. w/ gasket, sealed beam unit

1шт.

20

A59702

RETAINER

front head lamp

2шт.

21

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
