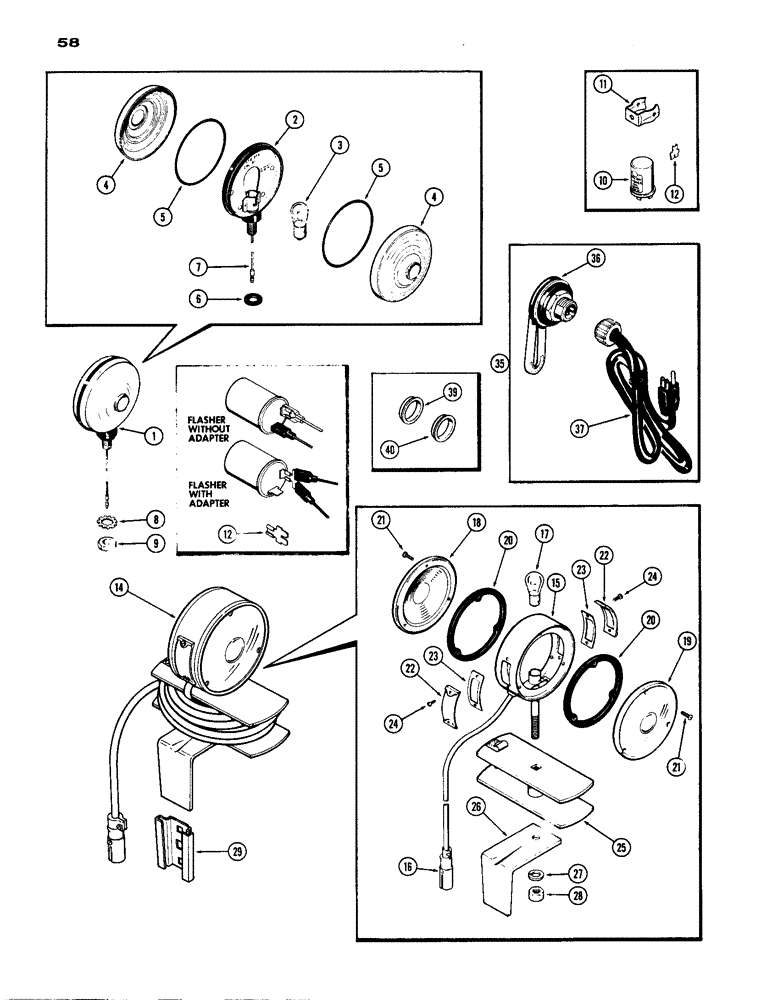

Запчасти Case IH 1070 (058) - ELECTRICAL ATTACHING PARTS, FLASHER ATTACHMENT (04) - ELECTRICAL SYSTEMS

1

A34853

LAMP

flasher, Includes Ref. 2 - 7

2шт.

2

NSS

NOT SOLD SEPARAT

BODY lamp, Order A34853

1шт.

3

A41264

BULB,#1156, 12V

1шт.

4

A41261

LENS

lamp

2шт.

5

NLS

NO LONGER SERVICED

lamp

2шт.

6

A41263

GASKET lamp

1шт.

7

A41260

WIRE lamp

1шт.

8

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

9

129-125

NUT,1/2"-20, G5

1шт.

10

A34867

FLASHER UNIT

FLASHER element, Order A65550

1шт.

11

A34869

BRACKET

flasher element mounting

1шт.

173-217

SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"

5/16 x 3/4" N.C. rd. hd. mach.

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

12

A34862

KIT

adapter, flasher by-pass, required for steady light, See inset

1шт.

A11066M

ATTACHMENT flasher warning lamp, Includes Ref. 14 - 29

1шт.

14

NSS

NOT SOLD SEPARAT

LAMP ASSY., Order A11066M, flasher warning, Includes Ref. 15 - 28

1шт.

15

NSS

NOT SOLD SEPARAT

BODY ASSY., w/ cord, Order A11066M

1шт.

16

B50259

PLUG

to auxiliary socket

1шт.

17

33686

BULB

21 C.P.

1шт.

18

B50337

LENS

lamp, amber

1шт.

19

B53962

LENS

lamp, red

1шт.

20

B50317

GASKET lens

2шт.

21

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

lens, no. 6 x 1/2" N.C., rd. hd.

6шт.

22

B50328

LENS lamp, side, clear

2шт.

23

B50329

GASKET side lens

2шт.

24

182-43

SCREW side lens, no. 6 x 5/16" N.C., rd. hd.

4шт.

25

B50330

SPOOL lamp cord reel

1шт.

26

B50331

BRACKET lamp mounting

1шт.

27

92-7

LOCK WASHER,7/16"

1шт.

28

25-117

NUT,7/16"-20, G5

7/16" N.F. hex.

1шт.

29

A8179

SOCKET

lamp positioning

1шт.

35

A42279

HEATER

ASSY. cylinder block water, Order A44812, Includes Ref. 36 and 37

1шт.

36

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

heater retaining

1шт.

37

A42297

LAMP

CORD electric, w/ plugs

1шт.

A44006

SLEEVE

KIT sleeve, cylinder block heater, Includes Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE heater, 2-1/16" O.D.

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE heater, 2-1/8" O.D.

1шт.
