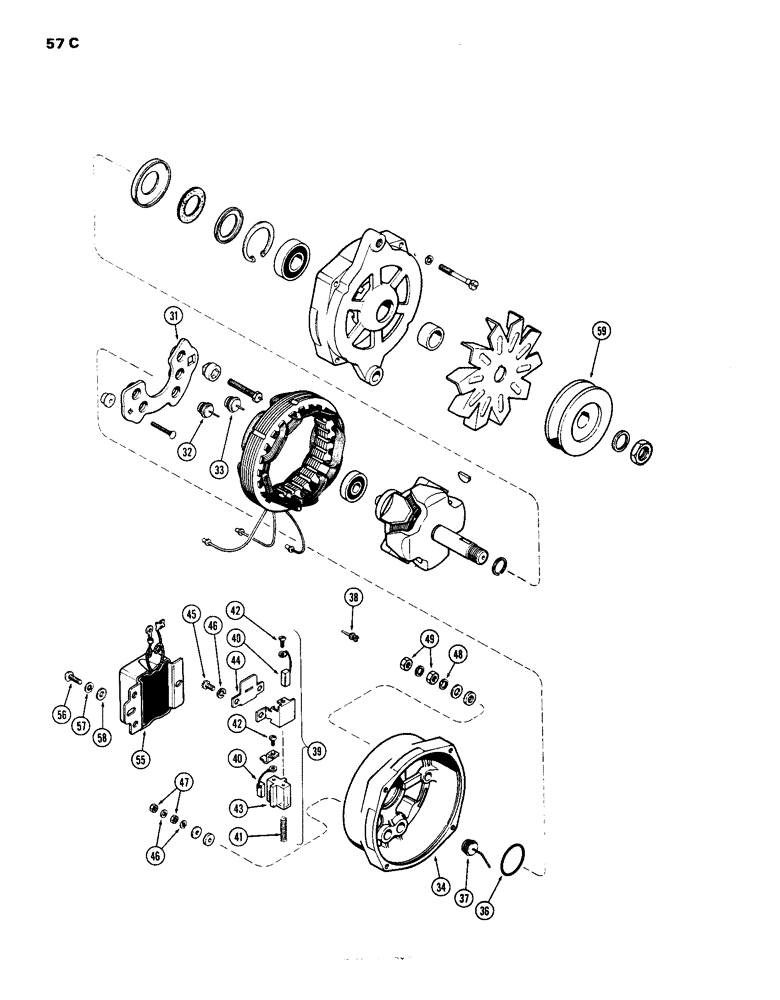

Запчасти Case IH 1070 (057C) - A59761 ALTERNATOR (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A42272
ALTERNATOR ASSY., continued from Figure 057A, Includes Ref. 31 - 49
1шт.
87297244
REMAN-ALTERNATOR
Remanufactured Alternator
1шт.
87297245
CORE-ALTERNATOR
Return Number, Alternator
1шт.
103801A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 61 AMP Alternator
1шт.
103801A1C
CORE-ALTERNATOR
Return Number, 12 VOLT, 61 AMP Alternator
1шт.
A47625
ALTERNATOR
ALTERNATOR - 12 Volt 72 ampere
1шт.
103804A1GV
ALTERNATOR
Value, 12V, 72A
1шт.
103804A1R
REMAN-ALTERNATOR
Reman For New PN A47625
1шт.
103804A1C
CORE-ALTERNATOR
Return number
1шт.
31
A42265
PLATE
SINK heat, diode Order A44349, Includes Ref. 32 and 33
1шт.
32
A41075
DIODE
DIODE positive
3шт.
33
A42261
DIODE
KIT output diode, matched set of 2
1шт.
34
A42264
SPARE PART HEAD ASSY. slip ring end, Includes Ref. 36, 37 and 38
1шт.
36
A41072
O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro
O-RING sealing
1шт.
37
A41071
DIODE
DIODE negative
3шт.
38
A42266
KIT
KIT plugs, set of 10
1шт.
39
A41062
HOLDER
HOLDER ASSY. brush, Order A43952, Includes Ref. 40 - 43
1шт.
40
A41063
BRUSH, COMMUTATOR
BRUSH KIT brush, armature, set of 2
1шт.
41
A41064
VALVE SPRING
KIT spring, brush, set of 2
1шт.
42
NSS
NOT SOLD SEPARAT
SCREW mach., brush retainer
2шт.
43
NSS
NOT SOLD SEPARAT
CLIP brush holder
1шт.
44
A41073
COVER
INSULATION cover, brush holder
1шт.
45
187-1012
SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"
SCREW mach., no. 10-24 x 3/8"
2шт.
46
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
8шт.
47
129-667
NUT,#10-32, LH
NUT, no. 10 N.F. hex., jam
2шт.
48
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
49
131-902
NUT,1/4"-28
NUT, 1/8"-27 hex.
2шт.
55
A42098
VALVE
REGULATOR ASSY. voltage, Order A44543
1шт.
56
NSS
NOT SOLD SEPARAT
SCREW mach., regulator mounting
2шт.
57
NSS
NOT SOLD SEPARAT
WASHER lock
2шт.
58
NSS
NOT SOLD SEPARAT
WASHER plain
2шт.
59
A42267
DRIVE
PULLEY drive, alternator
1шт.
Выбрано товаров: 32
