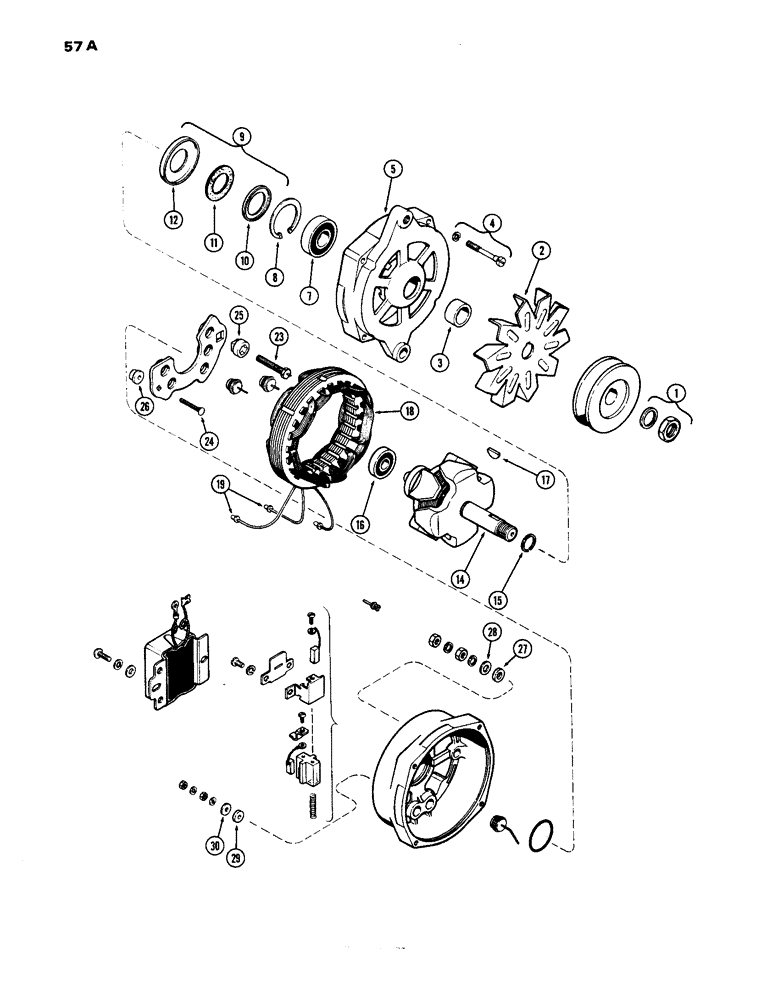

Запчасти Case IH 1070 (057A) - A59761 ALTERNATOR (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A59761
ALTERNATOR
ALTERNATOR ASSY., w/ 1 mtg. foot, Eltra no. ALH-6306-S, production only, Order (1) A42444 alternator, (1) A61063 bracket, (3) 1113-209 bolts, (3) 192-21 washer, (3) 129-103 nuts, (1) A42098 regulator and (1) A42267 pulley
1шт.
A42272
ALTERNATOR ASSY., w/ 1 mtg. foot, Eltra no. ALH-6306-S, Includes Ref. 1 - 30, Order (1) A42444 alternator, (1) A61063 bracket, (3) 1113-209 bolts, (3) 192-21 washer, (3) 129-103 nuts, (1) A42098 regulator and (1) A42267 pulley
1шт.
87297244
REMAN-ALTERNATOR
Remanufactured Alternator
1шт.
87297245
CORE-ALTERNATOR
Return Number
1шт.
103801A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 61 AMP Alternator
1шт.
103801A1C
CORE-ALTERNATOR
Return Number, 12 VOLT, 61 AMP Alternator
1шт.
A47625
ALTERNATOR
Alternator - 12 Volt 72 ampere
1шт.
103804A1GV
ALTERNATOR
Value, 12V, 72A
1шт.
103804A1R
REMAN-ALTERNATOR
Reman For New PN A47625
1шт.
103804A1C
CORE-ALTERNATOR
Return Number
1шт.
1
A40581
KIT
KIT nut and washer, rotor shaft
1шт.
2
A41066
FAN
FAN ventilating
1шт.
3
A41078
BUSHING
SPACER rotor shaft
1шт.
4
A41094
BOLT
KIT bolt, thru, set of 4, w/ washers
1шт.
5
A42262
HEAD
SPARE PART HEAD ASSY. drive end, Includes Ref. 7 - 12
1шт.
7
A42263
BALL
BEARING ball
1шт.
8
NSS
NOT SOLD SEPARAT
RING snap, bearing retainer
1шт.
9
A42268
KIT
KIT retainer, Includes Ref. 10, 11 and 12
1шт.
10
NSS
NOT SOLD SEPARAT
RETAINER seal
1шт.
11
NSS
NOT SOLD SEPARAT
SEAL felt
1шт.
12
NSS
NOT SOLD SEPARAT
RETAINER felt seal
1шт.
14
A42269
SPARE PART
ROTOR ASSY. alternator, Order (1) A45321 and A45323, Includes Ref. 15 and 16
1шт.
15
A25626
RING
RING snap, rotor
1шт.
16
A42270
BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"
BEARING ball, rotor shaft, sealed
1шт.
17
126-112
WOODRUFF KEY,#6, 5/32" x 5/8", HT
WOODRUFF KEY, , Pulley #6, 5/32" x 5/8", HT
1шт.
18
A42271
STATOR
STATOR ASSY. alternator
1шт.
19
A41065
KIT
KIT eyelet, wire end, set of 6
1шт.
A41080
KIT
KIT stud, terminal, Includes Ref. 23 - 30
1шт.
23
NSS
NOT SOLD SEPARAT
STUD battery terminal
1шт.
24
NSS
NOT SOLD SEPARAT
STUD auxiliary terminal
1шт.
25
NSS
NOT SOLD SEPARAT
BUSHING insulation, battery terminal
1шт.
26
NSS
NOT SOLD SEPARAT
BUSHING insulation, auxiliary terminal
1шт.
27
NSS
NOT SOLD SEPARAT
WASHER insulation, battery terminal
1шт.
28
NSS
NOT SOLD SEPARAT
WASHER plain, battery terminal
1шт.
29
NSS
NOT SOLD SEPARAT
WASHER insulating, auxiliary terminal
1шт.
30
NSS
NOT SOLD SEPARAT
WASHER plain, auxiliary terminal
1шт.
Выбрано товаров: 36
