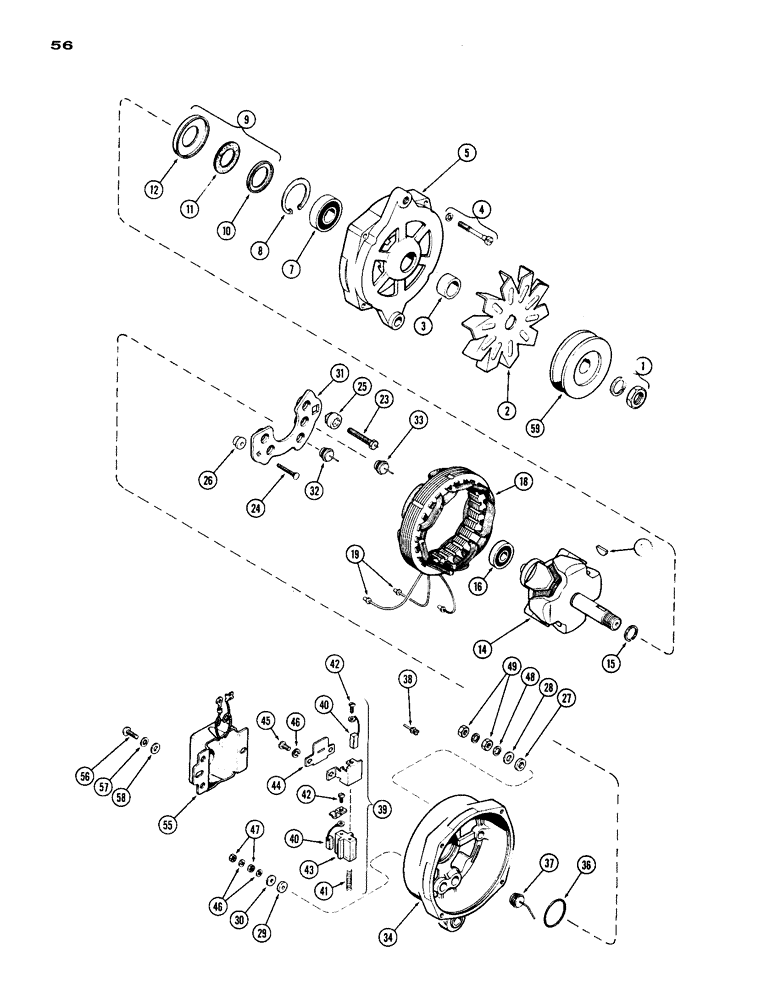

Запчасти Case IH 1070 (056) - A61062 ALTERNATOR (04) - ELECTRICAL SYSTEMS

A61062

SPARE PART ALTERNATOR ASSY., w/ 2 mtg. feet, Eltra no. ALH-5307-S, Order (1) A42444 alternator, (1) A42267 pulley and (1) A42098 regulator, production only

1шт.

A42444

ALTERNATOR

ALTERNATOR ASSY., w/ 2 mtg. feet, Eltra no. ALH-5307-S, less pulley and regulator, repairs only, Order A45304, Includes Ref. 1 - 49

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Number, Alternator

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman For New PN A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A40581

KIT

KIT nut and washer, rotor shaft

1шт.

2

A41066

FAN

FAN ventilating

1шт.

3

A41078

BUSHING

SPACER rotor shaft

1шт.

4

A41094

BOLT

KIT bolt, thru, set of 4, w/ washers

1шт.

5

A42441

HEAD

HEAD ASSY. drive end, Order A44361, Includes Ref. 7 - 12

1шт.

7

A42263

BALL

BEARING ball

1шт.

8

NSS

NOT SOLD SEPARAT

RING snap, bearing retainer

1шт.

9

A42268

KIT

KIT retainer, Includes Ref. 10, 11 and 12

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER seal

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL felt

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER felt seal

1шт.

14

A42269

SPARE PART

ROTOR ASSY. alternator, Order (1) A45321 and (1) A45323, Includes Ref. 15 and 16

1шт.

15

A25626

RING

RING snap, rotor

1шт.

16

A42270

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING ball, rotor shaft, sealed

1шт.

17

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Pulley #6, 5/32" x 5/8", HT

1шт.

18

A42271

STATOR

STATOR ASSY. alternator

1шт.

19

A41065

KIT

KIT eyelet, wire end, set of 6

1шт.

A41080

KIT

KIT stud, terminal, Includes Ref. 23 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

STUD battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

STUD auxiliary terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING insulation, battery terminal

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING insulation, auxiliary terminal

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER insulating, battery terminal

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER plain, battery terminal

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER insulating, auxiliary terminal

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER plain, auxiliary terminal

1шт.

31

A42265

PLATE

SINK heat, diode, Order A44349, Includes Ref. 32 and 33

1шт.

32

A41075

DIODE

DIODE positive

3шт.

33

A42261

DIODE

KIT output diode, matched set of 2

1шт.

34

A42442

COVER

HEAD ASSY. slip ring end, Order (1) A45321 and (1) A45323, Includes Ref. 36, 37 and 38

1шт.

36

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

O-RING sealing

1шт.

37

A41071

DIODE

DIODE negative

3шт.

38

A42266

KIT

KIT plugs, set of 10

1шт.

39

A42495

HOLDER

HOLDER ASSY. brush, Order A43952, Includes Ref. 40 - 43

1шт.

40

A41063

BRUSH, COMMUTATOR

BRUSH KIT brush, armature, set of 2

1шт.

41

A41064

VALVE SPRING

KIT spring, brush, set of 2

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW mach., brush retainer

2шт.

43

NSS

NOT SOLD SEPARAT

CLIP brush holder

1шт.

44

A41073

COVER

INSULATION cover, brush holder

1шт.

45

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW mach., no. 10-24 x 3/8"

2шт.

46

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

47

129-667

NUT,#10-32, LH

NUT, no. 10 N.F. hex., jam

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

49

131-902

NUT,1/4"-28

NUT, hex. 1/4"-28

2шт.

55

A42098

VALVE

REGULATOR ASSY. voltage, Order A44543

1шт.

56

NSS

NOT SOLD SEPARAT

SCREW mach., regulator mounting

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER lock

2шт.

58

NSS

NOT SOLD SEPARAT

WASHER plain

2шт.

59

A42267

DRIVE

PULLEY drive, alternator

1шт.
