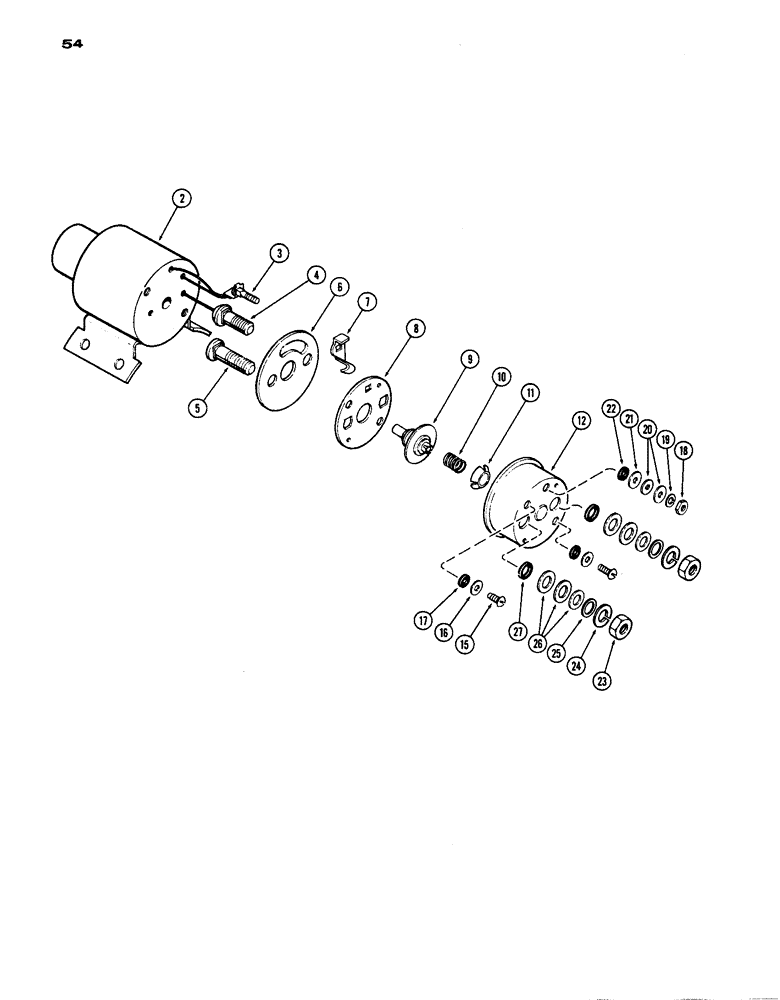

Запчасти Case IH 1070 (054) - SOLENOID, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

A42326

SOLENOID

ASSY., Delco no. 1115518, Order A44817, Includes Ref. 2 - 27

1шт.

2

NSS

NOT SOLD SEPARAT

CASE AND COIL ASSY.

1шт.

3

A42090

TERMINAL CONNECTOR

TERMINAL solenoid switch

1шт.

4

A42383

TERMINAL CONNECTOR

TERMINAL solenoid motor

1шт.

5

A42387

SCREW,3/8" - 16 x 1.46"

TERMINAL solenoid battery

1шт.

6

A42377

GASKET

solenoid cover

1шт.

7

A42384

CLIP

solenoid terminal

1шт.

8

A42386

INSULATOR

solenoid cover

1шт.

9

A42385

CONTACT

solenoid

1шт.

10

A42059

SPRING

contact return

1шт.

11

A42391

INSULATOR

solenoid cover cup

1шт.

12

A42388

COVER

solenoid

1шт.

15

A42380

SCREW,#10 - 32 x 9/16"

cover, no. 10 N.F. Nylock

2шт.

16

A42378

WASHER

3/16 x 1/2 x 1/32"

2шт.

17

A42392

WASHER

rubber, 3/16 x 21/64 x 3/32"

2шт.

18

129-37

NUT,#10-32

1шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

20

R16177

WASHER

3/16 x 1/2 x 3/64"

2шт.

21

A42390

WASHER

3/16 x 1/2 x 1/16"

1шт.

22

A42392

WASHER

rubber, 3/16 x 21/64 x 3/32"

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

R15013

WASHER

25/64 x 11/16 x 1/16"

2шт.

26

A42379

WASHER

25/64 x 3/4 x 1/16"

6шт.

27

A42389

WASHER

rubber, 3/8 x 17/32 x 3/32"

2шт.
